Durr ScanX Computed Radiography System

Durr NDT ScanX Computed Radiography System
The Workhorse of Portable Digital Radiography in NDT

scanx-discover

There are 2 models available:

  • ScanX Discover HR
  • ScanX Discover HC

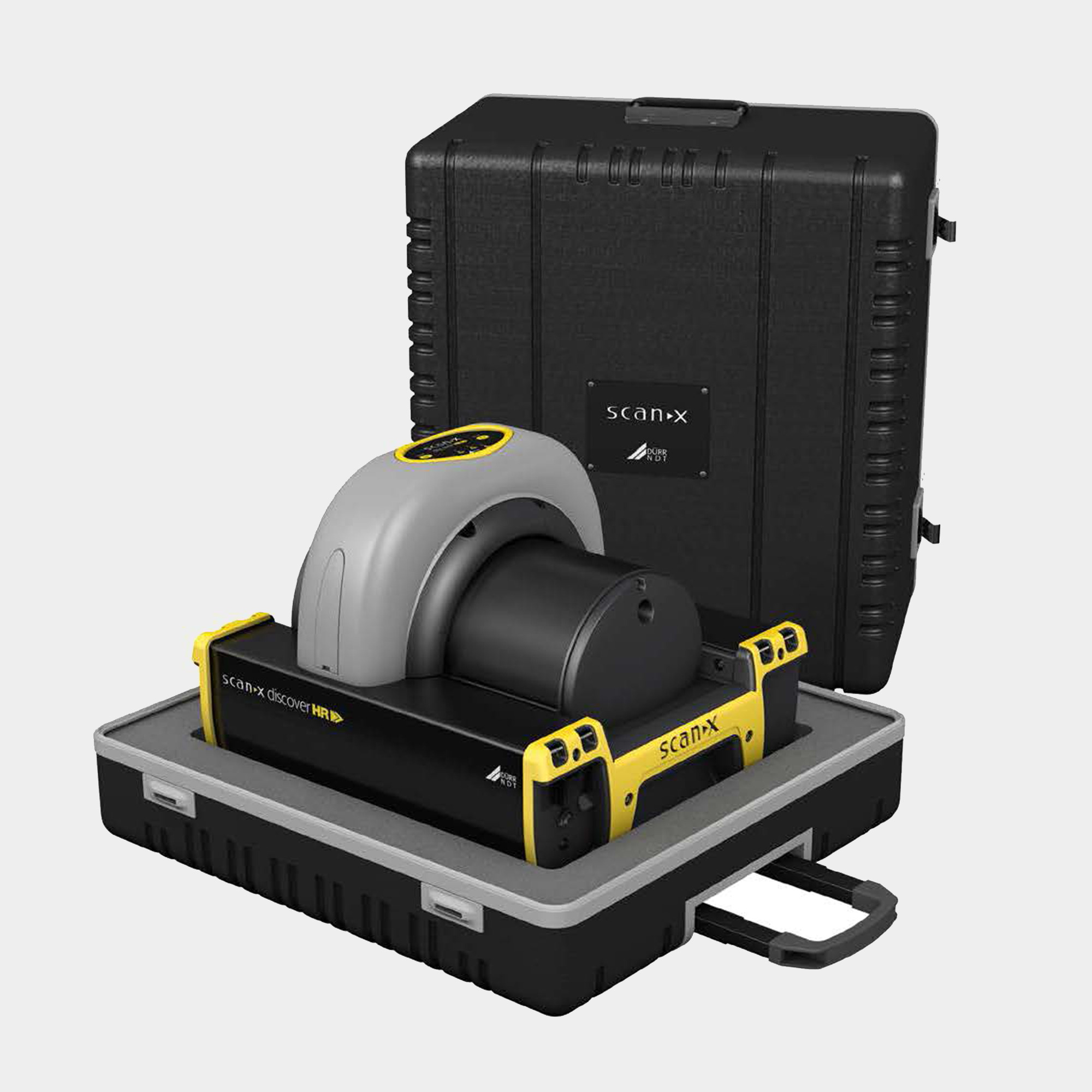

ScanX Discover HR

scanx-discover-hr
The ScanX Discover HR has been certified by BAM as having the highest resolution in the NDT industry with 30 microns per pixel Basic Spatial Resolution. It easily addresses and exceeds the most critical requirements of the Military/Aerospace, Space Hardware and Nuclear markets by producing the highest image resolution.

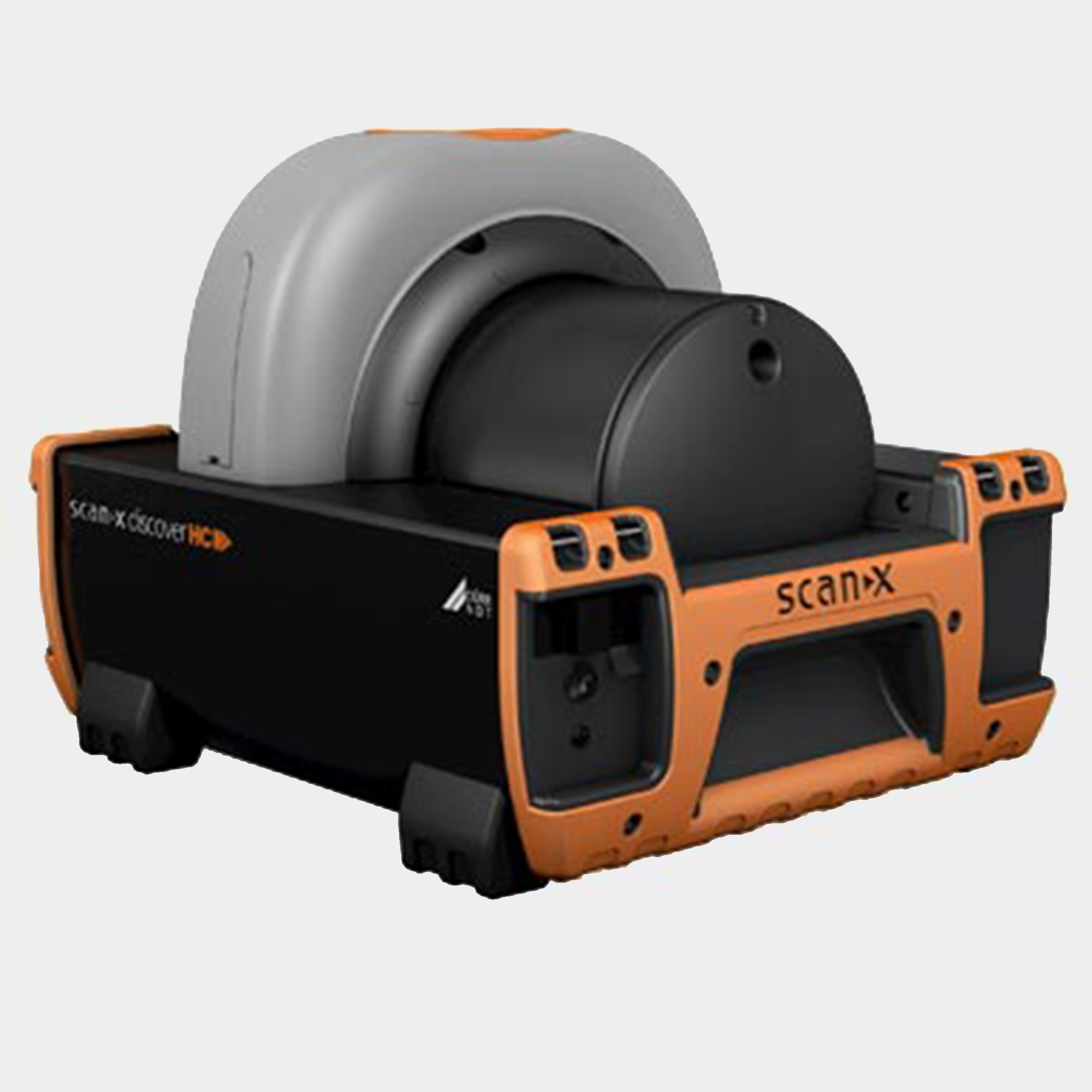

ScanX Discover HC
scanx-discover-hc

The ScanX Discover HC has the features, image quality and versatility to meet the most demanding needs. Its high contrast and adjustable scanner parameters make it ideal for isotope and X-ray applications, providing the image quality you need.



acceptance
Acceptance
Perfect image quality - film like or better

cost-effective
Cost Effective
Significant reduction in consumables
experience
Experience
Technology proven in thousands of units
crystal-clear
Crystal Clear
Precise laser spot for optimum image quality
few-moving-parts
Few Moving Parts
Reliable - minimal maintenance required


Developed to withstand the wear and tear of industrial radiography and weighing just 46 lbs. (21 kg), the ScanX Discover models offer a mobile and extremely rugged solution for demanding NDT environments. The system operates flawlessly even in dirty, damp, hot or cold conditions. Oscillation-damping rubber pads isolate the optical system from vibrations and ensures optimum image quality. A lightweight, extruded aluminum frame protects the scanner from damage. The optional Li-Ion battery pack can power the scanner during scanner, making it independent of a power supply.

Whether used in the field, in a factory setting or in a lab, ScanX Discover delivers outstanding digital images from inspections in just a few seconds. The images have a consistent quality so that results are constantly repeatable time after time, meaning critical decisions can be taken in real time.

The ScanX Discover System is easy-to-use and has intuitive handling. An image is created in 3 steps: Expose the imaging plate, scan it and view it with ScanX View Software. The reusable imaging plates can be used with X-ray or gamma radiation sources and record the image information. By scanning the imaging plate, a digital image is produced on a computer within a few seconds. At the same time, the imaging plate is erased, making it ready for the next exposure.

Features and Benefits:


  • Smooth imaging plate transport
  • Scans imaging plates up to 14" (35 cm) wide and any practical length, including custom shapes and sizes
  • The flexible imaging plates conform to the shape of the object
  • Guides for extra-long imaging plates
  • Works for X-ray and gamma sources including Selenium-75, Iridium-192 and Cobalt-60.
  • Depending on use, imaging plates are reusable hundreds of times
  • Simultaneous scanning of multiple image plates is possible
  • Adjustable settings for optimal dynamic range
  • Automatic and manual erase functions
  • No darkroom needed
  • Neither film nor chemicals are needed, saving on maintenance of developing equipment, film storage and disposal

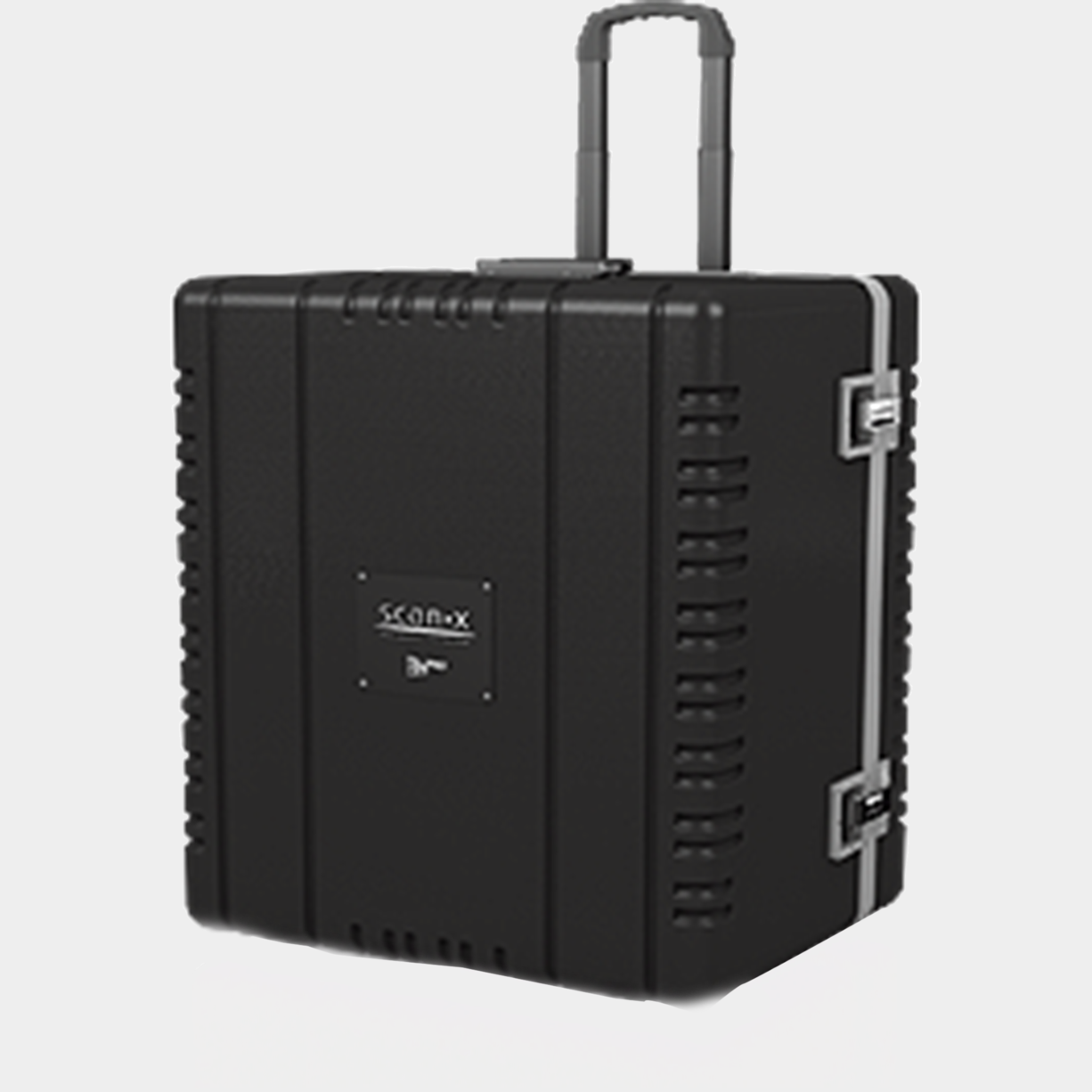

  • Easy to transport in the carrying case
  • Supports the latest industrial standards
  • 30-micron SRb certified by BAM (ScanX Discover HR)

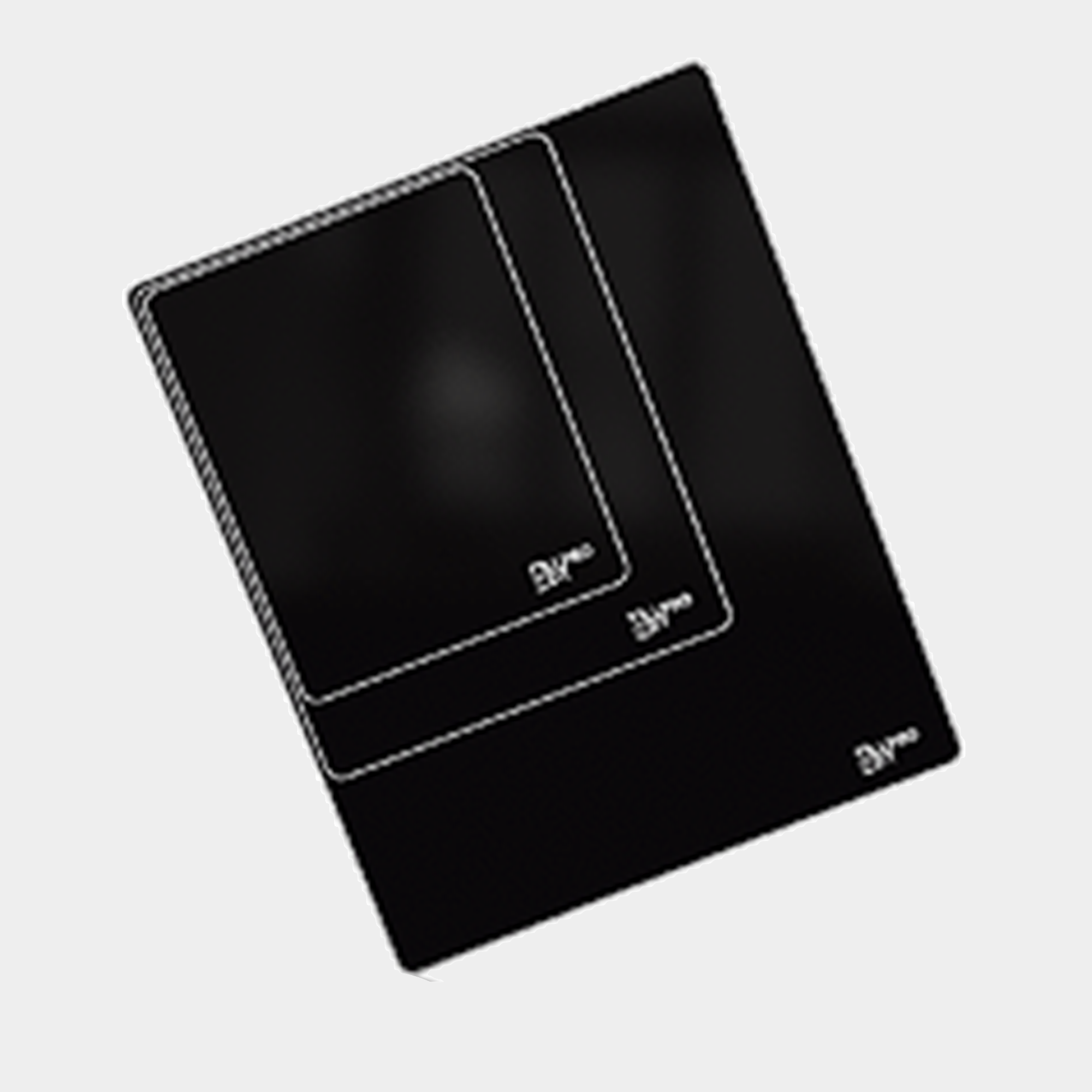

imaging-plates

ScanX View Software
All functions are covered from image capture, analysis and report generation through to export and archiving with database management.

Advantages of ScanX View:


  • Saves time and money when you transfer your data electronically to consultant experts or customers
  • Continuous development of image reviewing tools for all modes
  • Compliance with DICONDE standard ensures the original images will remain accessible over time and the image data is compatible with all conformant systems.
  • Can be learned quickly and easily



wall-thickness-measurements
Wall thickness measurement
This tool makes it possible to measure the thickness of pipe walls and to issue a warning when less than the minimum thickness is detected.
srb-determination
SRb determination
The basic spatial resolution (SRb) can be determined very quickly and extremely accurately with this automatic measuring tool.


calibration
Calibration
Image calibration is precisely and quickly performed using a reference object. Further measurements in the image are based on this calibration.
report
Report
The report function contains information about the image, its origin and all measurements.


Specifications:

Laser Point Spot: 14µm (ScanX Discover HR) / 50µm (ScanX Discover HC)
Grey Level Resolution: 16 bit, 65,536 grey levels
Dimensions: 15.5" x 18" x 14" (39.4 x 45.7 x 35.6 cm)
Weight: 44 lbs. (20 kg) - with battery: 46 lbs. (21 kg)
Power Supply: 110 - 240 VAC, 50 - 60 Hz
Laser Classification: Class 1 Laser Product. Compliance with FDA HHS 21 CFR 1040.10 and IEC 60825-1
Imaging Plates: Phosphor Imaging Plates
Temperature Range: 20°F - 115°F (-7°C - 46°C)
Humidity: 5 - 95% (non-condensing)
Software: ScanX View
Battery (optional): 24 VDC
PC Connection: USB
Accessories: Hard Case, Soft Case, Imaging Plates, Plate Protectors, Cassettes
