PL-10 Magnetizing Coil

The Parker Research PL-10 Portable Magnetizing Coil is designed for use in magnetic particle inspection (MPI) of ferrous metal components. It is used to generate a magnetic field for inspection using either dry powder or wet fluorescent media, and can also be used for demagnetizing parts after inspection.

The coil features a 9 7/8-inch inside diameter and is constructed from durable black polyurethane material for use in industrial and field non-destructive testing (NDT) environments.

This unit includes a foot switch control, a 10-foot power cord, and a sealed electrical connection box with a flat base for vertical positioning. The PL-10 operates on 115 VAC, 60 Hz power and is designed for a 50% duty cycle with thermal overload protection for operational safety.

A plastic carrying case is included for transport and storage.

Available in Canada through Stuart Hunt & Associates, the PL-10 is part of the Parker Research portable MPI equipment lineup.

Features
  • 9 7/8″ inside diameter portable magnetizing coil
  • Compatible with dry powder and wet fluorescent MPI methods
  • Includes foot switch and 10 ft power cord
  • 115VAC operation with thermal overload protection
  • Designed for magnetic particle inspection and demagnetizing applications

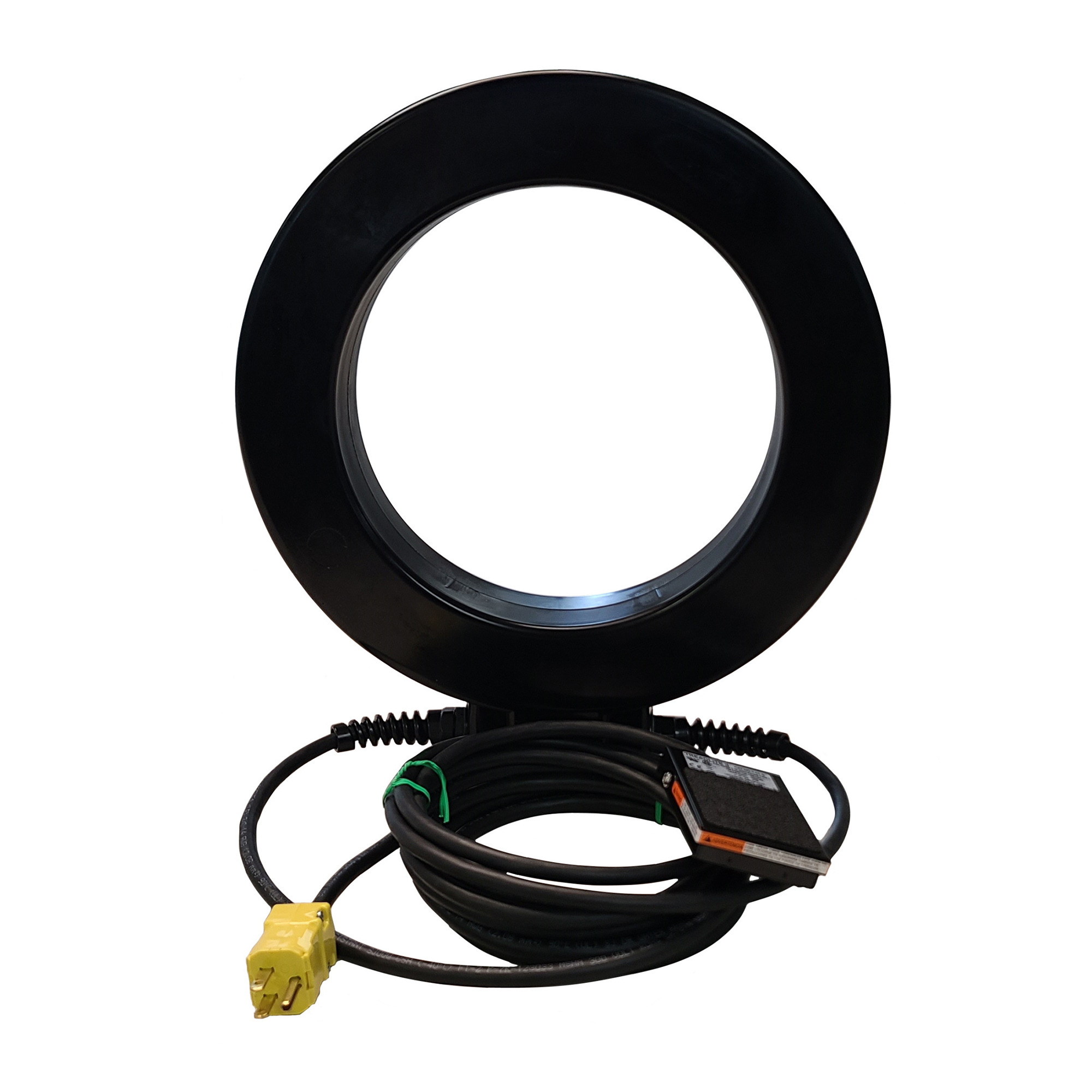

PL-10 Magnetizing Coil foot switch

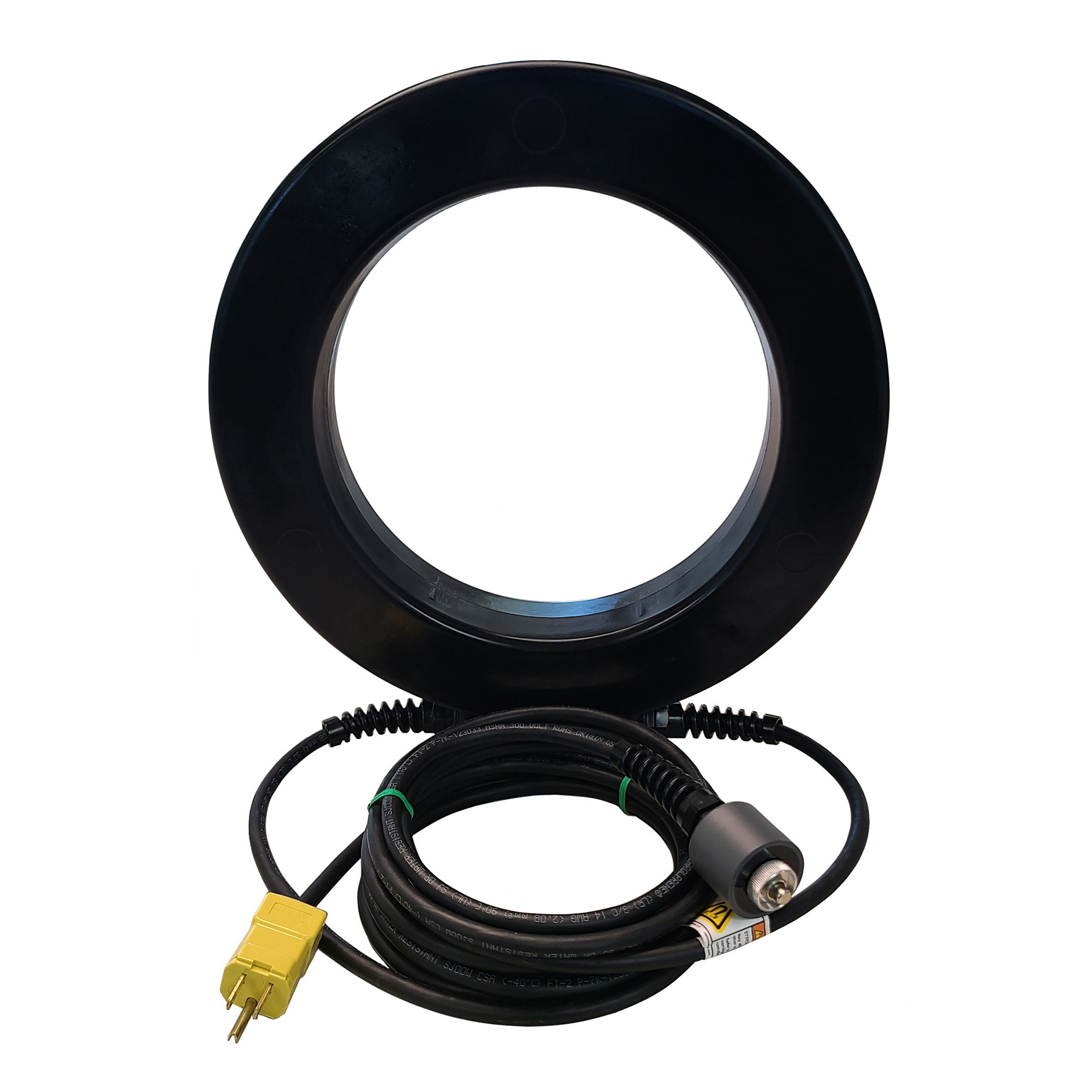

PL-10 Magnetizing Coil hand switch

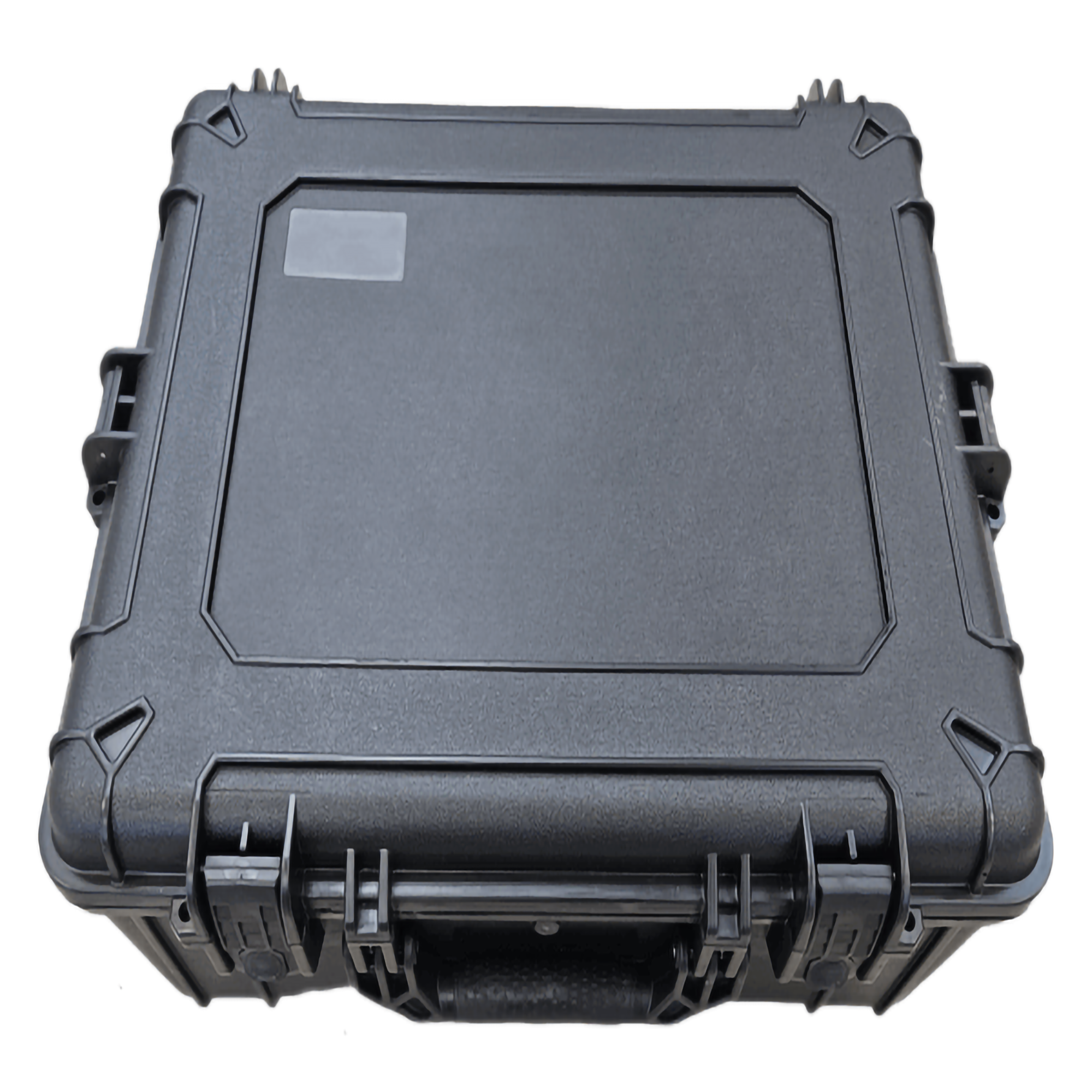

A plastic carrying case is included.

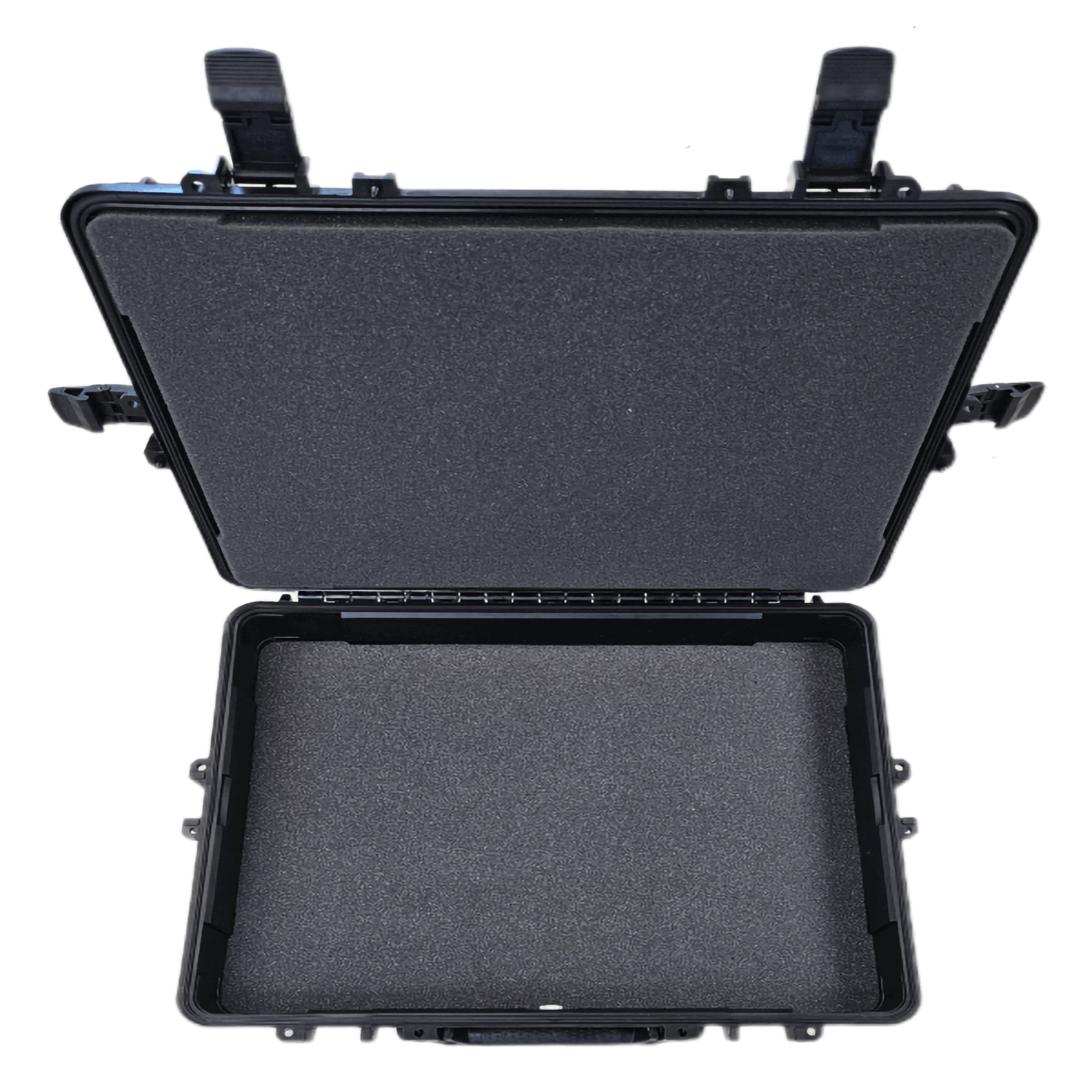

A plastic carrying case is included.
