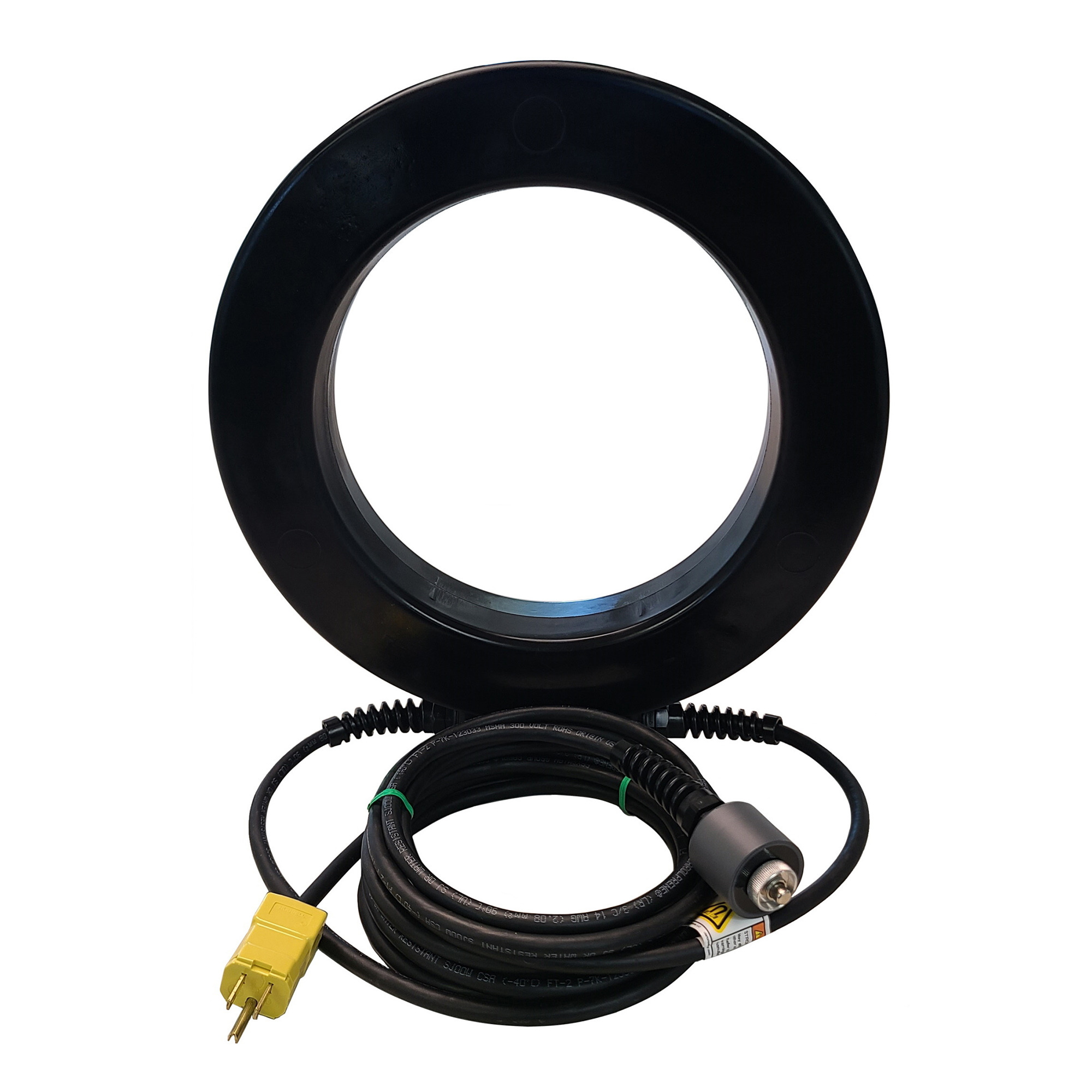

PL-8 Magnetizing Coil

The Parker Research PL-8 Portable Magnetizing Coil is designed for use in magnetic particle inspection (MPI) of ferrous metal components. It is used to generate a magnetic field for inspection using dry powder or wet fluorescent media, and can also be used for demagnetizing parts after inspection.

The coil features an 8-inch inside diameter and is constructed from durable molded black polyurethane for use in industrial and field non-destructive testing (NDT) environments.

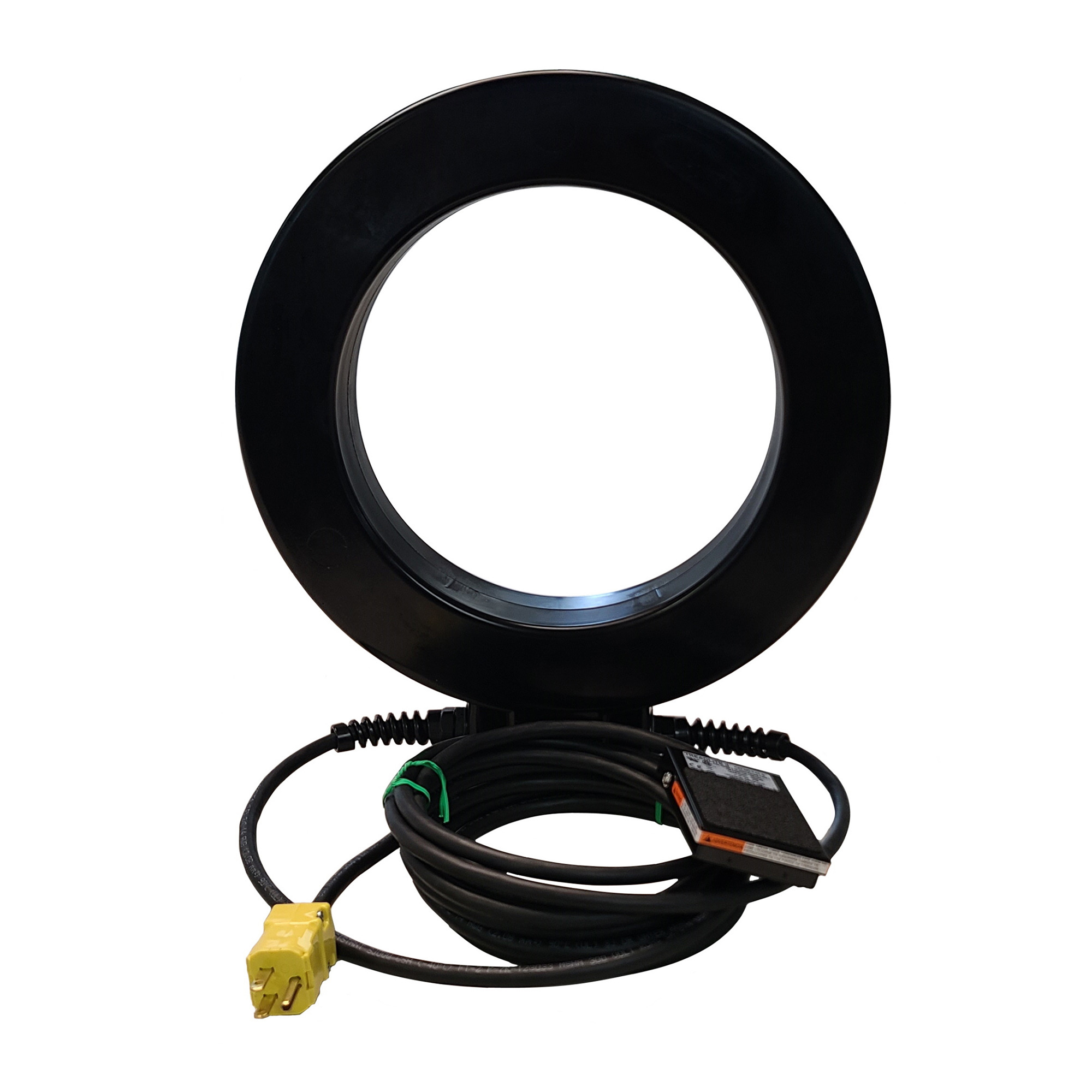

This unit includes a foot switch control (with optional hand switch), a 10-foot power cord, and a sealed electrical connection box with a flat base that allows vertical positioning. The PL-8 operates on 115VAC, 60 Hz power and is designed for a 50% duty cycle with thermal overload protection for operational safety.

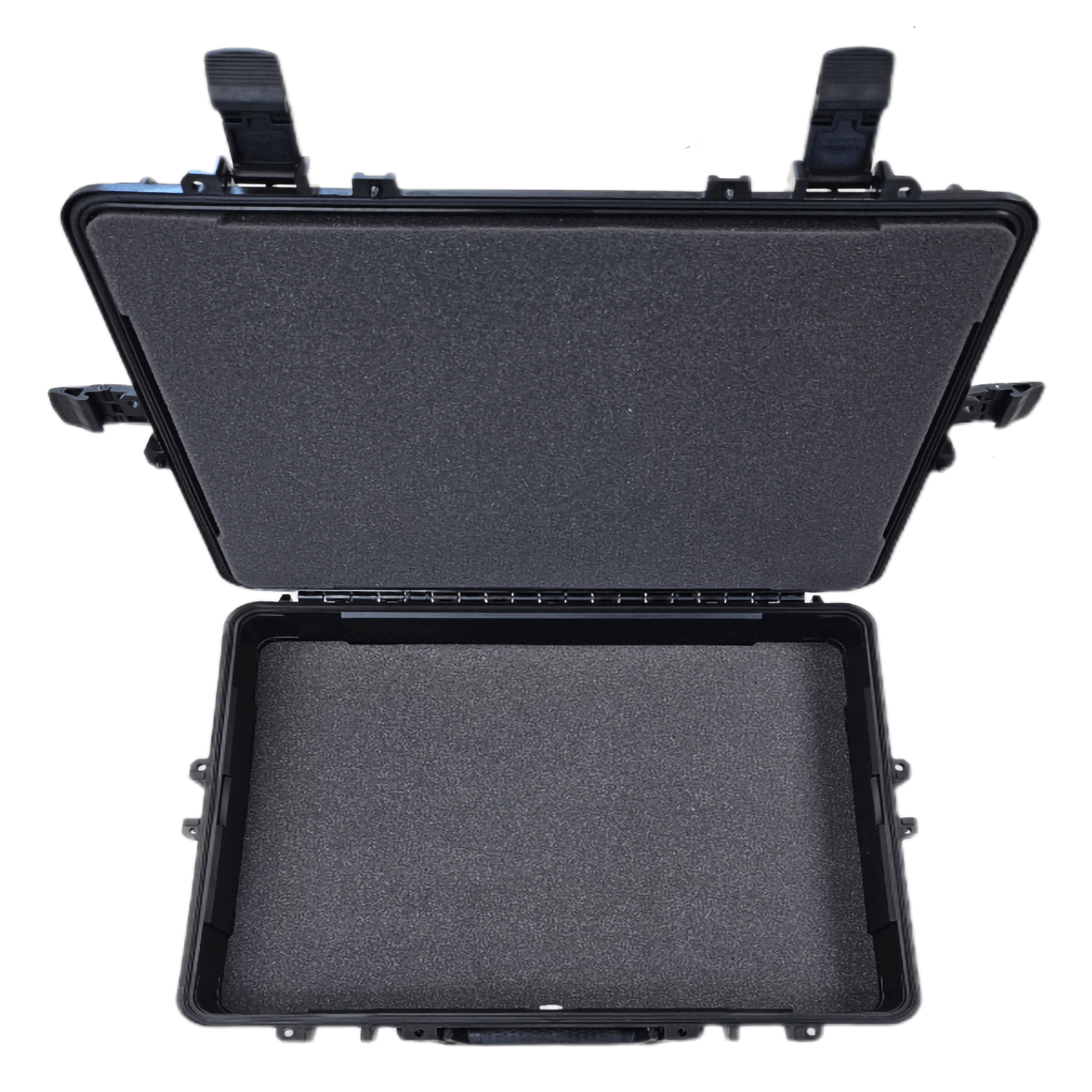

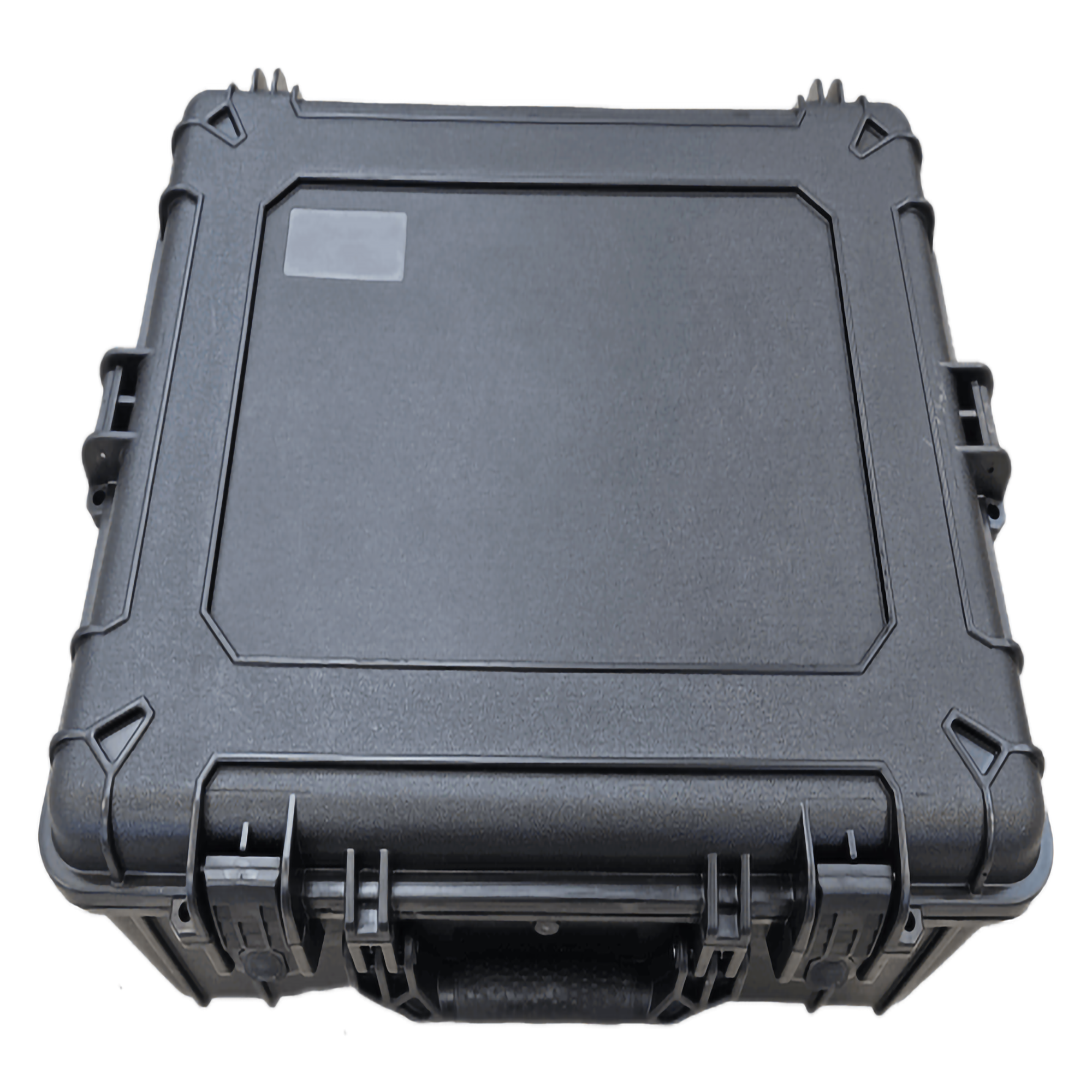

A plastic carrying case is included for transport and storage.

Available in Canada through Stuart Hunt & Associates, the PL-8 is part of the Parker Research portable MPI coil lineup.

Features

• 8″ inside diameter portable magnetizing coil
• Compatible with dry powder and wet fluorescent MPI methods
• 115VAC operation with thermal overload protection
• Includes foot switch and 10 ft power cord
• Designed for magnetic particle inspection and demagnetizing applications

Parts Numbers Parts Numbers 115VAC - Hand Switch 115VAC - Foot Switch

* Quantity

Request a quote
