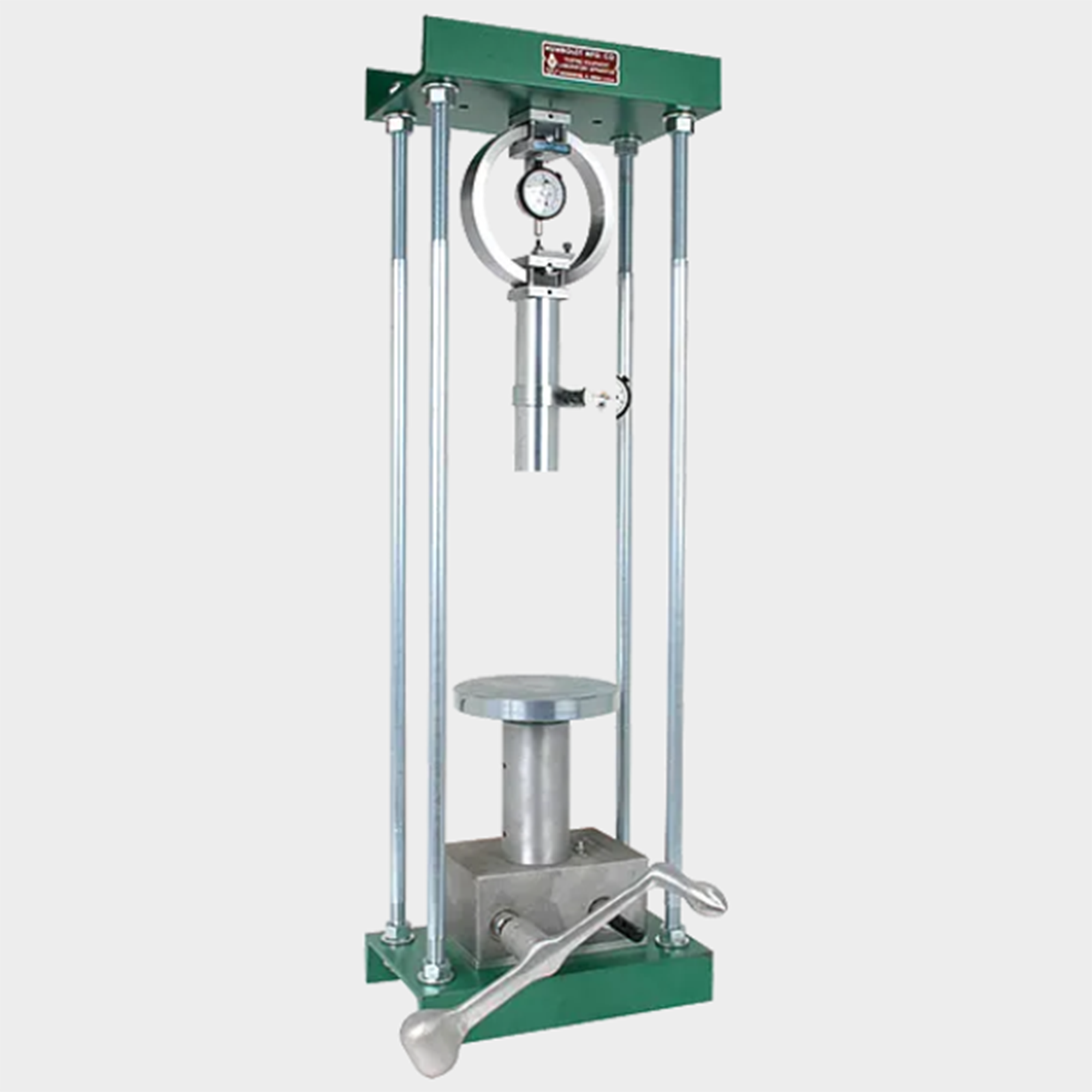

CBR Mechanical Loading Press

Supports the following standards: ASTM D1883, AASHTO T193

The H-4156 loading press (load frame) uses a two-position mechanical jack to provide steady test speeds, as well as rapid travel of the platen for positioning of the sample. Overall dimensions: 18" x 12" x 34" (45.8 x 30.5 x 86.4cm). The following items in the chart below are included for testing CBR.



Specifications
CBR Setup Included with H-4156:
H-4156 :
1 CBR Mechanical Loading Press
H-4454.100:
1 Load Ring with analog dial indicator, 11000lbf, 50.0kN, 5000kgf
H-4158.1:
1 Dial Gauge— Range: 1.000", Division: .001", Dia.: 2.25", Brake: No
H-4178:
1 Penetration Piston
H-4178BR:
1 Dial Indicator Bracket
Download Spec Sheet
H-4156 CBR Mechanical Loading Press

Replacement Parts

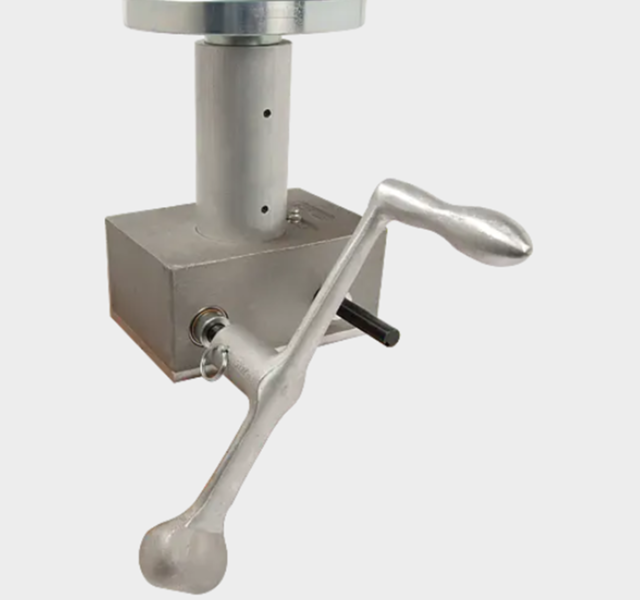

H-4156J Two-Speed Mechanical Replacement Jack
Two-Speed Mechanical Replacement Jack
Request a quote

Related Products

Load Frame, Master Loader, Elite Series, 11000 lbf (50kN)
Load Frame, Master Loader, Elite Series, 11000 lbf (50kN)

Load Frame, Master Loader, Elite Series, 11000 lbf (50kN)

Request a quote
CBR Field Test Set
CBR Field Test Set
Request a quote
H-4156J Two-Speed Mechanical Replacement Jack
Two-Speed Mechanical Replacement Jack
Request a quote

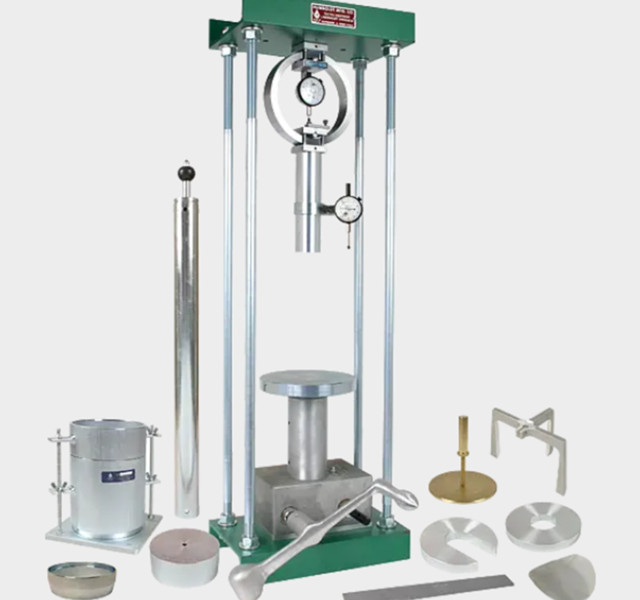

H-4152 CBR Mechanical Test Set
