Consolidation, Fixed-Ring Permeability Cell
Supports the following standards: ASTM D2435, ASTM D3877, ASTM D5333, ASTM D4546, AASHTO: T216, BS: 1377:5

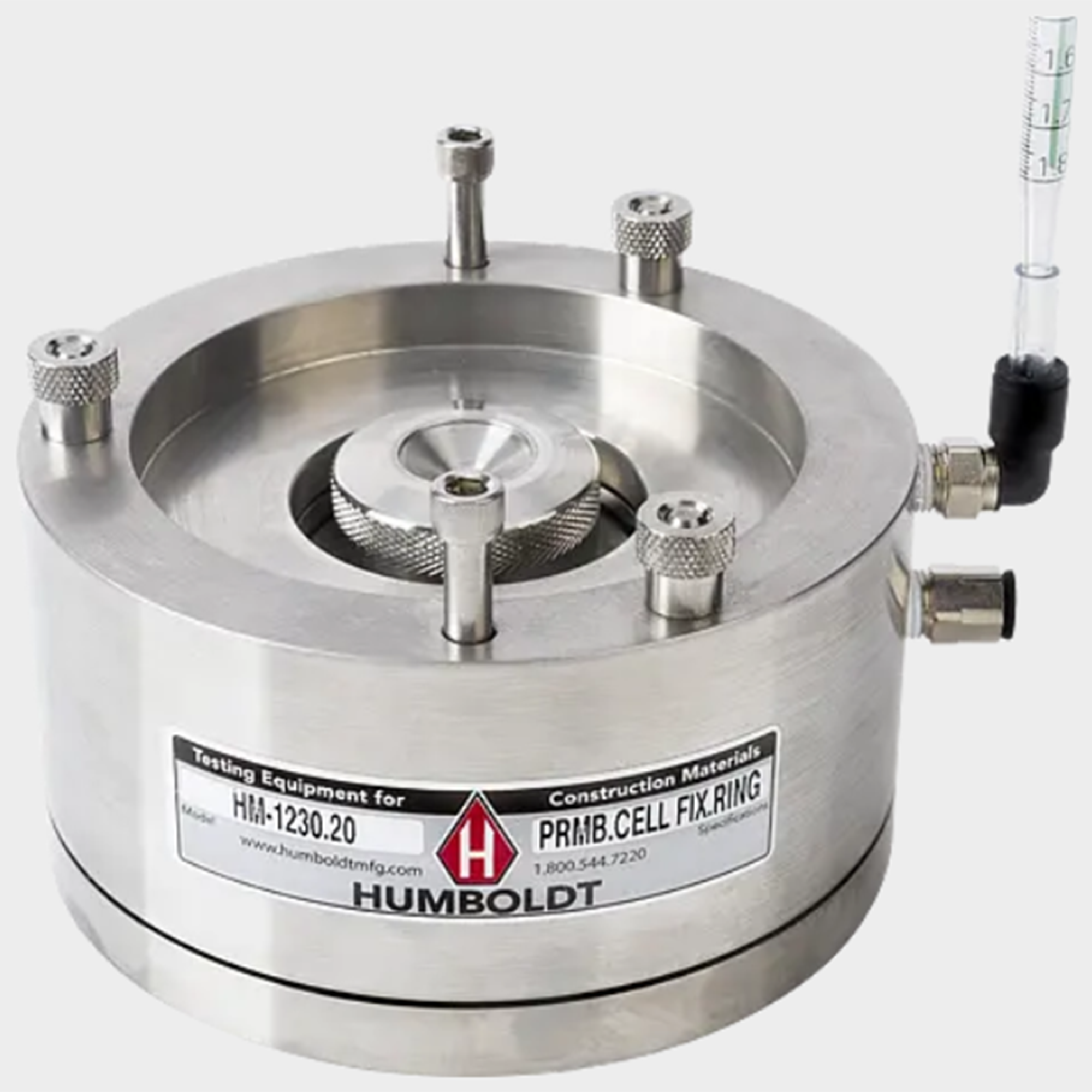

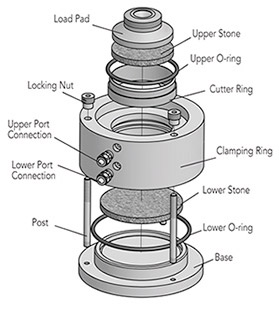

The Consolidation, Fixed-Ring Permeability Cell is similar in construction to a fixed-ring cell with the exception that the saturated sample and water are sealed from the atmosphere. Complete cell assembly features stainless steel construction and self-trimming cutter ring. Base features outlet port and 10cc pipette for monitoring water level. The cell comes complete with a pipette.
Specifications
Fixed Ring Permeability Cell:
2.0":
HM-1230.20
2.42":
HM-1230.242
2.5":
HM-1230.25
3.0":
HM-1230.30
4.0":
HM-1230.40
50mm:
HM-1230.50
70mm :
HM-1230.70
75mm:
HM-1230.75
100mm:
HM-1230.100
