CR Phantom Type I + II
Test Phantom for Qualification of Image Plate Scanner Systems (CR)
CR Phantom enables to test all relevant parameters of CR Scanner systems and Imaging Plates (IP) like Basic Spatial Resolution, MTF, Contrast Sensitivity, Blooming, Laser Jitter, Scanner Slippage, Shading, Erasure and more. These tests required and described in detail in standards ASTM E2445 and ISO 16371-1 have to be performed periodically for checking process control and long-term-stability.
The KOWOTEST CR Phantom type I exceed these standards by including two Duplex Wire Type IQIs and measuring points for Shading in both axes – portrait and landscape. All required information is mapped on the Imaging Plate with a single X-ray exposure. Phantom must not be rotated to generate information of second axis. This results in higher accuracy and significant time savings.

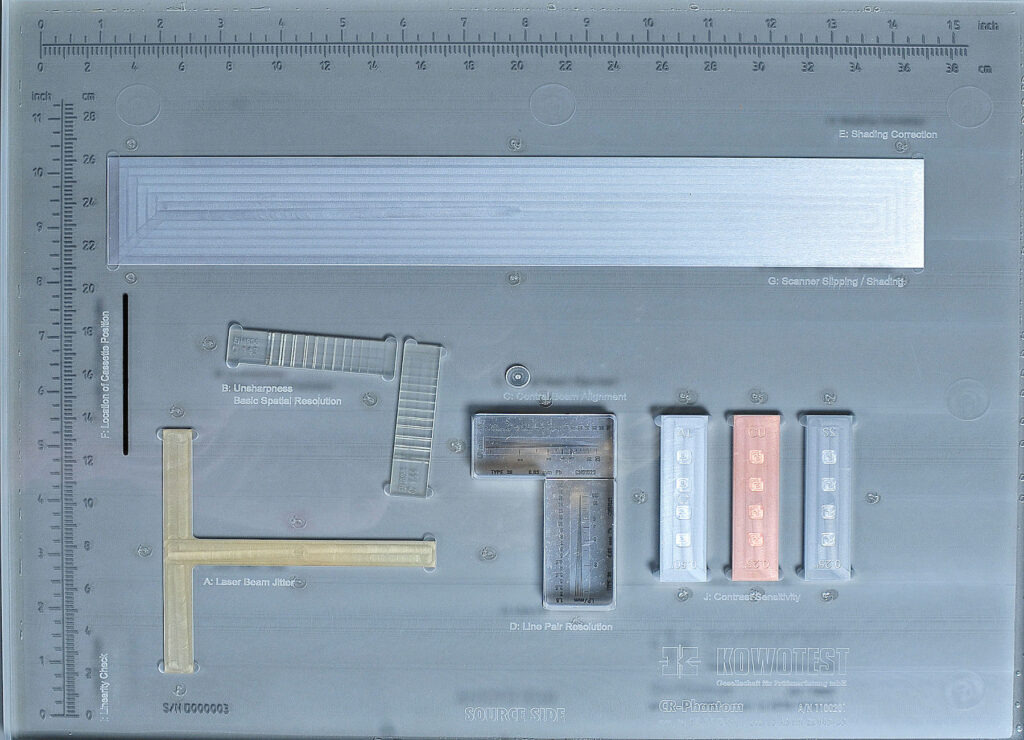

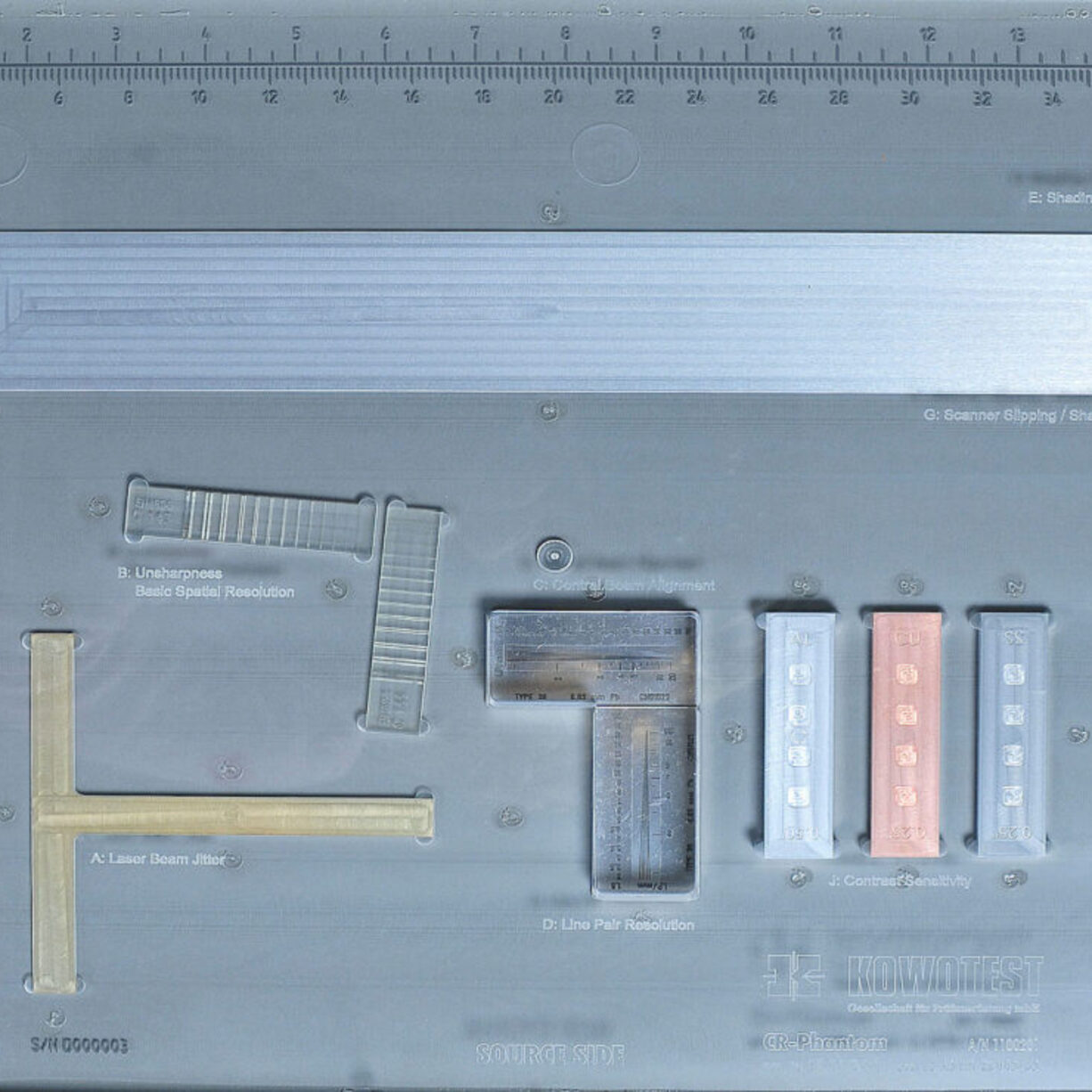

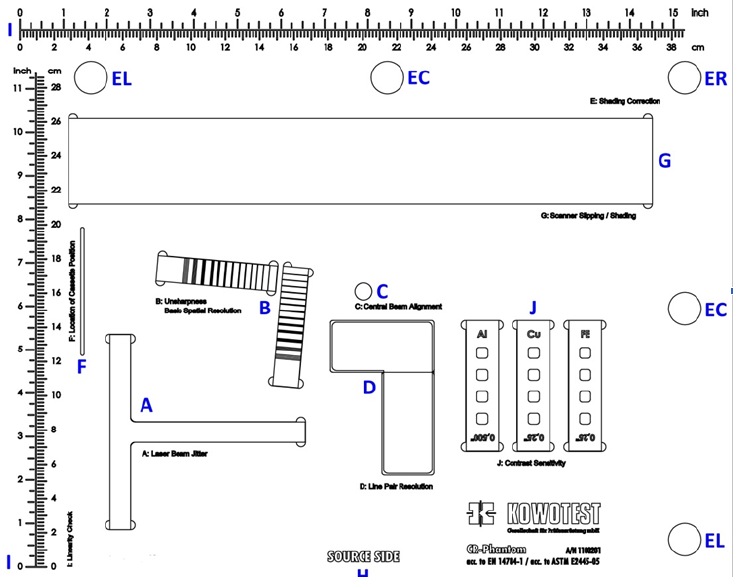

Specification CR Phantom Type I according to ASTM E2445 and ISO 16371-1 :
| IQI, Gauge | Test, Check | ||
| A | T-Target | Laser Jitter, MTF, PMT Non-Linearity | |
| B | Duplex Wire Type IQIs | Basic Spatial Resolution, Unsharpness | |
| C | BAM Snail | Central Beam Alignment | |
| D | Line Pair Gauges | Resolution | |
| E | Shading Tests | Shading | |
| F | Cassette Position Locator | Position of IP | |
| G | Homogeneous Strip Target | Scanner Slippage | |
| H | Lucite Plate | Carrier Plate | |
| I | Linearity IQI - cm-/ inch Rulers | Spatial Linearity, Distortion | |
| J | Contrast Sensitivity Gauges | Contrast Sensitivity | |
| 430 x 350 x 19 mm |
Dimensions:
Specification CR Phantom Type II (USAF) according to ASTM E2445 :
| IQI, Gauge | Test, Check | ||
| A | Jitter Target - brass | Laser Jitter, MTF, Blooming (Flare) PMT Linearity | |
| B | PMT Non-Linearity Target BAM Snail | Central Beam Alignment | |
| C | Line Pair Gauge | Line Pair Resolution | |
| D | Lucite Plate | Carrier Plate | |
| E | Geometric Disortion Markers | Linearity Check | |
| F | Contrast Sensitivity Gauge AL | Contrast Sensitivity | |
| 17 x 14 x .67 inch | |||
Dimensions:
Scope of Supply:

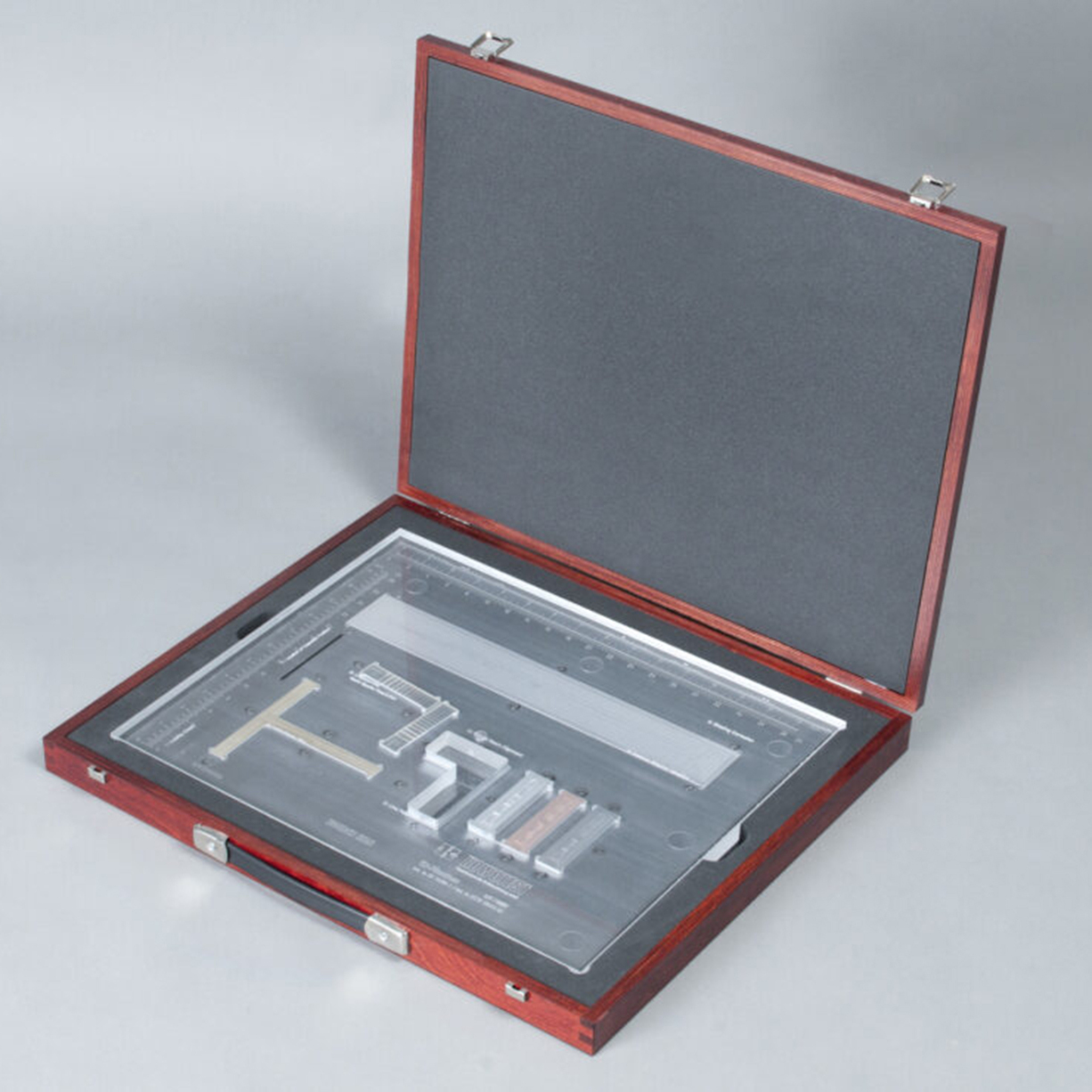

CR Phantom - Type I - 2x Duplex IQIs D13, in wooden case Article No.: 11 00201
CR Phantom - Type I HiRes - 2x Duplex IQIs D15, in in wooden case Article No.: 11 00211
CR Phantom - Type I UHiRes - 2x Duplex IQIs D17 HR4, in in wooden case Article No.: 11 00217
CR Phantom - Type II in wooden case Article No.: 11 00215

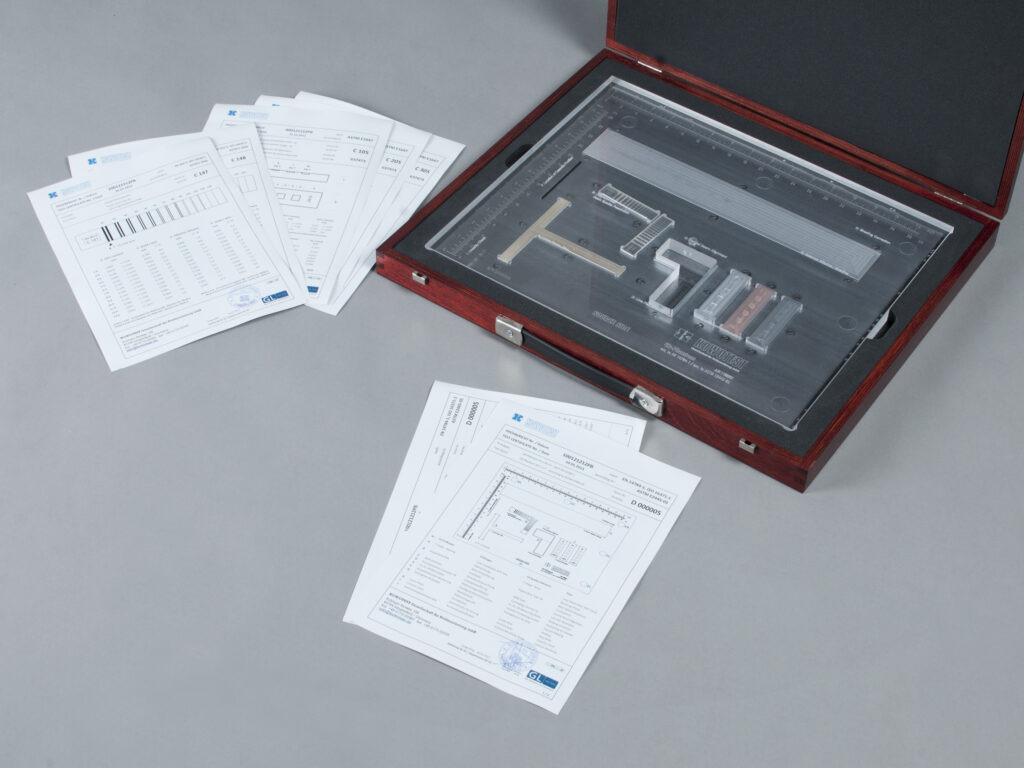

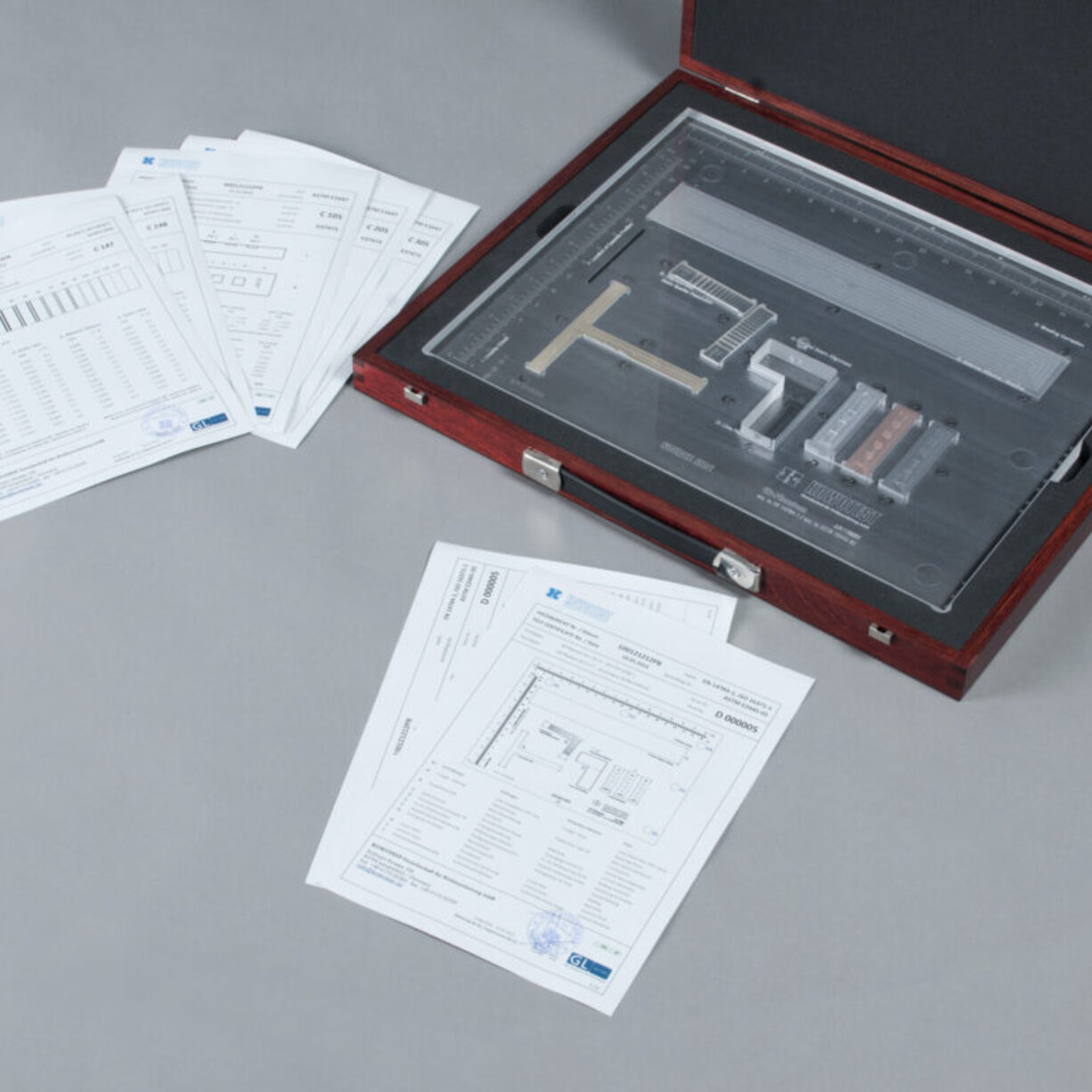

Test certificates acc. to ASTM E2445, ISO 16371-1 and Declaration of Conformity acc. to EN ISO/ IEC 17050-1/ -2
