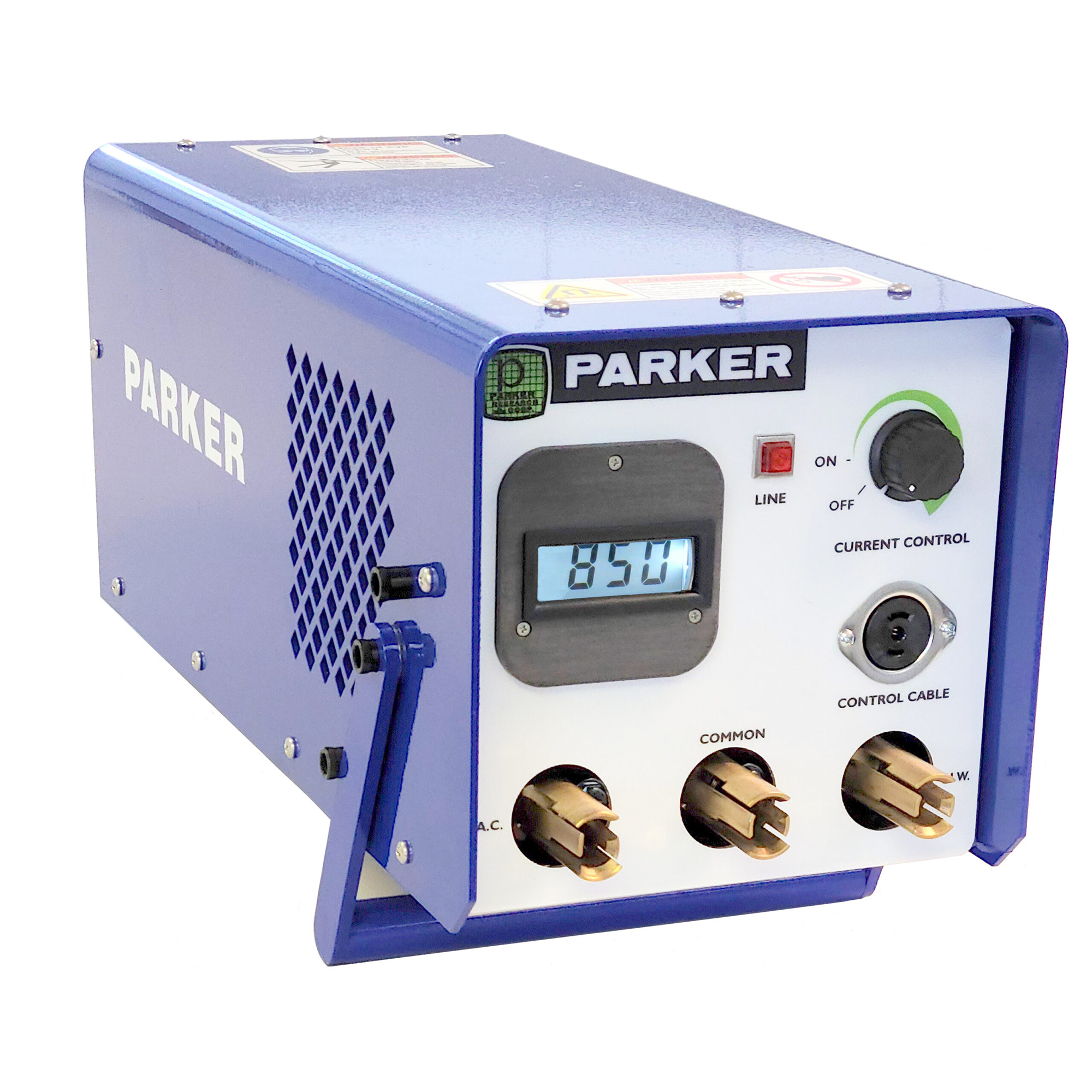

DA-1500-DR Portable Magnetic Inspection Unit

The Parker Research DA-1500-DR Portable Magnetic Particle Inspection Unit is a heavy-duty 1500 Amp magnetic particle inspection (MPI) system designed for advanced non-destructive testing (NDT) applications. It delivers high-output AC and half-wave DC (HWDC) magnetic fields, providing reliable performance for both surface and near-surface defect detection.

This upgraded model features a new digital LCD display, offering improved readability in all lighting conditions and enhanced measurement accuracy. A redesigned internal circuit improves overall system performance and durability, backed by Parker’s one-year warranty.

Field selection is controlled using the appropriate field cable connector, while infinitely variable current output allows precise adjustment from zero to maximum via the front panel control. Current output is displayed digitally for improved accuracy and ease of use, with performance dependent on cable size and length.

The AC magnetic field mode provides excellent sensitivity for detecting surface discontinuities and also supports effective demagnetization after inspection, ensuring safer handling of inspected components.

Available in Canada through Stuart Hunt & Associates, the DA-1500-DR is a reliable, high-precision solution for demanding industrial magnetic particle inspection environments.

Features

• Selection of AC current or HWDC current by only changing one cable connection.
• Locate defects in any direction using prods, coil wrap or contact clamps.
• Infinitely variable current control.
• Demagnetize your parts in AC by turning the current dial to zero or by passing parts through a coil and slowly withdrawing them while the current is on.
• The optional DA1500-DR comes equipped with an easy-to-read digital LCD display.
