Introducing Humboldt’s next generation,Non-Nuclear, soil density, field and in-lab gauge, the EDGe (model e). The EDGe providesNuclear-Free, Field Density Measurements Based On In-Lab Proctor Test Data.
No Licenses
No Badges
No Hassles
Non-Nuclear Technology
Now you can retire your nuclear density gauge and replace it with the innovative, Proctor-driven EDGe! It's your easy Lab-to-Field solution!
Humboldt‘s next generationNon-Nuclear,Electrical Density Gauge, Model E (EDGe) is used for determining the density and moisture content of aggregate, soil aggregate compacted type I or II base, or native soil materials that are suitable for shallow foundations, such as secondary roads or base aggregate that is compacted in-place prior to the asphalt or concrete placement at the final grade. The EDGe quality assurance / quality control (QA/QC) system is lightweight, easy to use, and nuclear free.
The lab unit provides you with the tools to take readings directly from your Proctor molds while performing the Proctor test. One Lab Unit supports multiple Field Units. The field unit is lightweight and comes in a rugged carrying case for easy transport and storage. You can expand your field capabilities by purchasing additional field units. Both units are nuclear free, which eliminates the need for radiation safety compliance regimens and transportation restrictions. The EDGe is simple to use.
Please Note: The EDGe system requires both the lab unit and the field unit to complete the testing process, which can be purchased by purchasing theEDGe Starter Unit, H-6500.3F. These two separate units work together in conjunction with the Microsoft app to ensure precise and accurate measurements. The lab unit correlates the Proctor test data of a representative aggregate/soil sample, while the field unit provides corresponding readings of the same material in real-world conditions. Both units are essential—without them, the test cannot be completed. You can purchase additional units to run multiple tests at the same time see below for more info.
Humboldt's EDGe Starter Unit Includes:
1 lab unit - determining Proctor values
1 field unit - on-site measurements
EDGe Software Features:
Download job data
Save and share customized reports in PDF format
Operate both the Lab and Field Unit
Provide the Field Unit with Proctor Data
Time/Date, GPS stamps for each test
Generate a location map
Computer/Tablet Required But Not Included
Recommended Computers:
Laboratory Use:Any Windows 10 Laptop or Tablet with Bluetooth® LE 4.0 or higher (e.g. MS Surface Pro or MS Surface Go 3)
Field Use:MS Surface Go 3 Tablet with Ruggedized Shell with Bluetooth® LE 4.0 or higher (recommended: Urban Armor Gear Shell & Screen Shield for Surface Go 3)
Microsoft compatible pen for laboratory and field use, optional mouse for laboratory use
A keyboard is recommended for laboratory use
Supports the following standards: AASHTO TP112
Features
Complies with AASHTO T 399 and is an enhancement of ASTM D7698 that includes a laboratory aggregate calibration procedure
Nuclear-free device
Accurate and repeatable results that correlate to either ASTM D1557 or ASTM D698 standard Proctor tests
Does not require highly trained or licensed technicians
Does not require special handling for shipping or regulatory compliance for hazardous materials
Easy-to-learn and easy-to-use with its step-by-step menu
Lightweight and easily transportable
Eliminates costs associated with nuclear gauges
Specifications
EDGe Sensor Electrical Specifications::
Sensor RF Output Signal: <1 Vpp or 354 mV RMS
Maximum Sensor RF Output Power: <0.32 mW
Frequency Range: 10 kHz – 40 MHz
Internal Batteries: T3x AAA NiMH, Rechargeable
Charging Voltage: 7.5 V – 9 V DC
Charging Current: 1500 mA
Maximum Charging Time: 2 hours
Charging Indicator: Green LED
Battery Life: Approx. 40 Tests

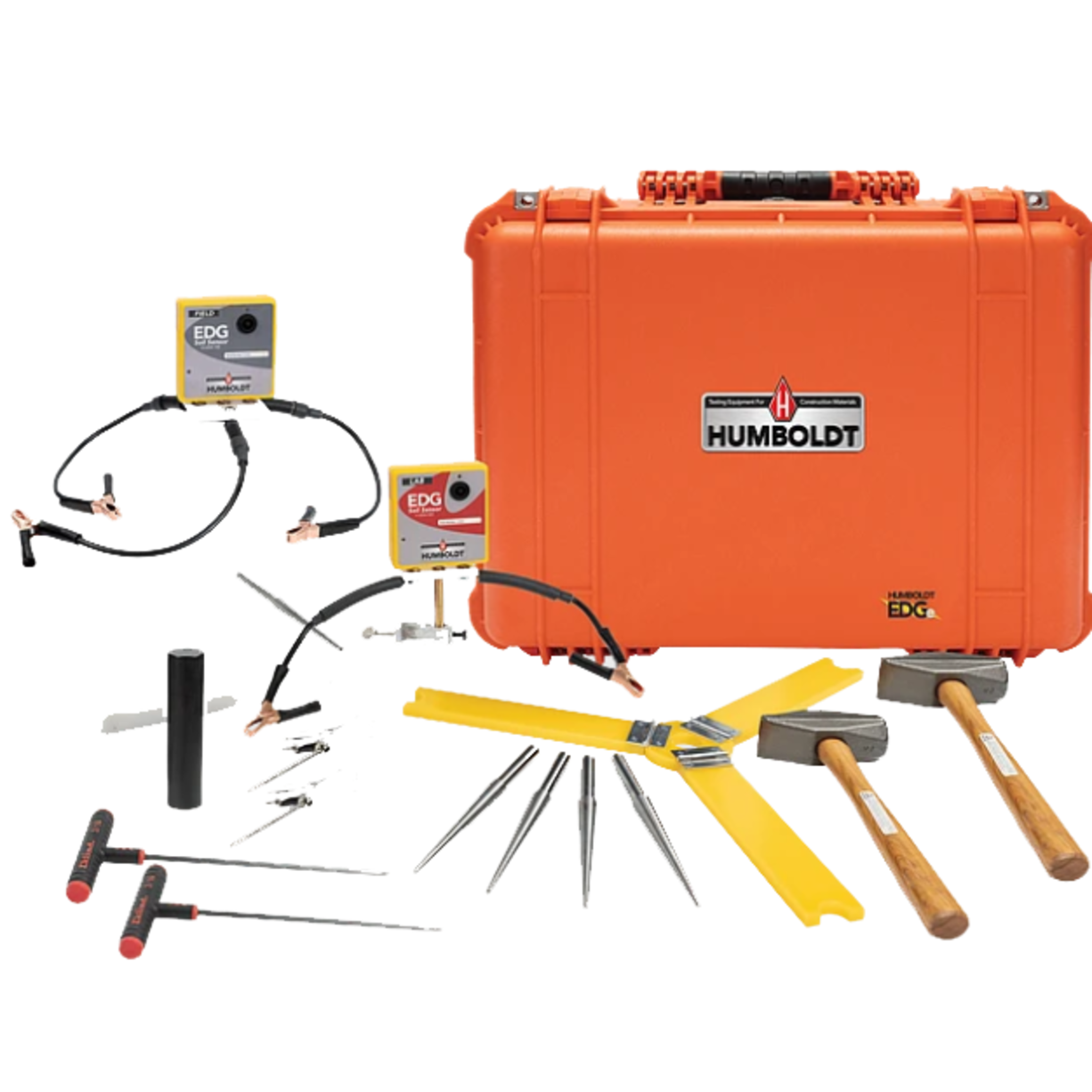

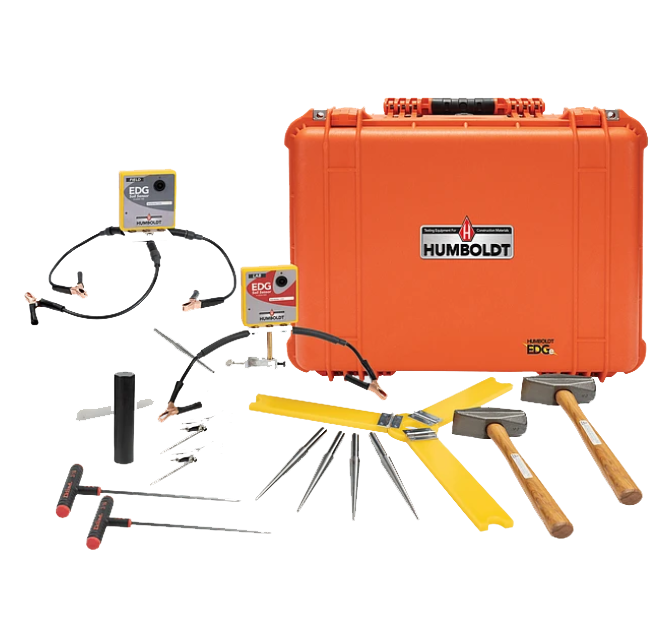

Starter Unit - H-6500.3F:
H-6500F.3F EDGe Field Unit
H-6500L.3F EDGe Lab Unit
Field Unit - H-6500F.3F:
H-6500.100 Soil Sensor, Field Version
H-6500.700 Temperature Probe
H-4114.040 Temperature Probe Spike
H-6500.200 Field Dart Template
H-4114.6 Field Darts, 6" (4)
H-6500.300 Field Dart Adapter
H-4890A Hammer
H-6500.800 Case
H-6500.02 AC/DC Wall Mount Adapter (Charger)
Lab Unit - H-6500L.3F:
H-6500.500 Soil Sensor, Lab Version
H-6500.700 Temperature Probe
H-4114.040 Temperature Probe Spike
H-6500.6 Proctor Center Dart, 4"
H-6500.550 Lab Dart Adapter
H-4890A Hammer
H-6500.02 AC/DC Wall Mount Adapter (Charger)
H-6500.7 HDPE Proctor Mold Base
H-6500.8 Dart Seating Tool
