Fujifilm DynamIx FXR

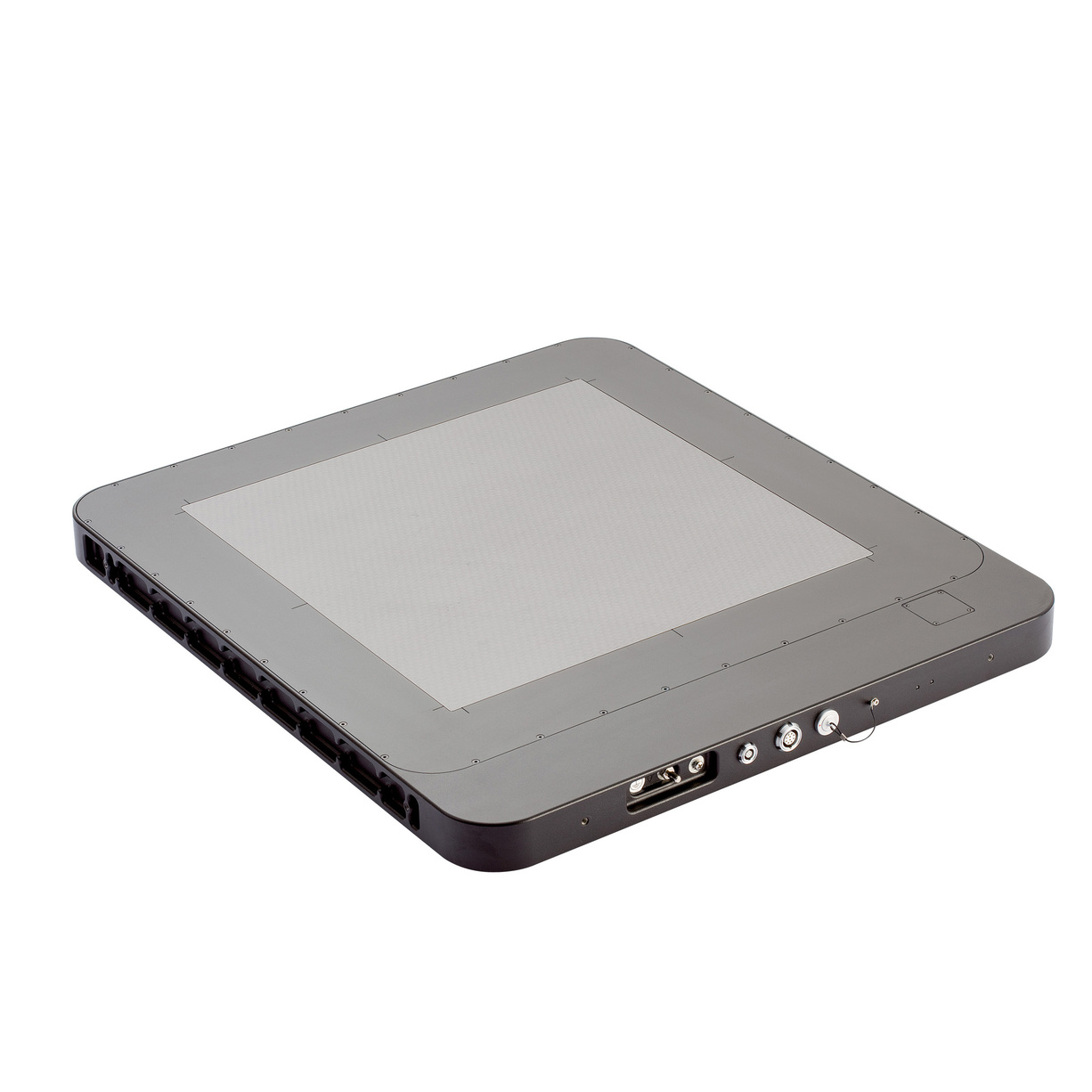

Digital Detector Array "DynamIx FXR"

Easy to install in an existing radiography cabinet or walk-in exposure room.

The DynamIx FXR System provides 100μm pixel pitch capable of energy levels up to 15 MeV and the large active area of 16" x 16". It improves productivity significantly for high volume inspections with exceptional image quality powered by FUJIFILM image processing technology.

[image] Instructional guide on how to install with a close up on placement

Features

High-Energy Capability
Large Active Area
High Image Resolution
High-Volume Productivity
Wide Dynamic Range: >84 dB dynamic range
Stable Fiber-Optic Connection
Heavy-Duty Construction

Specifications

Product code:

D-1611

Panel:

amorphous silicon

Scintillator:

Gd2O2S:Tb

Active area:

409.6mm×409.6mm

Pixel matrix:

4096×4096

Pixel pitch:

100μm pixel pitch

Frame rate:

3.75FPS

Energy duration:

40KeV - 15MeV

Dynamic range:

>84 dB

ADC:

16bit

Data Interface:

Fiber-optical interface

Size:

672mm×599mm×44mm

Weight:

25kg

Operating temperature:

10℃～35℃

Storage temperature:

-10℃～50℃

Humidity:

30%～70%（RH）,Non-condensing

Power supply:

EPS power supply 215W

Dissipation:

90W
