Fujifilm DynamIx FXR Pad

Fujifilm DynamIx FXR Pad

Digital Detector Array "DynamIx FXR Pad"

The Dynamix FXR Pad is designed to exceed demanding inspection requirements and provide real-time imaging during field RT applications

FXR Pad family of lightweight detectors share exceptional high-resolution imaging coupled with water-resistant features. Inspection efficiency is improved even in harsh environments with immediate image evaluations.

Detector	FXR Pad 3025	FXR Pad 4336
Panel Type	Amorphous silicon	Amorphous silicon
Scintillator	CsI	CsI
Active area	248.0mm x 297.6mm / 9.8in x 12in	350mm × 426mm / 14in x 17in
Pixel matrix	2508 x 3004	3524 x 4288
Pixel pitch	100μm	100μm
Frame rate	Wired connection: 3 fps (300 ms) Wireless connection: 0.5 fps (2000 ms)	Wired connection: 2 fps (500 ms) Wireless connection: 0.3 fps (3000 ms)
A/D Conversion	16bit	16bit
Wired I/F	GigE, trigger and power via docking connector	GigE, trigger and power via docking connector
Wireless I/F	802.11n Wi-Fi standard at 5 GHz	802.11n Wi-Fi standard at 5 GHz
Size	282mm x 332mm x 15.5mm 11in x 13in x 0.61in	384mm x 460mm x 15.5mm 15in x 18in x 0.61in
Weight	1.8kg / 3lb / 15oz	3.1kg / 6lb / 13oz
Humidity	20% to 80% operating	20% to 80% operating
IP Rating	IPX4 rated (protection against splashing water)	IPX4 rated (protection against splashing water)
Battery	Rechargeable battery, 11.1 V	Rechargeable battery, 11.1 V
Battery Charger	External two bay charger 100 - 240 V AC, 50/60 Hz	External two bay charger 100 - 240 V AC, 50/60 Hz
Interface and Power Unit	Optional IPU-2 external power supply 100 – 240 V AC 50/60 Hz GigE and X-ray I/F	Optional IPU-2 external power supply 100 – 240 V AC 50/60 Hz GigE and X-ray I/F
Panel Cover	Under development	Under development

Optional Accessories: DDA Panel Cover (Available for FXR Pad 4336 and 3025)

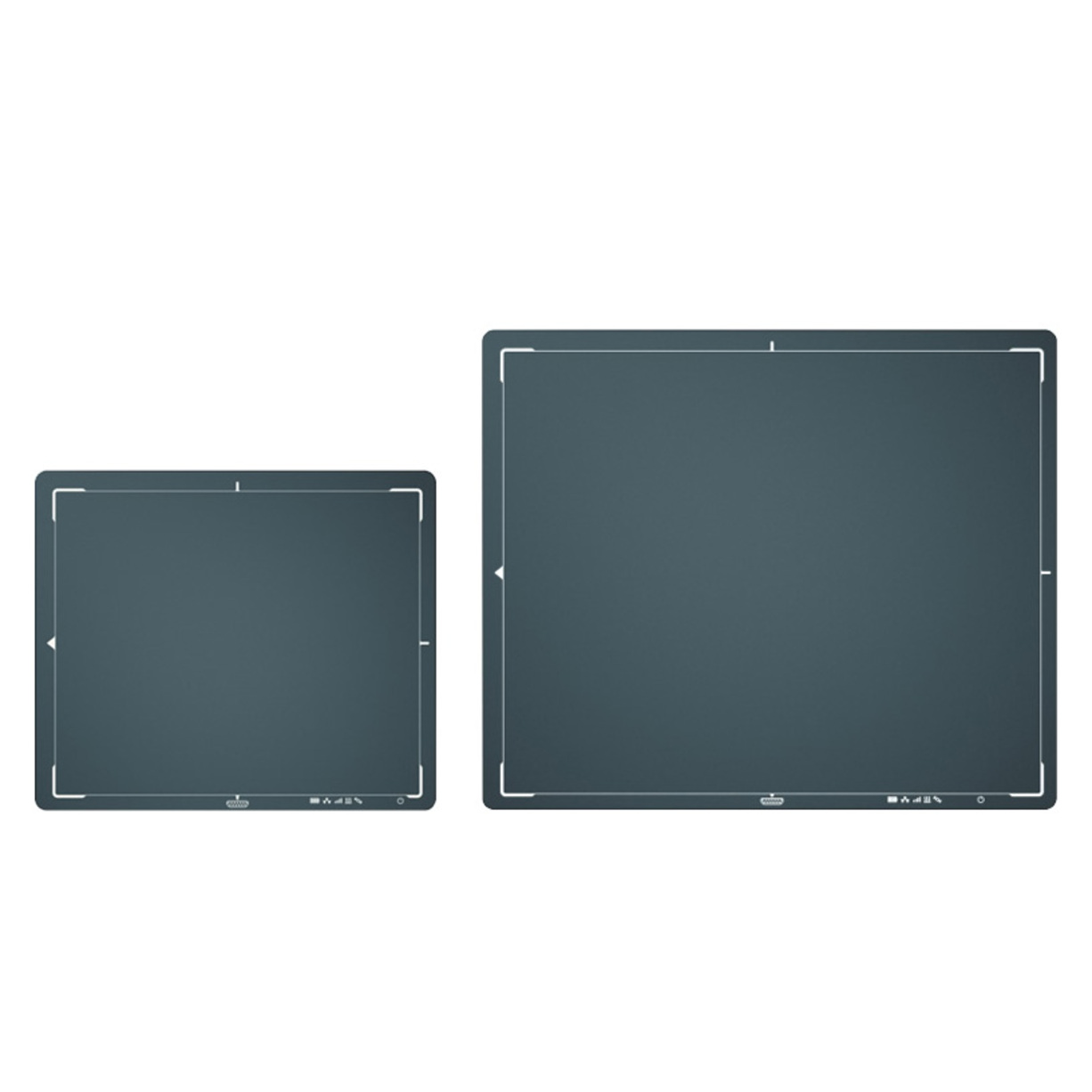

[photo] Small and large DynamIx FXR panels

DDA Panel Cover (for FXR Pad 4336/3025)

Impact Protection
Easy Handling
Can be attached to rounded parts including pipe with belt or strapping material
Exchangeable Acrylic Cover protecting from surface scratches
Special opening for battery replacement

Download Spec Sheet
