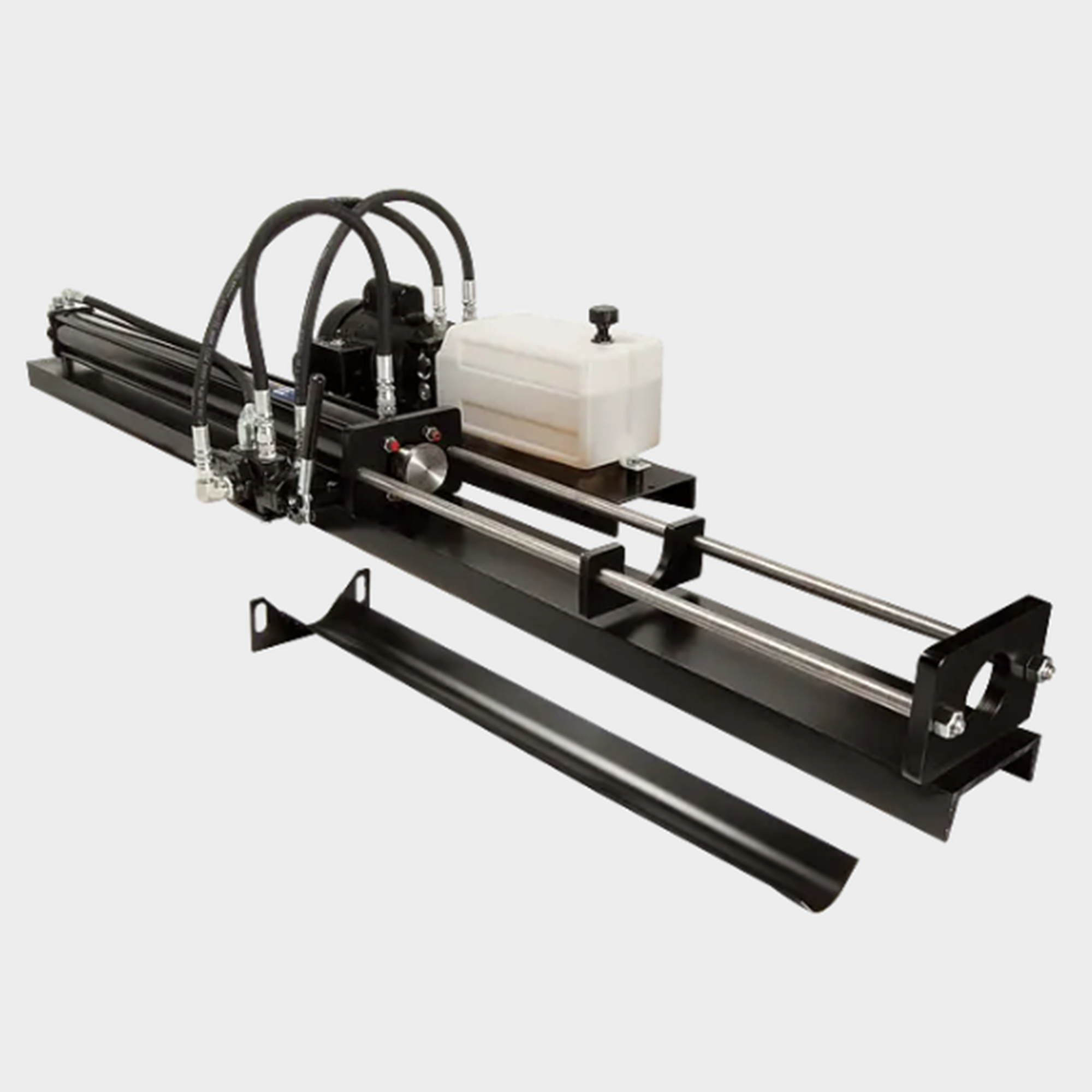

Horizontal Sample Ejector

Hydraulically driven horizontal sample ejector designed for rapid ejection of 3" (76.2mm) x 30" (762mm) thin-wall sample tubes (Shelby tubes). The H-4185 also has an adjustable slider to support multiple Shelby tube lengths. The horizontal sample ejector provides a smooth and easily controlled piston stroke providing easy and rapid handling of ejected samples. The unit’s hydraulic system accurately controls the horizontal piston’s 5600lbf (24.9kN) force to eject samples smoothly. The ejector uses 1.7gpm hydraulic pump powered by a 1hp electric motor. Hydraulic oil reservoir provides 2.5gal (9.5L) capacity.

This ejector can also be used with 2 or 2.5" Shelby tube samples using the corresponding conversion kit, see Accessories below. The ejector comes with (1) sample trough to support ejected samples.

Overall dimensions w/o sample trough are: 84" (2134mm) L x 23" (584mm) W x 18" (457mm) H.
