Kowotest Flexible Duplex Wire Type IQI
Total Image Unsharpness Gage according to ISO 19232-5, ASTM E2002

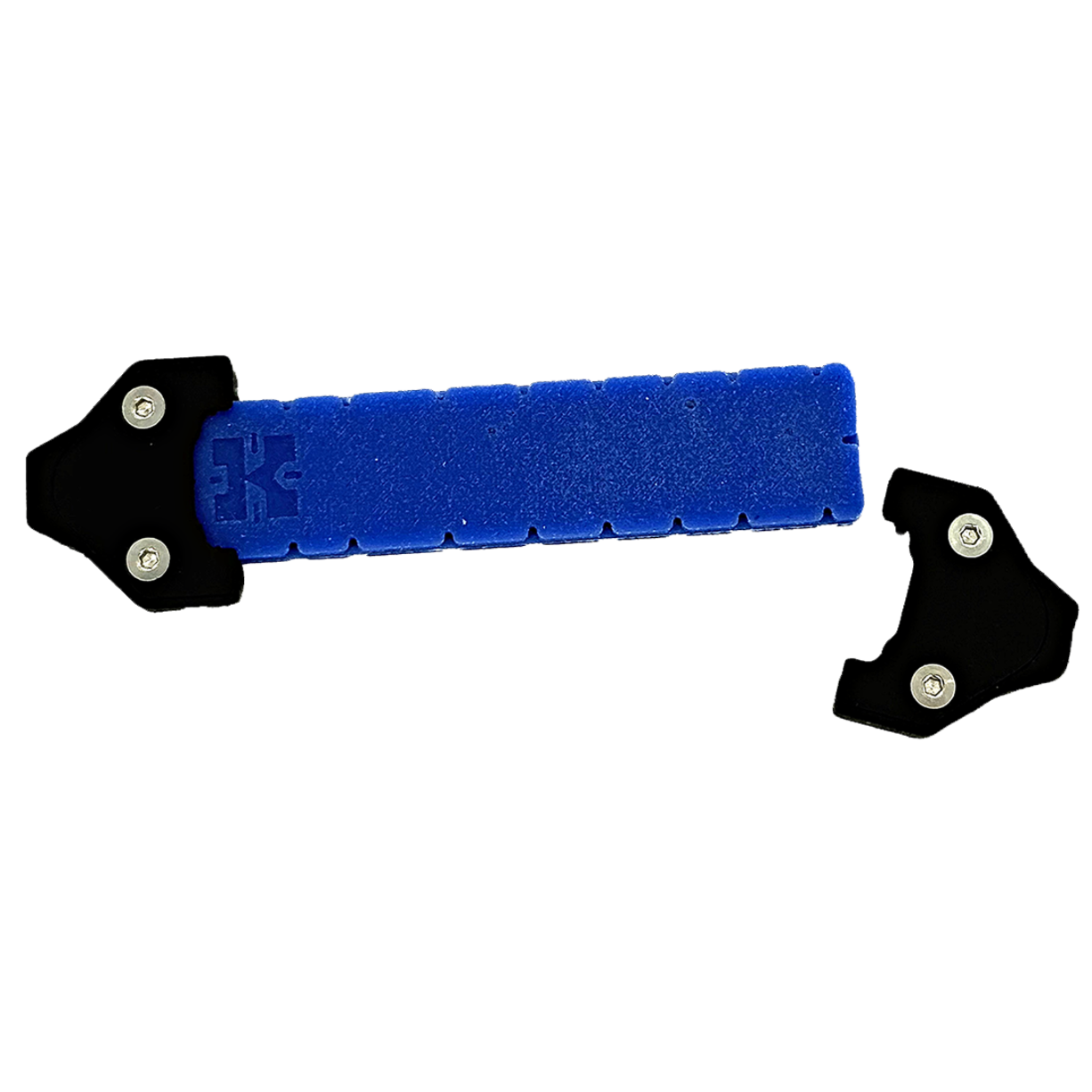

The Duplex Wire Type IQI is a Flexible DDA Duplex Wire Gauge that is capable of bending around curved surfaces, such as pipes, to achieve a precise evaluation of basic spatial resolution and unsharpness in digital X-ray imaging.
Note: The matching flexible IQI magnetic holder (RT-KT-11-00159) is purchased separately from the Flexible Duplex Wire Type IQI, ISO 19232-5, ASTM E2002 (RT-KT-11-00158)
Normal Duplex Vs. Flexible Duplex IQI
The Flexible Duplex Wire Type IQI was compared to a normal D13 IQI. The findings are as follows:
- Flexible Duplex Wire Type IQI dimensions are 72 mm long x 5 mm thick vs the
- Standard D13 dimensions 70 mm long x 3 mm thick
- The Flexible Duplex Wire Type IQI resolution agreed with the standard D13 gauge
- The Flexible Duplex Wire Type IQI bent to 2” pipe diameter
Applications and Conformances
The Duplex Wire Type IQI is used for basic spatial resolution evaluation of digital images in accordance with the:
- EN 13068 (Radioscopy)
- ISO 16371 or ASTM E2445 (CR – Computed Radiography with Imaging Plates)
- ASTM E2446 and ASTM E2597 (characterization of CR systems and DDAs)
- ASTM E2737 (Long term stability of DDAs)
Other applications include the:
- ISO 17636-2 (digital radiography of welds)
- EN 12681-2 (castings)
Technical Specifications
Duplex IQI consists of the following wire pairs:
- D13 - D1 to D13
- D15 - D1 to D15
- D17 HR4 - D4 to D17
| Material for Wires | |
| D1 to D3 Material: | Tungsten (W) |
| D4 to D17 Material: | Platinum (Pt) |
| Wire Cast Material: | Transparent, resistance and dimensional stable plastic |
**Distance between wires of each wire pair equals exactly diameter of wires
|
DD Duplex Wire Pair Number |
d (μm) Wire Diameter and Spacing |
UT (μm) Corresponding Unsharpness |
SRb (μm) Corresponding Basic Spatial Resolution |
LP (1/mm) Corresponding Line Pair Value (LP per mm) |
| D 1 | 800 | 1600 | 800 | 0.63 |
| D 2 | 630 | 1260 | 630 | 0.79 |
| D 3 | 500 | 1000 | 500 | 1.00 |
| D 4 | 400 | 800 | 400 | 1.25 |
| D 5 | 320 | 640 | 320 | 1.56 |
| D 6 | 250 | 500 | 250 | 2.00 |
| D 7 | 200 | 400 | 200 | 2.50 |
| D 8 | 160 | 320 | 160 | 3.13 |
| D 9 | 130 | 260 | 130 | 3.85 |
| D 10 | 100 | 200 | 100 | 5.00 |
| D 11 | 80 | 160 | 80 | 6.25 |
| D 12 | 63 | 126 | 63 | 7.94 |
| D 13 | 50 | 100 | 50 | 10.00 |
| D 14 | 40 | 80 | 40 | 12.50 |
| D 15 | 32 | 63 | 32 | 15.90 |
| D 16 | 25 | 50 | 25 | 20.00 |
Scope of Supply
- Duplex Wire Type IQI (RT-KT-11-00158) in Wooden Etui Case
- Test Report according to ASTM E 2002, ISO 19232-5
- Declaration of Conformity according to ISO/IEC 17050-1
Note: The matching flexible IQI magnetic holder (RT-KT-11-00159) is purchased separately from the Flexible Duplex Wire Type IQI, ISO 19232-5, ASTM E2002
