NOVOTEST Wireless Hardness Tester Lab UCI Pro
The NOVOTEST Lab UCI Pro is a next-generation portable hardness tester that leverages advanced Ultrasonic Contact Impedance (UCI) technology for unparalleled accuracy and repeatability. Designed for both laboratory and field applications, this wireless tester provides reliable measurements across a wide range of materials and part geometries.
The innovative probe and UCI technology minimize operator influence, ensuring highly repeatable results even on thin components, complex shapes, and surface-hardened layers. Lightweight, ergonomic, and portable, the Lab UCI Pro makes precision hardness testing easier and more reliable, whether in the lab or on-site.
Features
- Advanced UCI technology for superior measurement accuracy
- Wireless, portable, and easy to use in field or lab
- Minimizes operator influence for consistent, repeatable results

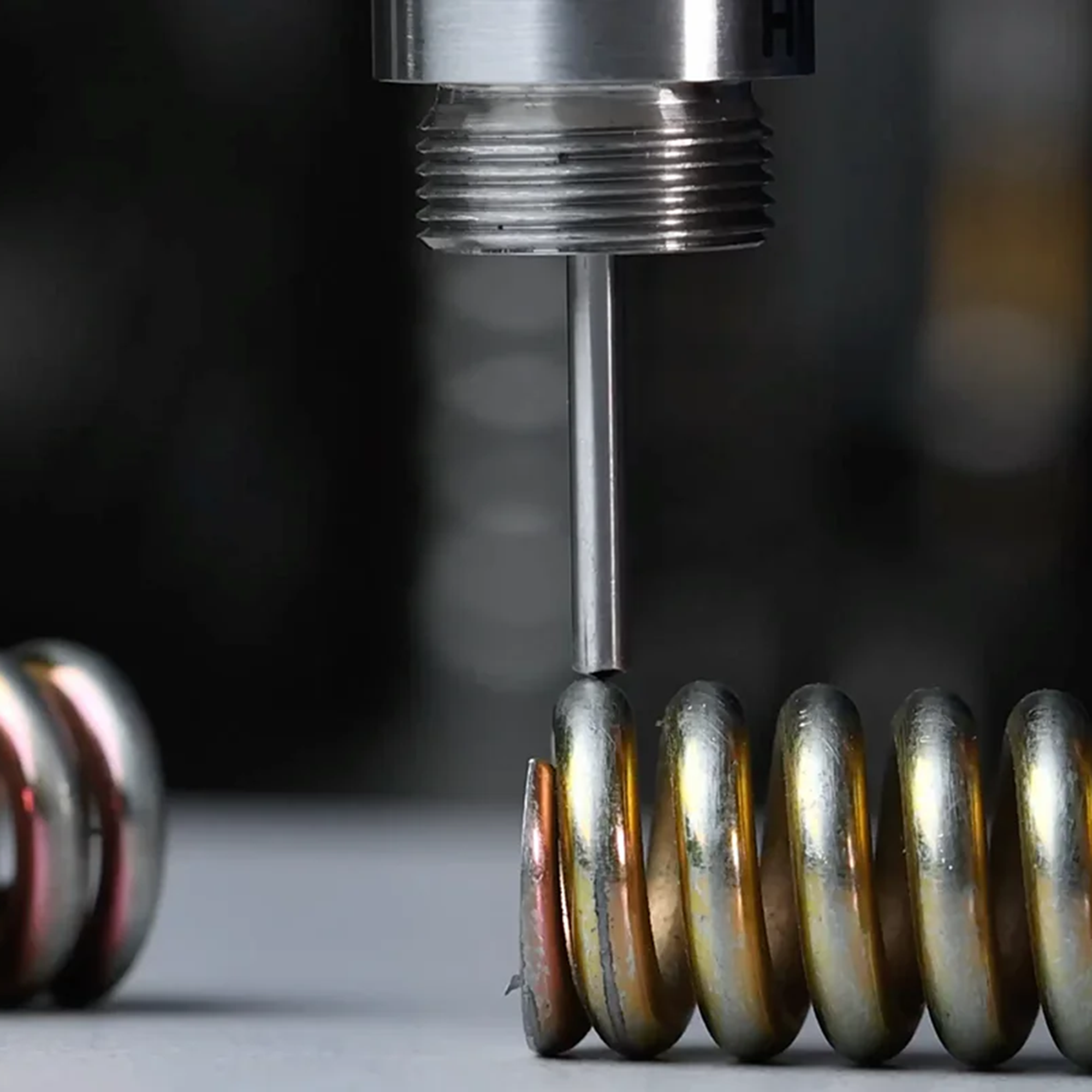

- Effective on thin parts, complex geometries, and hardened surfaces
- Ideal for quality control, R&D, and maintenance inspections
- Up to 24 hours of autonomous operation
Specifications
Scales:
HV, HB, HRC, HRB, HRA, HK, MPa
Materials:
Steel, Alloy steel, Stainless steel, Cast iron, Nickel, Aluminum, Brass, Copper
Measurement uncertainty:
4 %
Measurement range:
0…2000 HV
Test load:
HV1 (9.8 N) or HV5 (49 N), depending on the device type
Display:
0.66″ (64×48)
Interfaces:

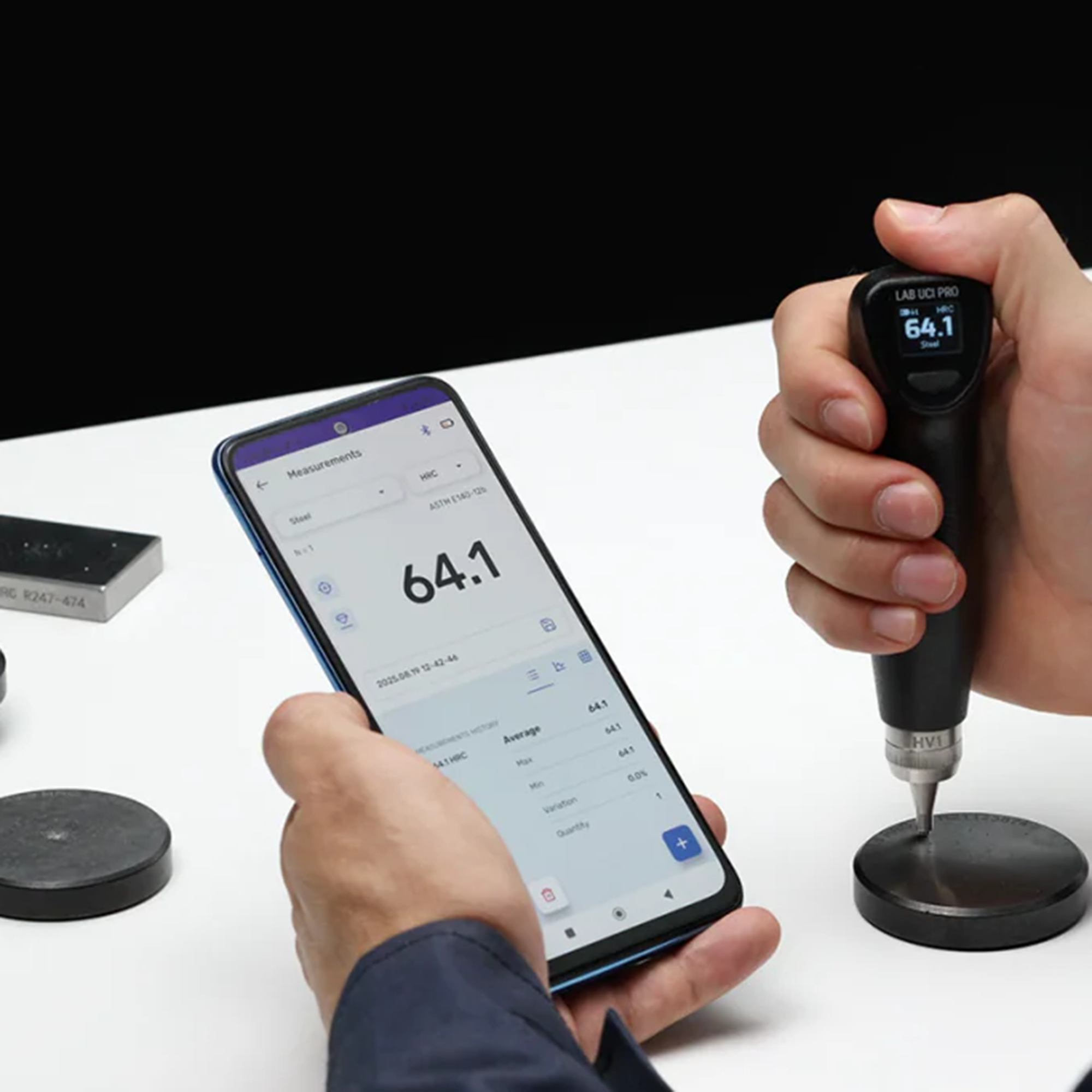

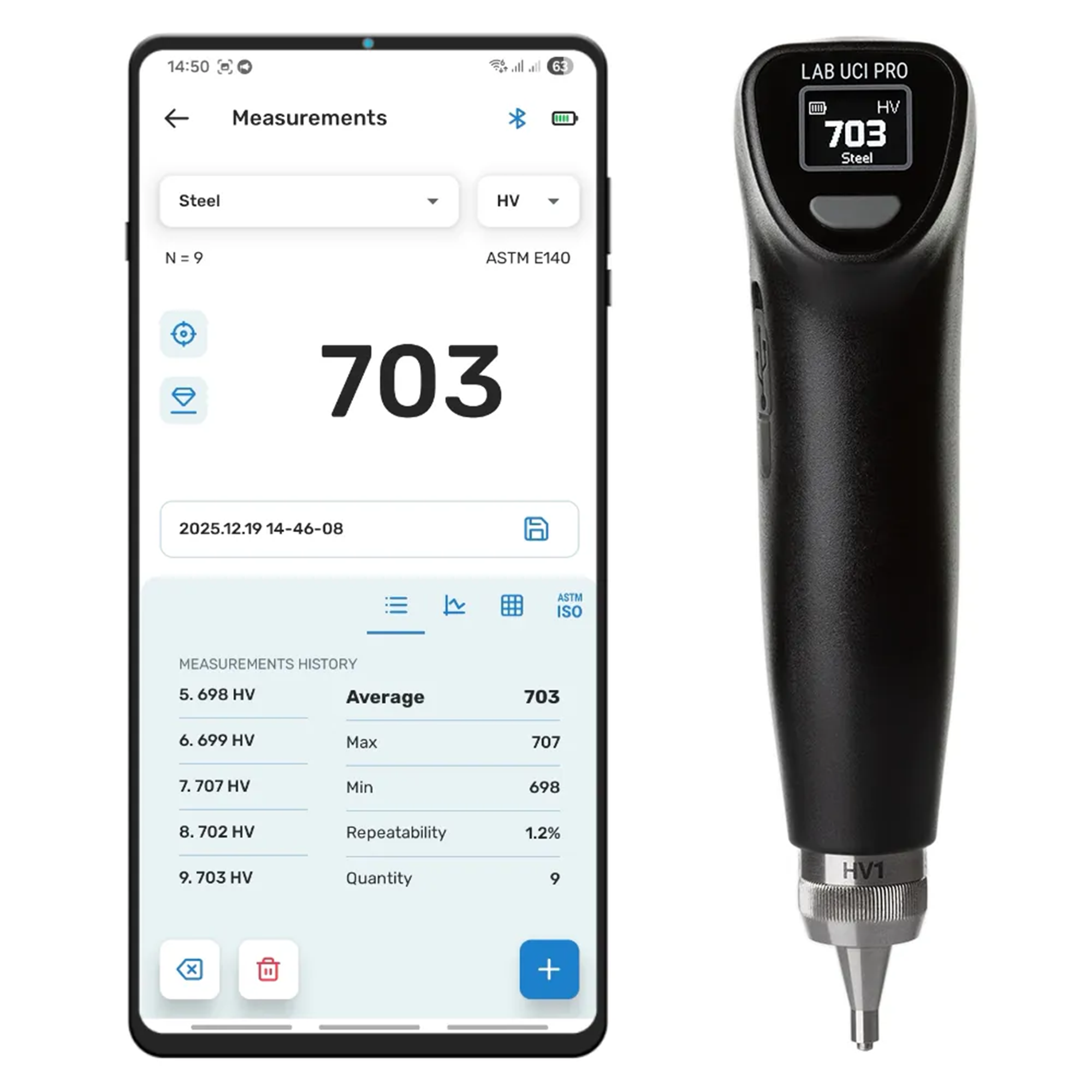

USB-C (charging and PC connection), Bluetooth BLE (for NOVOTEST Lab app)
Battery:
Built-in lithium-ion battery, 3.7V 750mAh, up to 24 hours of operation
Dimensions:
153×40 mm
Weight:
160 g
Compliance standards:
ASTM A1038, DIN 50159, ASTM E140, ISO18265
Operating temperature range:
from -20°C to +50°C
