Parker A-210 SUPERLIFT Contour Probe

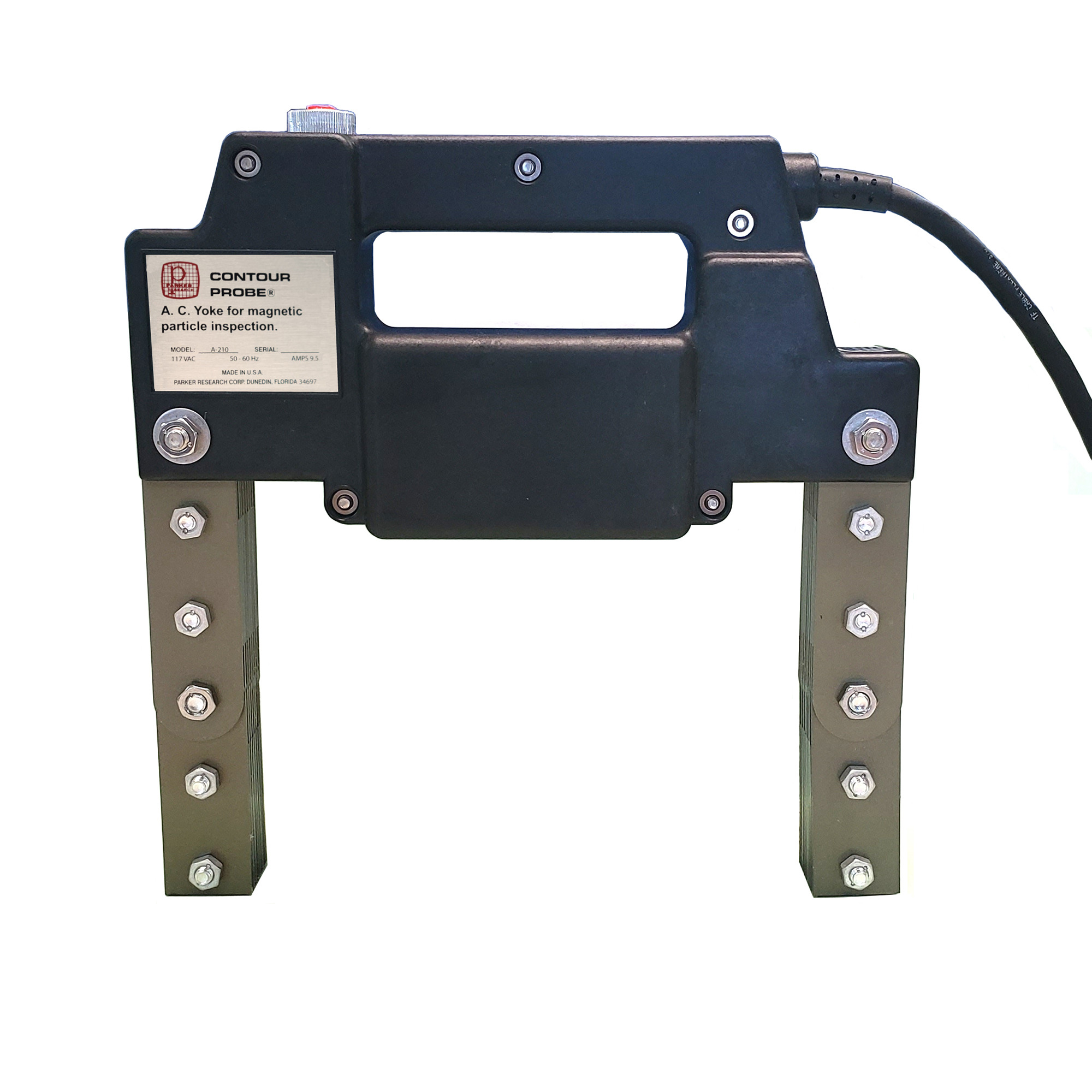

The Parker Research Contour Probe is a handheld AC magnetic yoke used for magnetic particle inspection (MPI) applications. It is designed to generate an alternating current magnetic field for surface defect detection and demagnetizing after inspection.
This AC instrument produces an intense AC magnetic field and can be used with dry powder, wet fluorescent, or visible magnetic particles. It supports continuous magnetic field application and demagnetization. The yoke features articulating legs for adaptability to different part geometries and a high-impact molded housing intended for industrial use.
The Contour Probe is used in magnetic particle inspection and non-destructive testing (NDT) environments, including laboratories, manufacturing facilities, and field inspection sites where surface crack detection and demagnetization are required.
Available in Canada through Stuart Hunt & Associates.
COMPARE SPECIFICATIONS
|
DA-200 |
DA-200S |
A-210 |
A-210S |
|
| Physical |
11 H × 10.75 L × 2.75 W |
|||
| Line Voltage Single Phase | 115 VAC 60 Hz |
230 VAC 50/60 Hz |
115 VAC 60 Hz |
230 VAC 50/60 Hz |
| Line Current | 6 A |
4 A |
9.5 A |
4 A |
| Duty Cycle |
50% |
|||
| Weight | 12 lbs (5.44 kg) | |||
| Construction |
Glass-filled nylon housing |
|||
| Span |
18 in. (457 mm) across poles |
|||
| Field | AC/DC | AC/DC | AC | AC |
.
Features
- Handheld AC magnetic yoke for MPI applications
- Used with dry powder, wet fluorescent, or visible media
- Designed for surface defect detection and demagnetizing
- Articulating legs support varied part geometries
- High-impact molded housing with IP51 rating
