Parker B-310 Contour Probe

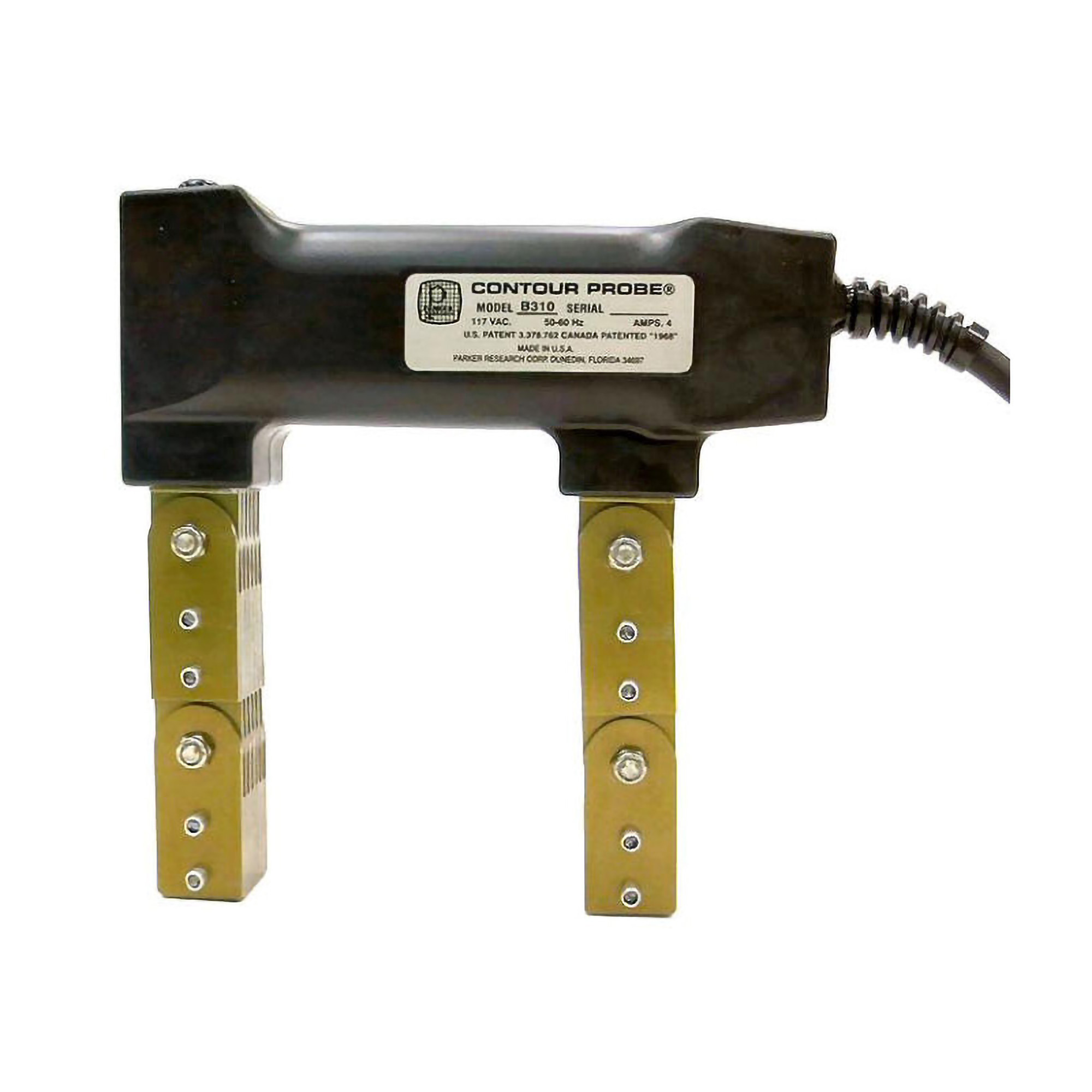

The Parker Research B-310 Contour Probe is a compact, lightweight AC magnetic inspection yoke used for magnetic particle inspection (MPI). It is designed for applications where reduced size and improved access to confined inspection areas are required.
The B-310 produces an AC magnetic field for surface defect detection and features fully adjustable legs that allow precise placement on parts of varying shapes and sizes. A reversible strain-relief design allows the power cord to enter from either the top or rear of the unit, supporting flexible positioning during inspections. The probe is housed in a polyurethane-filled glass/nylon enclosure intended for industrial environments.
This contour probe is used in magnetic particle inspection and non-destructive testing (NDT) settings, including laboratory, manufacturing, and field inspection environments where portability and compact design are important.
SPECIFICATIONS
| B310 |
B-310S |
B-142 |
|
| Physical |
7.25 L ×7.75 H × 2.125 W |
||
| Line Voltage Single Phase | 115 VAC 60 Hz |
230 VAC 50/60 Hz |
42-48 VAC 50/60 Hz |
| Line Current | 4 A | 3 A | 7.5 A |
| Duty Cycle |
50% |
||
| Weight | 6 lb (2.73 Kg) | ||
| Construction |
Polyurethane-filled glass/nylon housing |
||
| Span |
0-9 in. across poles |
||
.
Features
- Lightweight AC magnetic yoke for MPI applications
- Compact design for access to small or restricted areas
- Fully adjustable legs for precise field placement
- Reversible top or rear cord entry
- Polyurethane-filled glass/nylon housing with IP54 rating
