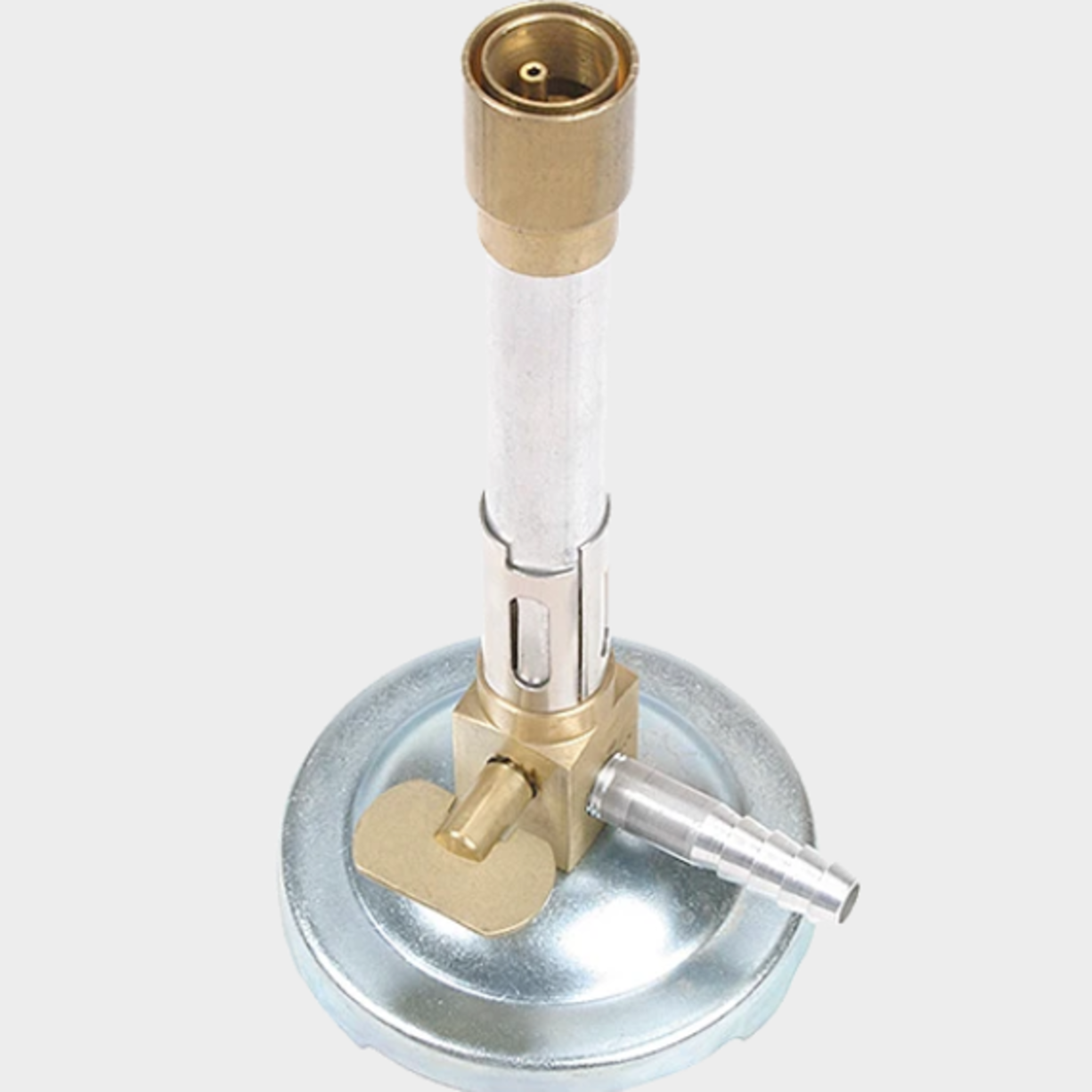

Pilot Flame Burner, Natural gas, 3,180 BTU Output
Ideal for intermittent use without frequent relighting. The burner features a sleeve-type air regulator and stopcock for gas control and an integral pilot light tube with screw for adjusting the pilot flame.
*Note: CFHs and BTU Outputs are figured on: 5 inch Water Column Pressures for Artificial and Natural Burners. 11 inch Water Column Pressures for LP Burners.
Specifications
Gas type:
Natural
Inlet OD:
3/8" (10mm)
CFH*:
5.3
BTU Output*:
3,180
Overall Height:
6-3/8" (162mm)
