- Schmidt Hammer, Type N

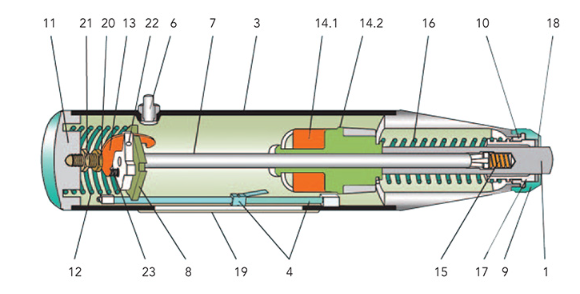

Schmidt Hammer, Type N
Supports the following standards: ASTM C805, BS 1881: PART 202, ISOIDIS8045, ENV 206, IGJ/T 23-2001
The original Schmidt® hammer, type N, is designed for non-destructive testing of concrete items 4" (100mm) or more in thickness, or concrete with a maximum particle size less than or equal to 1.25" (32mm). It is designed for testing concrete within a compressive strength range of 1,450 to 10,152 psi (10 to 70 N/mm2) and impact energy of the test is 1.6 ft-lbs (2.207 Nm). The (type N) Schmidt hammer is pressed against the concrete structure and the rebound values are displayed on a mechanical sliding scale. These values can then be correlated to compressive strength by using the conversion table chart affixed to the hammer. The original Schmidt hammer is known for its durability and accuracy.
Replacement Parts
Accessories
