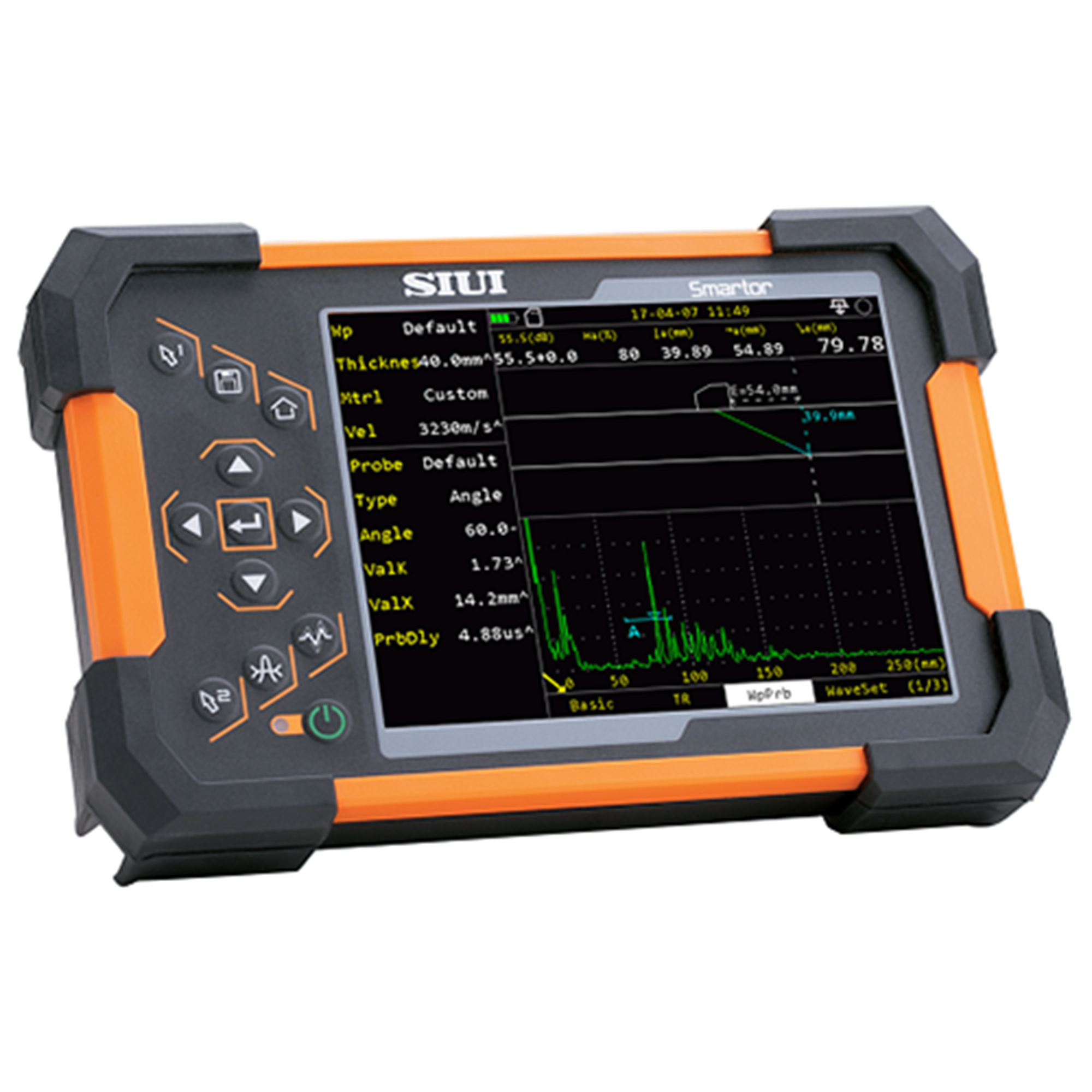

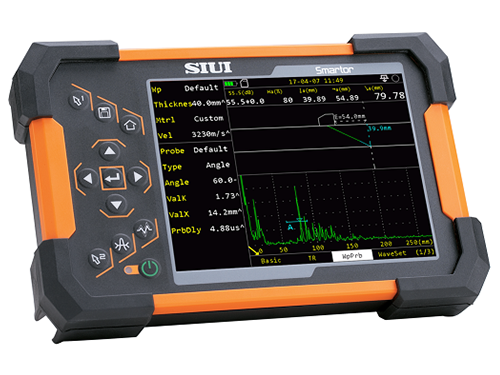

Smartor Digital Ultrasonic Flaw Detector & Thickness Gauge
Why carry two instruments when one does it all?
SIUI’s newly launched Smartor combines the power of an Ultrasonic Flaw Detector with the precision of a Thickness Gauge – in one lightweight, compact device.
Designed for versatility and ease of use, Smartor gives inspectors the tools they need to work faster, smarter, and with confidence.
One Device. Two Functions. Meet the New Smarto:

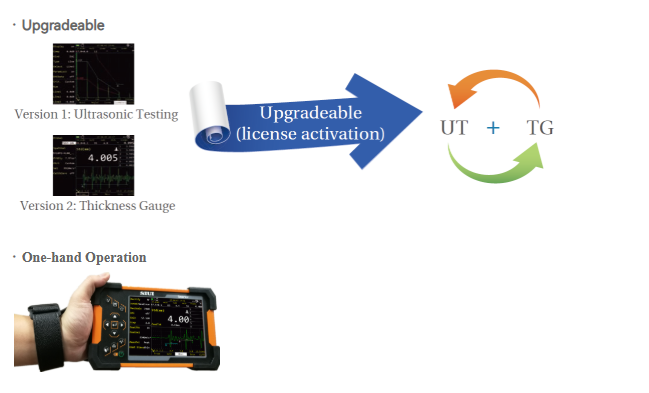

-One-hand Operation
-Smart Test Wizard
-Weld Simulation
-Advanced Conventional UT & Thickness Measurement
Features
- High IP rate: IP 66
- Compact size: 198 (W)* 128 (H) *52 (D) mm
- Light weight: 0.9kg only, including battery
- 5.7" LCD with high resolution 640×480 pixels
- Adjustable pulse width, negative square wave transmission is up to 350V.
- Operating frequency range: 0.5~20MHz, multiple steps of wide broadband and narrow-band for selection.
- Easy operation: only a few buttons, well-defined intuitive interface, support right-hand and left-hand operation, outdoor mode.
- Multiple conventional UT functions
- Multiple thickness measurement functions

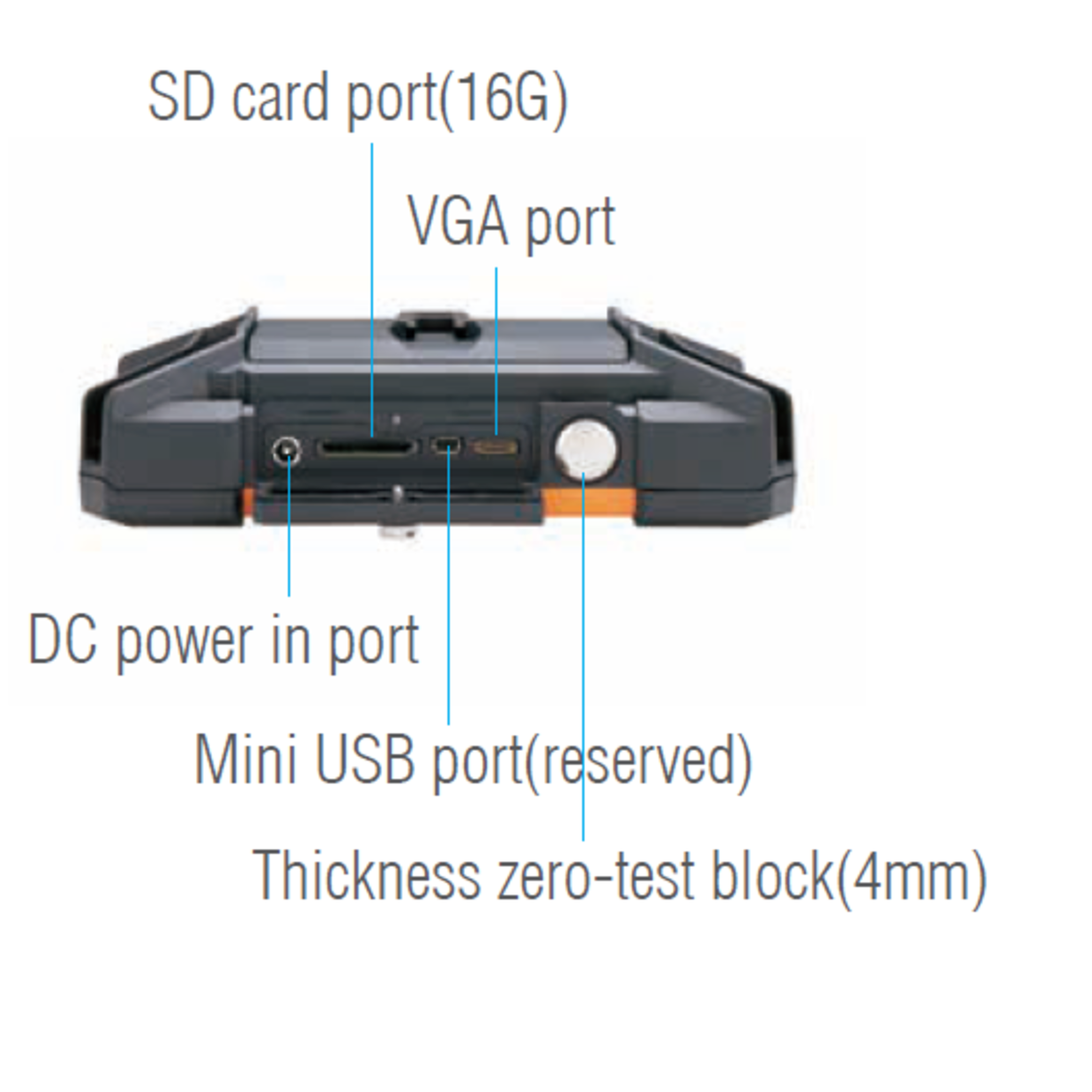

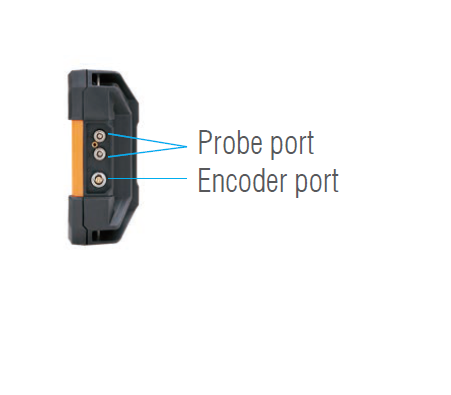

- System ports: encoder, VGA, standard SD card, USB
- *EN12668-1: 2010(for UT) & EN15317-2007(for TG) compliant
