ThinPave™ 5500

New Advanced Thin-Layer Asphalt Density Technology

Smaller footprint and closed source assembly!

*Pending approval for sale in Canada. Only Product details available.

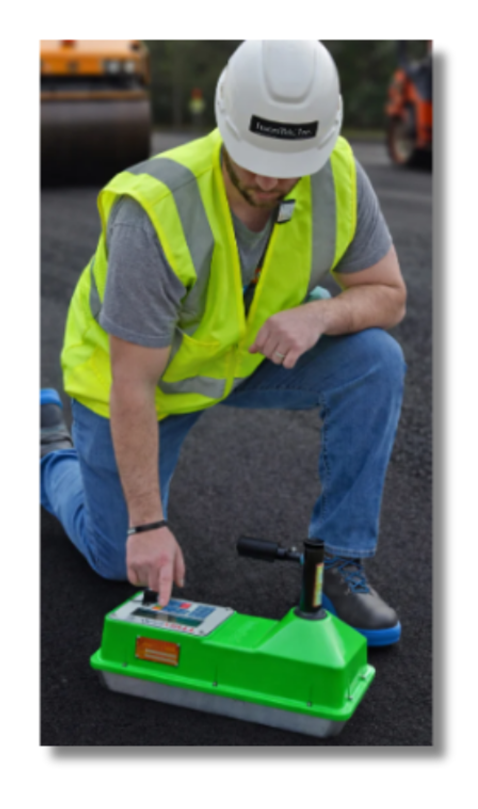

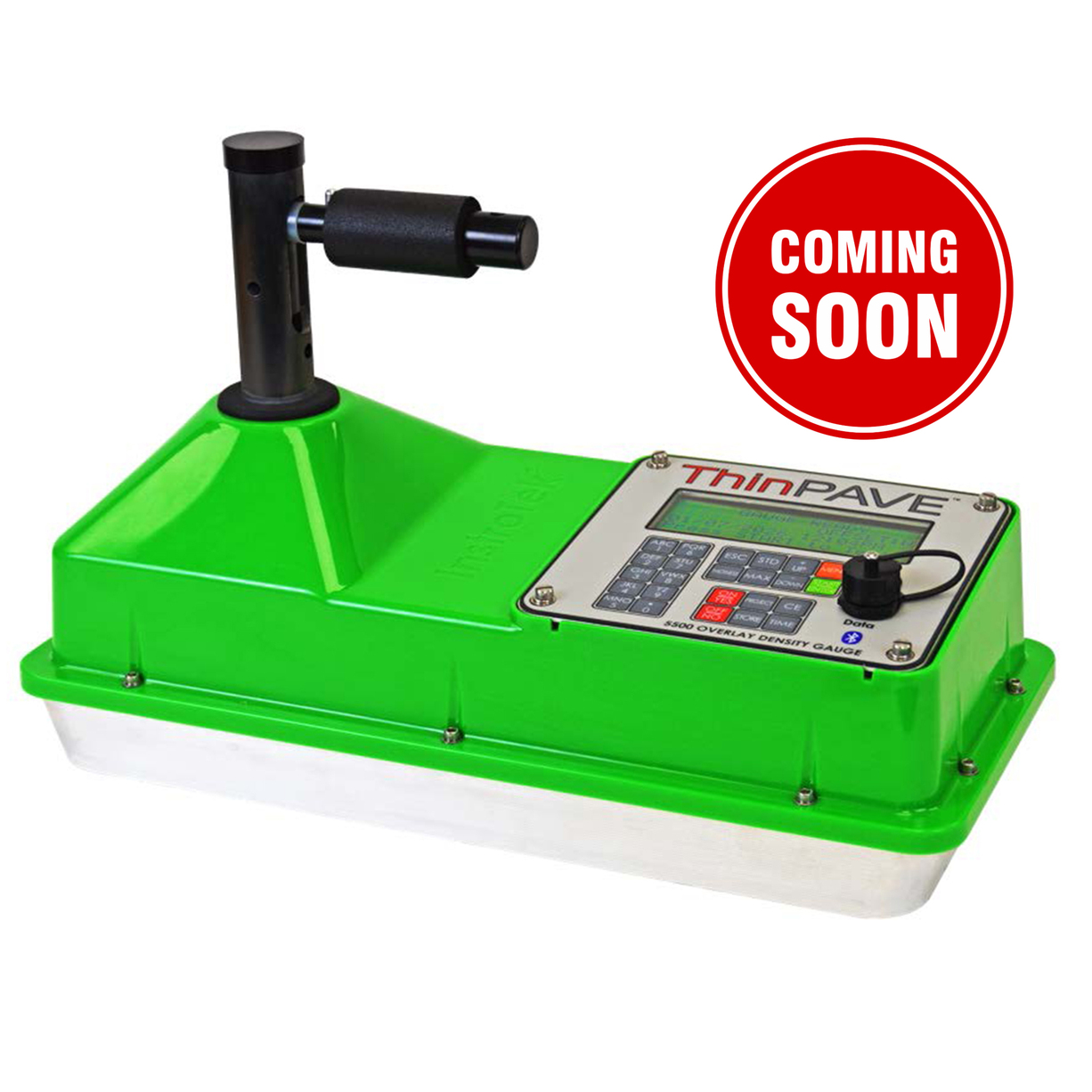

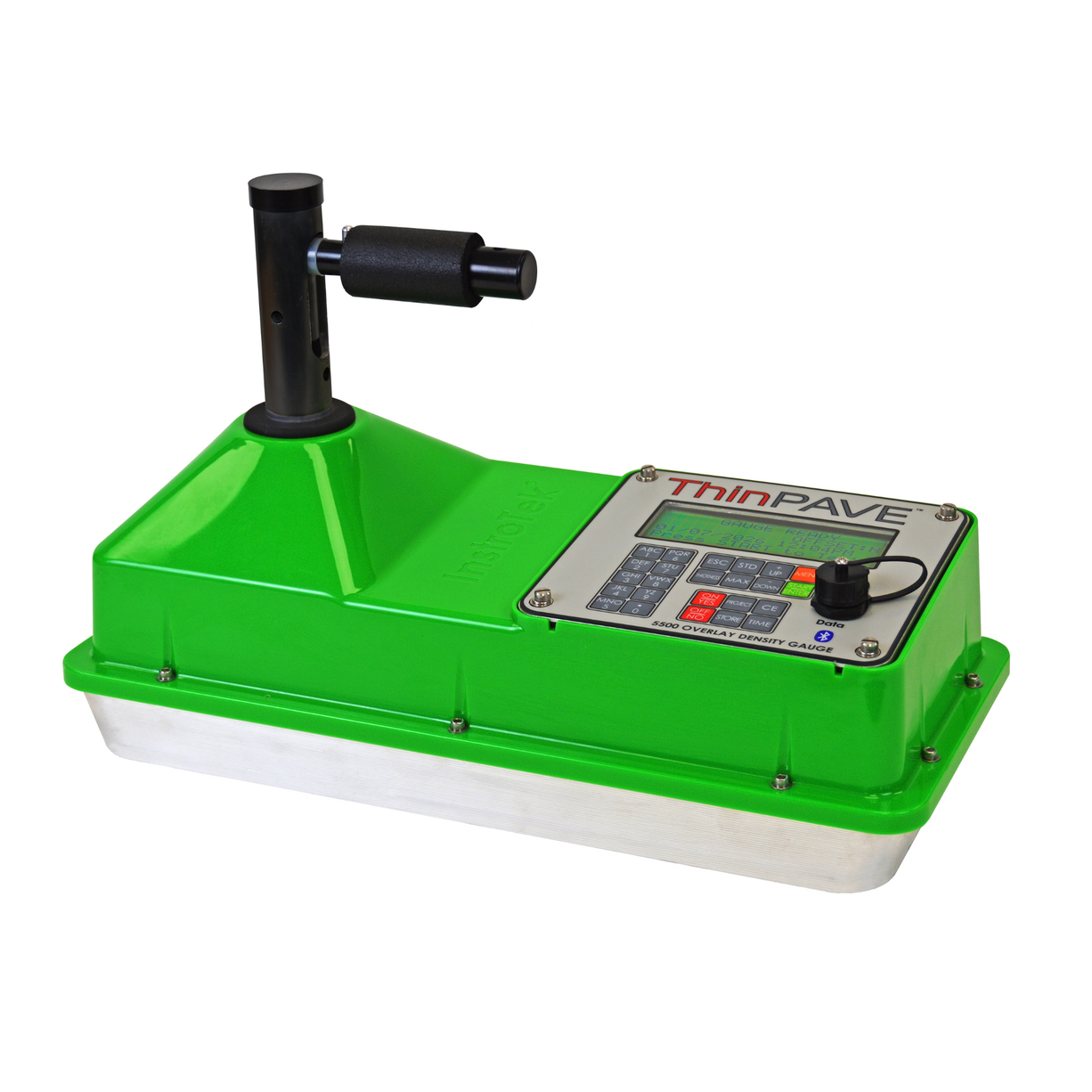

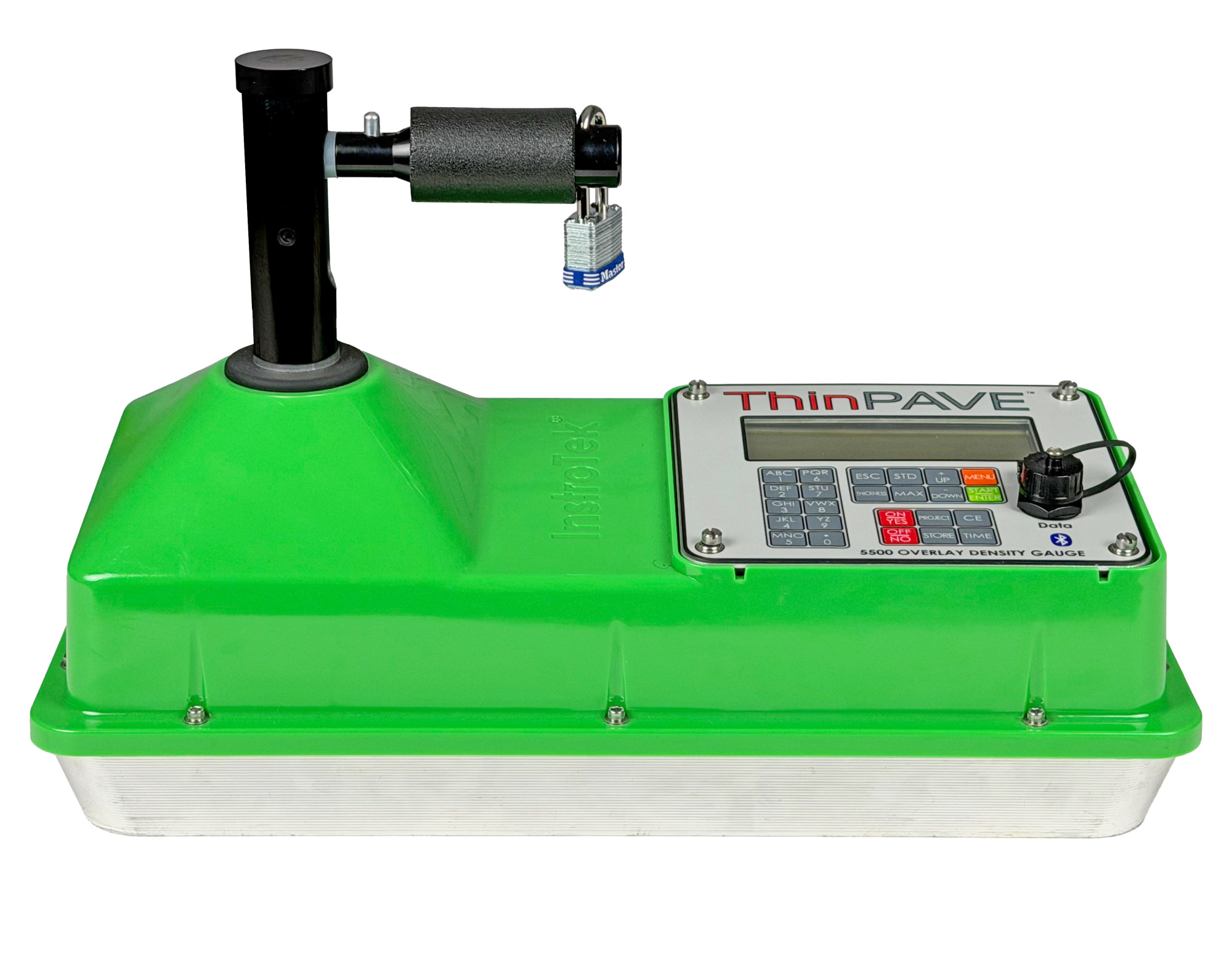

The ThinPave™ 5500 Overlay Density Gauge is the latest innovation from InstroTek, purpose-built for accurate nuclear density testing of thin asphalt and concrete overlays. Designed by the inventors of the original thin-layer

 gauge, the ThinPave 5500 delivers reliable, repeatable results across an industry-leading measurement range of 0.5 to 4 inches (12.5–100 mm).

Engineered for today’s thin lift applications, the ThinPave 5500 features a 13% smaller base footprint, reducing surface contact and minimizing the influence of surface roughness on density readings. This design not only improves measurement reliability but also makes the gauge easier to handle and transport in the field.

A fully enclosed source assembly prevents material intrusion. It eliminates the need for routine cavity cleaning, while an improved source indexing and shutter design enhances the repeatability of both standard counts and field measurements. The gauge meets ASTM D2950, AASHTO T355, and other applicable ASTM and AASHTO standards.

Get Gauge Data Access & Sharing via the MyGauge™ Mobile App.

Nuclear Gauge Cloud-Based Collaboration Is Here!

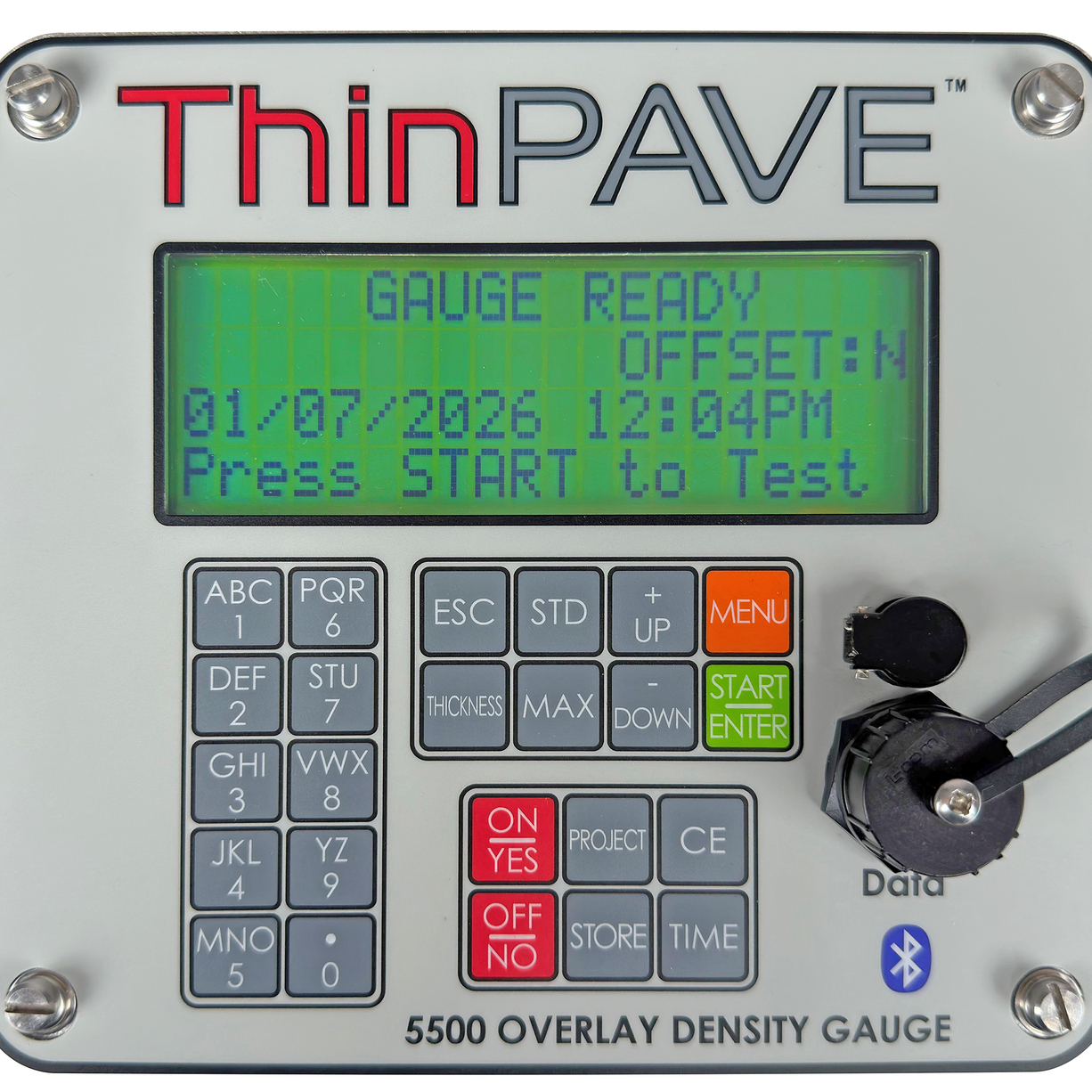

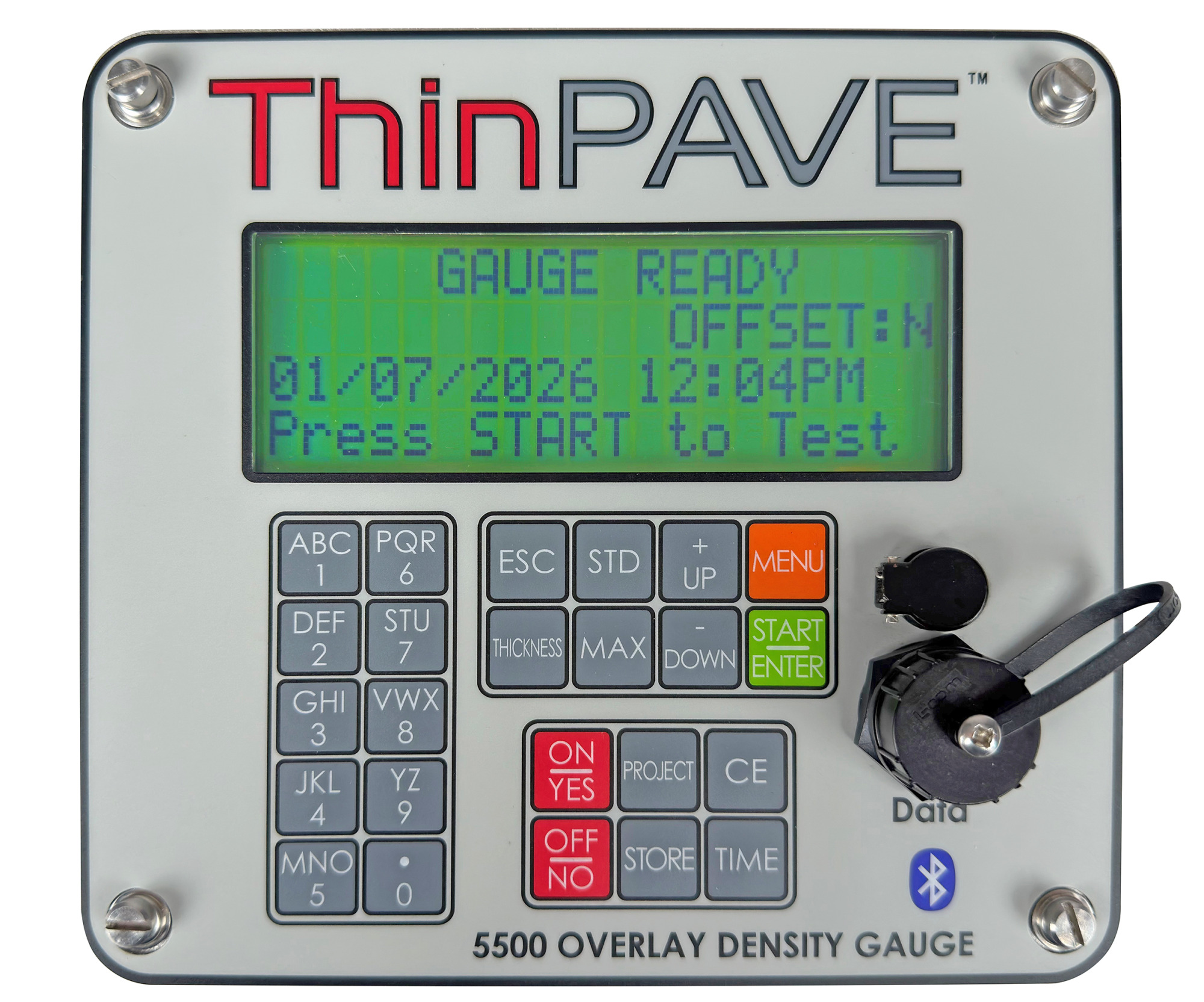

For modern, data-driven QC/QA workflows, density results can be viewed directly on the gauge display, downloaded via USB, or shared wirelessly using the MyGauge™ Nuclear Gauge Mobile App—a cloud-based solution compatible with iOS and Android devices.

Pro Grade GPS with Centimeter Accuracy

Built-in GPS delivers repeatable, professional positioning with centimeter accuracy for demanding civil applications.

The ThinPave 5500 is also available with NukeTrack™ Nuclear Gauge Tracker, integrating professional-grade RTK GPS with sub-4-inch (10 cm) accuracy. Built-in GPS ensures precise, repeatable test location tracking, improves documentation accuracy, and supports digital quality control programs without the need for external positioning equipment.

Designed for thin layers. Engineered for accuracy. Built for confidence.
ThinPave™ 5500 is the clear choice for thin asphalt and concrete overlay density testing.

Features

• Ultra-thin layer measurement: 0.5–4 in. (12.5–100 mm)
• Meets ASTM & AASHTO nuclear density testing standards
• Smaller base footprint to reduce surface roughness influence
• Fully enclosed source assembly — no routine cavity cleaning
• Improved source indexing for enhanced repeatability
• Built-in RTK GPS with sub-4-inch (10 cm) accuracy (optional)
• USB and mobile app data export (.CSV)
• Compatible with MyGauge™ Mobile App (iOS & Android)

Specifications
