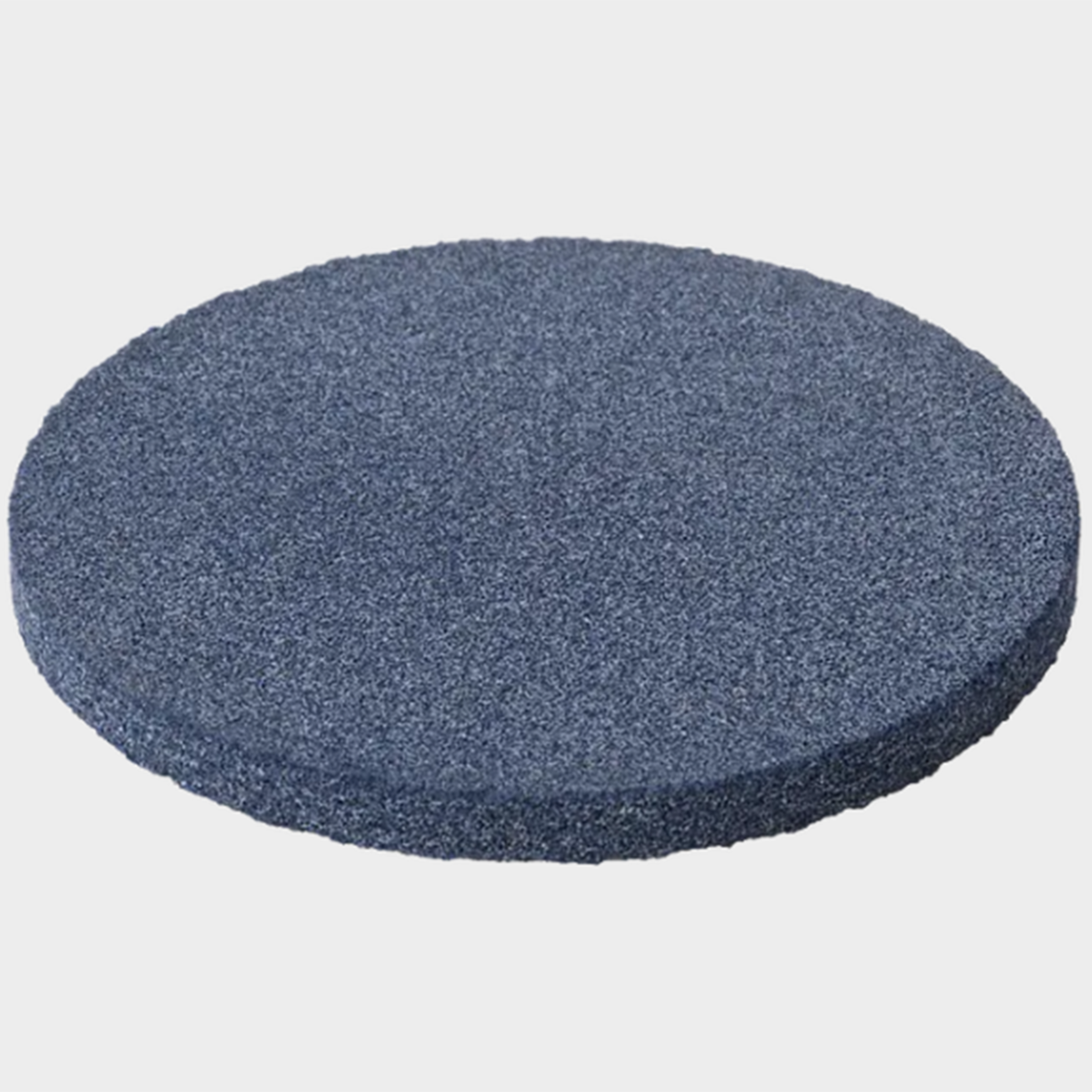

Upper Stones for Consolidation Cells

Upper Porous Stones for use in Consolidation Cells are available for these size Cells: 2"; 2.42"; 2.5"; 3"; 4"; 50mm; 70mm, 75mm and 100mm. Made from aluminum oxide, these porous stones provide stable, rigid support or soil specimens while allowing the free flow of fluids (water). These stones are 0.25" in thickness.

For a 2.5" Upper Porous Stone with a threaded stud, see HM-1220.25.11



Parts Numbers Parts Numbers HM-4184.3925 - Upper Porous Stone, 100mm: use with: 100mm Cells HM-4184.2940 - Upper Porous Stone, 75mm: use with: 75mm Cells HM-4184.274 - Upper Porous Stone, 70mm: use with: 70mm Cells HM-4184.1955 - Upper Porous Stone, 50mm: use with: 50mm Cells HM-4184.3985 - Upper Porous Stone, 4.0": use with: 4.0" Cells HM-4184.2985 - Upper Porous Stone, 3.0": use with: 3.0" Cells HM-4184.240 - Upper Porous Stone, 2.42": use with: 2.42" Cells HM-4184.240 - Upper Porous Stone, 2.42": use with: 2.42" Cells HM-4184.1985 - Upper Porous Stone, 2.0": use with: 2" Cells
