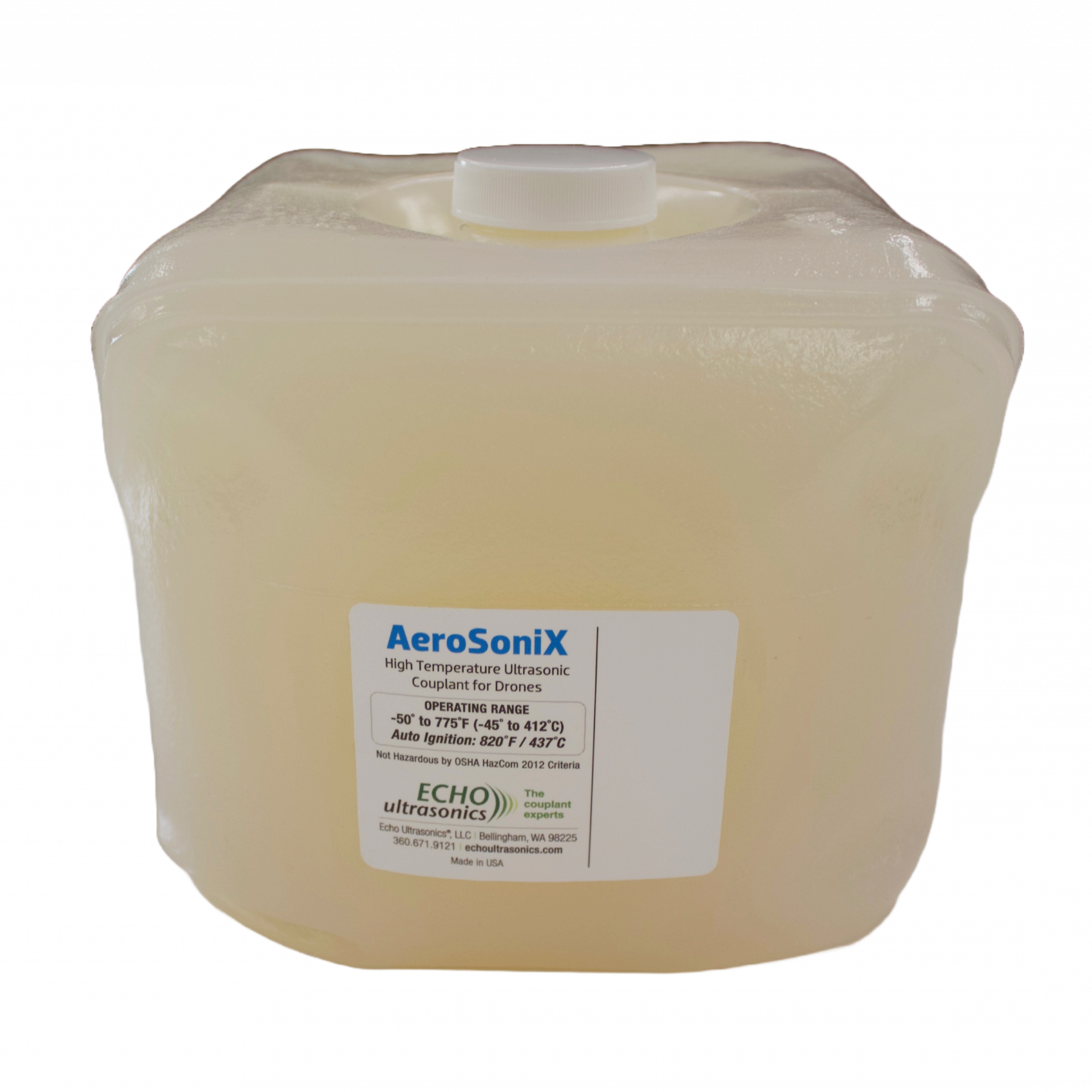

Echo Ultrasonics AeroSoniX Drone UT Couplant

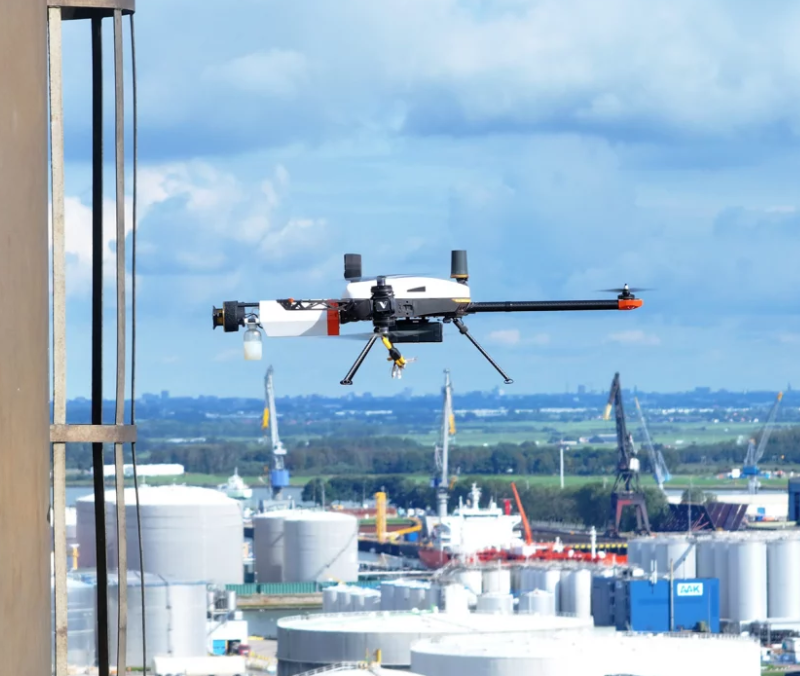

AeroSoniX is a high-temperature ultrasonic couplant engineered for drone-based inspections, providing reliable performance across a broad temperature range of -50˚ to 775˚F (-45˚ to 412˚C). Its optimized viscosity allows it to pump like a fluid but stay in place like a gel, making it ideal for applications where precision and stability are critical.
With fast surface wetting, AeroSoniX ensures there is no wait time for ultrasonic readings, improving inspection efficiency. It leaves no residue, varnish, or corrosion in drone pumps or on inspected surfaces, helping protect delicate components and extend equipment life.
AeroSoniX is perfect for technicians and engineers performing high-temperature ultrasonic inspections in drone applications, combining reliability, safety, and ease of use.
Available across Canada through Stuart Hunt & Associates.
| Operating Range |
-50˚ to 775˚F (-45˚ to 412˚C) |
| Viscosity |
≈ 55,000 cps. |
| Flash Point |
Cleveland Open Cup 649˚F (343˚C) |
| Auto-ignition |
820˚F (437˚C) |
| Packaging |
|
| Instantaneous ultrasonic response |
(does not contain plastic powders which delay ultrasonic conduction and result in difficult-to-remove residues). |
| Removal |
(does not contain plastic powders which delay ultrasonic conduction and result in difficult-to-remove residues). Excellent corrosion inhibitor. |
Features
- Ideal couplant for drones
- Broad temperature range
- Optimal viscosity
- Non-toxic, environmentally benign
- High auto-ignition point
- Very low evaporation rate
