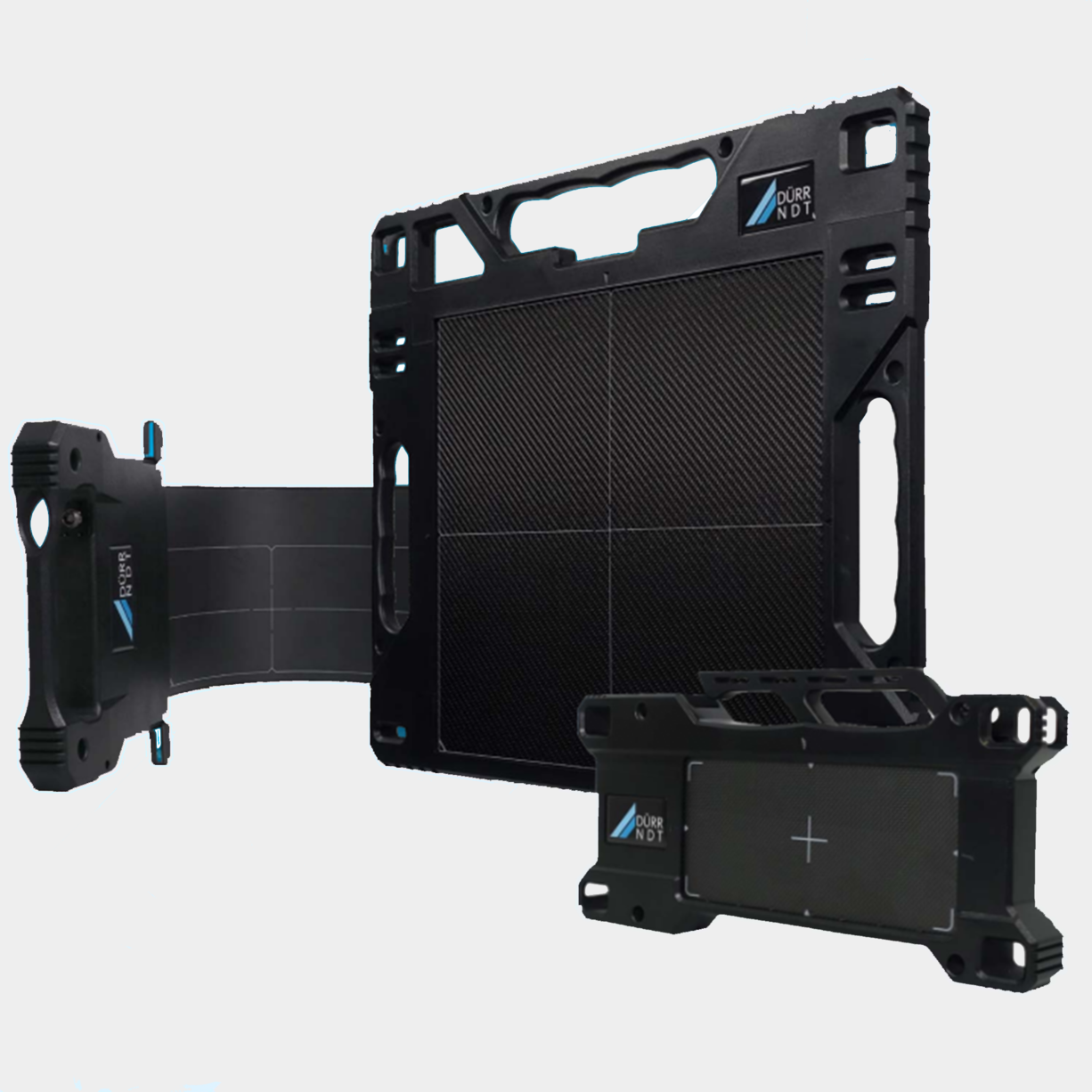

High-Resolution & Wireless D-DR Flat Panel Detectors

Durr NDT HIGH-RES & WIRELESS
D-DR SERIES FLAT PANEL DETECTORS

D-Tect X provides an optimal and time-saving NDT inspection workflow:
from calibration and image acquisition to image evaluation and data import
and export, everything you need is included and easy to use.

There are 6 models available:

  • D-DR 1025B NDT
  • D-DR 1043B NDT
  • D-DR 7 NDT
  • D-DR 1024 ND
  • D-DR 2329 NDT
  • D-DR 3643 NDT

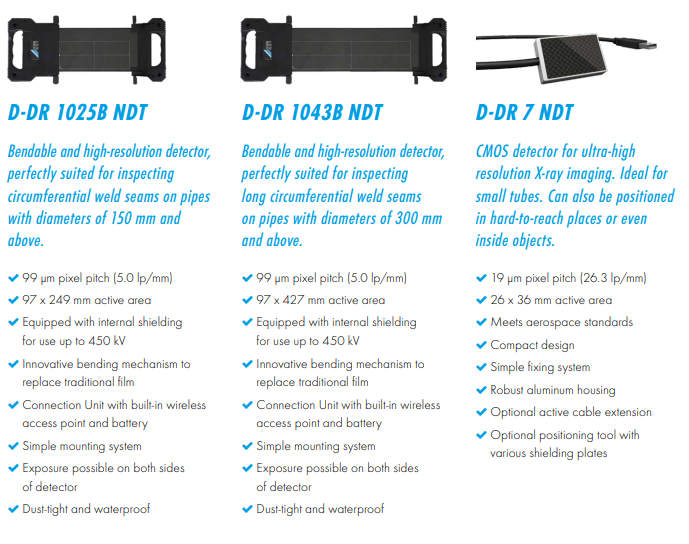

D-DR 1025B NDT Bendable and high-resolution detector, perfectly suited for inspecting circumferential weld seams on pipes with diameters of 150 mm and abov 99 μm pixel pitch (5.0 lp/mm)  97 x 249 mm active area  Equipped with internal shielding for use up to 450 kV  Innovative bending mechanism to replace traditional film  Connection Unit with built-in wireless access point and battery  Simple mounting system  Exposure possible on both sides of detector  Dust-tight and waterproof D-DR 1043B NDT Bendable and high-resolution detector, perfectly suited for inspecting long circumferential weld seams on pipes with diameters of 300 mm and above  99 μm pixel pitch (5.0 lp/mm)  97 x 427 mm active area  Equipped with internal shielding for use up to 450 kV  Innovative bending mechanism to replace traditional film  Connection Unit with built-in wireless access point and battery  Simple mounting system  Exposure possible on both sides of detector  Dust-tight and waterproof D-DR 7 NDT CMOS detector for ultra-high resolution X-ray imaging. Ideal for small tubes. Can also be positioned in hard-to-reach places or even inside objects. 19 μm pixel pitch (26.3 lp/mm)  26 x 36 mm active area  Meets aerospace standards  Compact design  Simple fixing system  Robust aluminum housing  Optional active cable extension  Optional positioning tool with various shielding plates

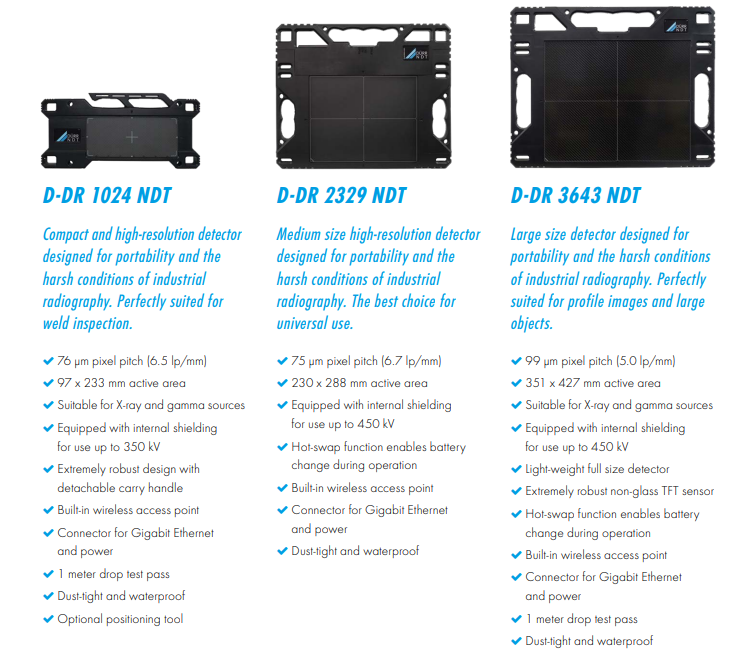

D-DR 1024 NDT Compact and high-resolution detector designed for portability and the harsh conditions of industrial radiography. Perfectly suited for weld inspection 76 μm pixel pitch (6.5 lp/mm)  97 x 233 mm active area  Suitable for X-ray and gamma sources  Equipped with internal shielding for use up to 350 kV  Extremely robust design with detachable carry handle  Built-in wireless access point  Connector for Gigabit Ethernet and power  1 meter drop test pass  Dust-tight and waterproof  Optional positioning tool D-DR 2329 NDT Medium size high-resolution detector designed for portability and the harsh conditions of industrial radiography. The best choice for universal use 75 μm pixel pitch (6.7 lp/mm)  230 x 288 mm active area  Equipped with internal shielding for use up to 450 kV  Hot-swap function enables battery change during operation  Built-in wireless access point  Connector for Gigabit Ethernet and power  Dust-tight and waterproof D-DR 3643 NDT Large size detector designed for portability and the harsh conditions of industrial radiography. Perfectly suited for profile images and large object 99 μm pixel pitch (5.0 lp/mm)  351 x 427 mm active area  Suitable for X-ray and gamma sources  Equipped with internal shielding for use up to 450 kV  Light-weight full size detector  Extremely robust non-glass TFT sensor  Hot-swap function enables battery change during operation  Built-in wireless access point  Connector for Gigabit Ethernet and power  1 meter drop test pass  Dust-tight and waterproof

Standard Operation Workflow

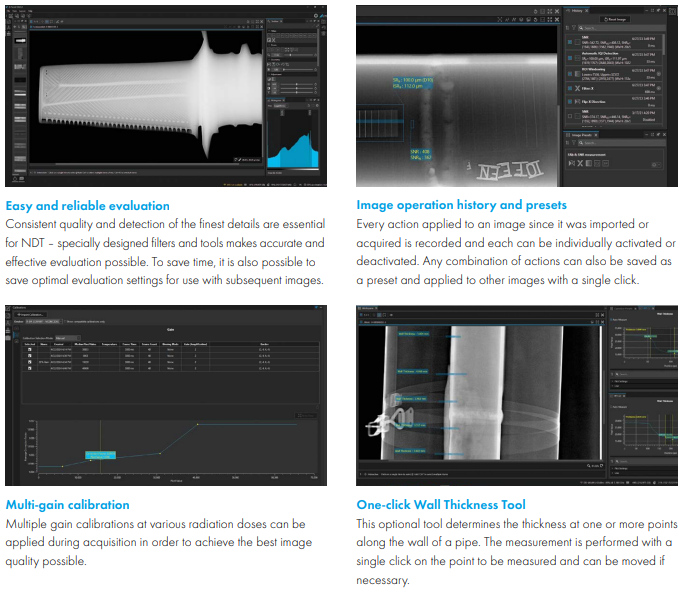

Easy and reliable evaluation Consistent quality and detection of the finest details are essential for NDT – specially designed filters and tools makes accurate and effective evaluation possible. To save time, it is also possible to save optimal evaluation settings for use with subsequent images. Image operation history and presets Every action applied to an image since it was imported or acquired is recorded and each can be individually activated or deactivated. Any combination of actions can also be saved as a preset and applied to other images with a single click Multi-gain calibration Multiple gain calibrations at various radiation doses can be applied during acquisition in order to achieve the best image quality possible One-click Wall Thickness Tool This optional tool determines the thickness at one or more points along the wall of a pipe. The measurement is performed with a single click on the point to be measured and can be moved if necessary

Features
  • Native DICONDE file format support
  • Simultaneous reference image adjustment
  • X-Filter: one-click image enhancement
  • Image history: track all performed image operations and define presets
  • Tools to assist with working with standards (ASME, ASTM, ISO)
  • Unlimited image file size support
  • Report generation via direct Excel export or DRIVE NDT
  • Advanced histogram tools
  • SNR/SNRN calculation
  • Automatic duplex IQI detection and  SRb  determination
  • Advanced wall thickness analysis
  • Image filters to assist with evaluation
  • Length, area and angle measurement tools
  • Image annotations with customizable detail information
  • Line profile tool
  • Panel calibration (offset, gain, bad pixel)
  • Multi image editing/processing
  • Unrestricted image zoom
Request a quote Download Spec Sheet
