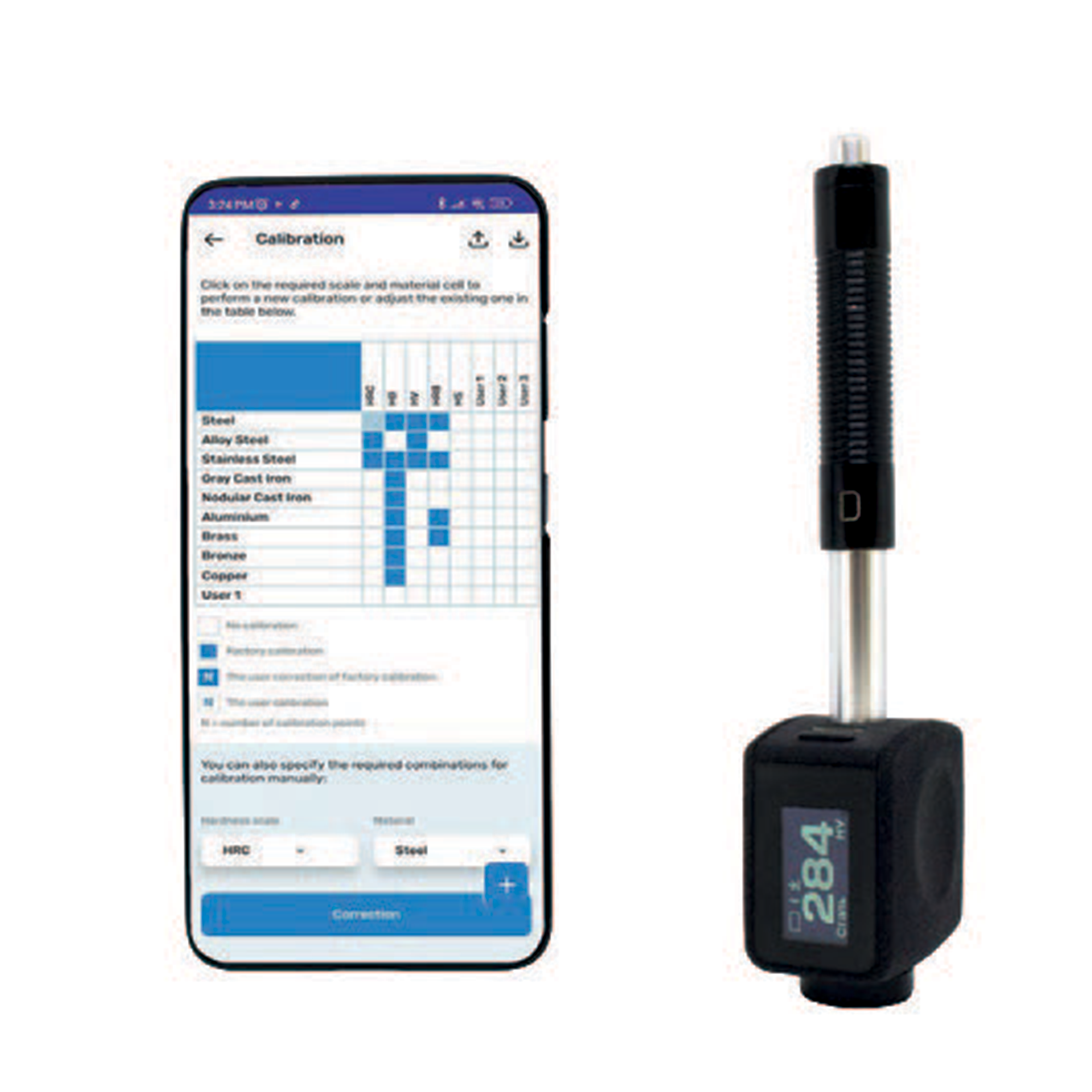

NOVOTEST Leeb Hardness Tester LAB LEEB

The NOVOTEST Lab Leeb Hardness Tester is a portable, multifunctional hardness testing solution designed for efficient field and laboratory inspections. When connected to the NOVOTEST Lab platform and paired with a smartphone, the device becomes a powerful tool for measuring, logging, analyzing, and sharing hardness test results in real time.

The system supports calibration across any hardness scale and enables advanced data processing, including graphs, histograms, and statistical analysis. Inspectors can save measurements with text, audio, photo, and video records, ensuring complete traceability and documentation.

Test reports can be generated and shared instantly via email or messaging apps, while archived data can be synchronized with cloud storage for secure access and long-term record keeping. Compact, connected, and versatile, the NOVOTEST Lab Leeb is ideal for quality control, maintenance, and inspection applications.

Features
  • Portable Leeb hardness testing for field and lab use
  • Compatible with NOVOTEST Lab platform
  • Calibration for any hardness scale
  • Advanced data analysis (graphs, histograms, statistics)
  • Photo, video, audio, and text measurement records
  • One-click report sharing via email or messaging
  • Cloud storage synchronization for secure data management
Specifications
Scales:
HRC, HRB, HB, HV, HL, MPa and can be calibrated for any other scale
Materials:
Precalibrated for steel, alloy steel, tainless steel, cast iron, nodular iron, aluminum, brass, bronze, copper Additional custom scales and materials for calibration
Measurement uncertainty:
4 %
Measuring direction:
0°, 45°, 90°, 135°, 180°
Measurement range:
0…2000 HV
Data storage:
NOVOTEST Lab App – limited only by the memory of the Android gadgets - Cloud storage – limited only by the memory of the Cloud storage
Test load:
HV1 (9.8 N) or HV5 (49 N), depending on the device type
Data transfer:
Wireless connection with Android smartphones, tablets, etc.: - NOVOTEST Lab App PC: - Web interface – NOVOTEST.INFO
Display:
0.66″ (64×48)
Power supply / Charging:
Built-in Lion battery / USB 5V
Interfaces:
USB-C (charging and PC connection), Bluetooth BLE (for NOVOTEST Lab app)
Batteries life:
10 h
Battery:
Built-in lithium-ion battery, 3.7V 750mAh, up to 24 hours of operation
Operating environment:
Temperature: -30°C ~ 60°C, Humidity: <95% R.H. at 35°С
Dimensions:
153×40 mm
Dimensions and weight of tester:
150x50 mm / 0.075 kg
