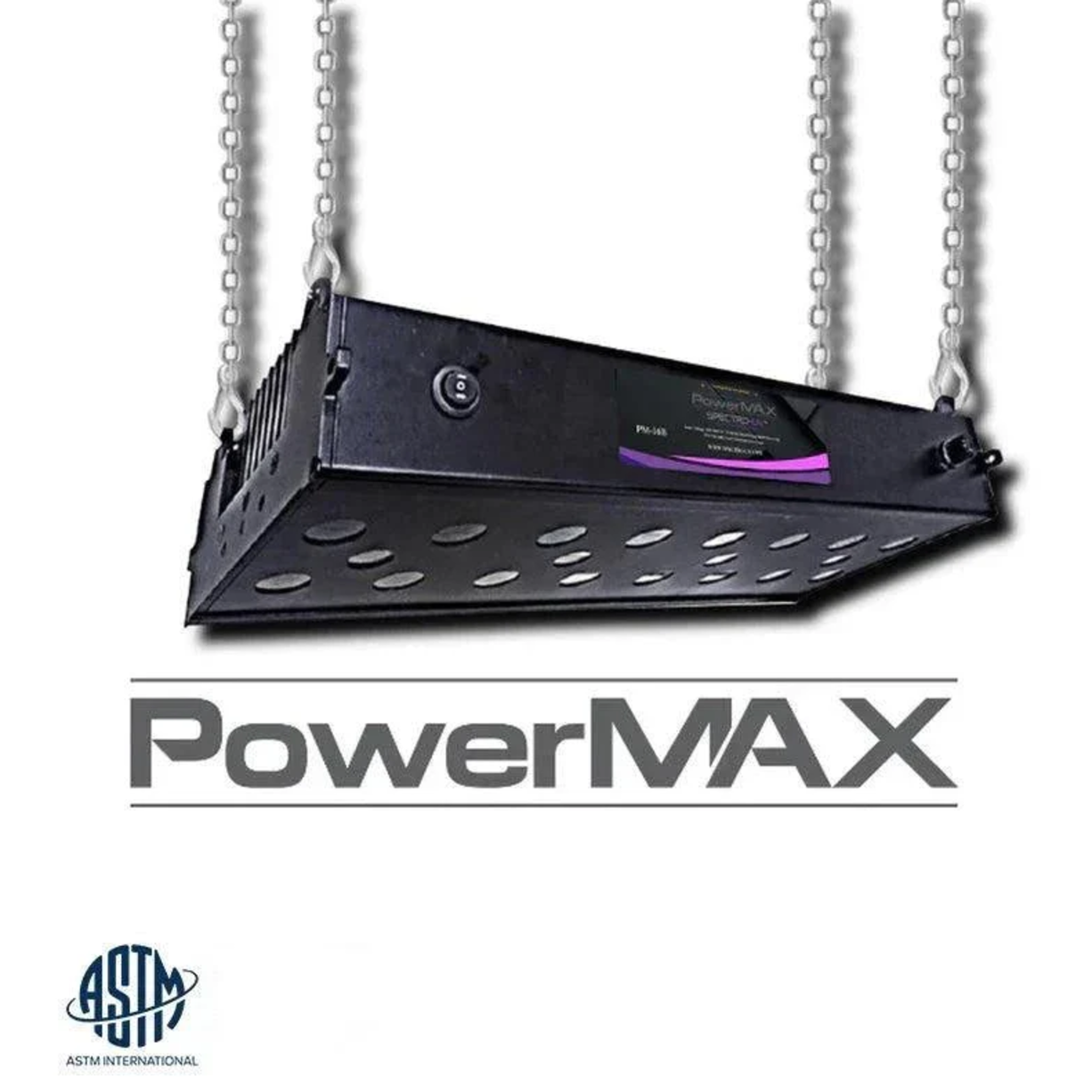

PowerMAX UV-A LED Panel Flood Lamp PM-16B

The PowerMAX 365 Series Ultraviolet (365nm) overhead panel flood lamp (PM-16B) is the ultimate choice for nondestructive testing (NDT) applications. Engineered for precision and efficiency, this lamp delivers powerful UV illumination for thorough inspections across a wide range of industries. Its advanced UV technology ensures superior clarity, revealing fluorescent indicators, cracks, and contaminants with ease.

UV-A Intensity Range: 6500µW/cm2 at 15"(38cm).

CERTIFIED COMPLIANCE: ASTM E3022

Also available: the PM-8B model featuring 8 UV-A LEDs for smaller inspection areas or budget-conscious applications.

Features

• Superior Illumination: Equipped with 16 UV-A (365nm) LEDs and 4 white LEDs for optimal inspection performance
• Precision Control: Integrated electronic intensity control knob for flexible operation
• Instant Operation: No warm-up time with immediate ON/OFF functionality
• Extended Durability: Long-lasting LEDs with exceptional 40,000-hour lifespan
• Uniform Coverage: Even beam profile with no hotspots for consistent inspection results
• Optical Excellence: Built-in UV-A pass filter ensures accurate fluorescent indication
• Rugged Construction: Durable aluminum housing for industrial environments
• Dual-Light Capability: Switchable between UV and white light modes
• Thermal Management: Active cooling system with fans for enhanced performance during extended use
• Complete Certification: ASTM E3022 compliant and meets ISO 3059 specifications

Specifications
