5-Groove Wedge

These 5-Groove Wedges are expertly designed for effortless setup and use. As a universal test wedge compliant with ASTM E2737, they come in four distinct versions. Choose based on the most demanding material requirements for your application, ensuring optimal performance and reliability.

About ASTM E2737

The standard ASTM E2737 describes the evaluation of DDA systems for industrial radiology. It is intended to ensure that the evaluation of image quality, as far as this is influenced by the DDA system, meets the needs of users and their customers and enables process control and long term stability of the DDA systems.

These tests are to monitor the system performance for degradation and to identify when action needs to be taken if the system degrades by a certain level - i.e. influenced after repairs, hardware / software upgrades.

Scope of Supply

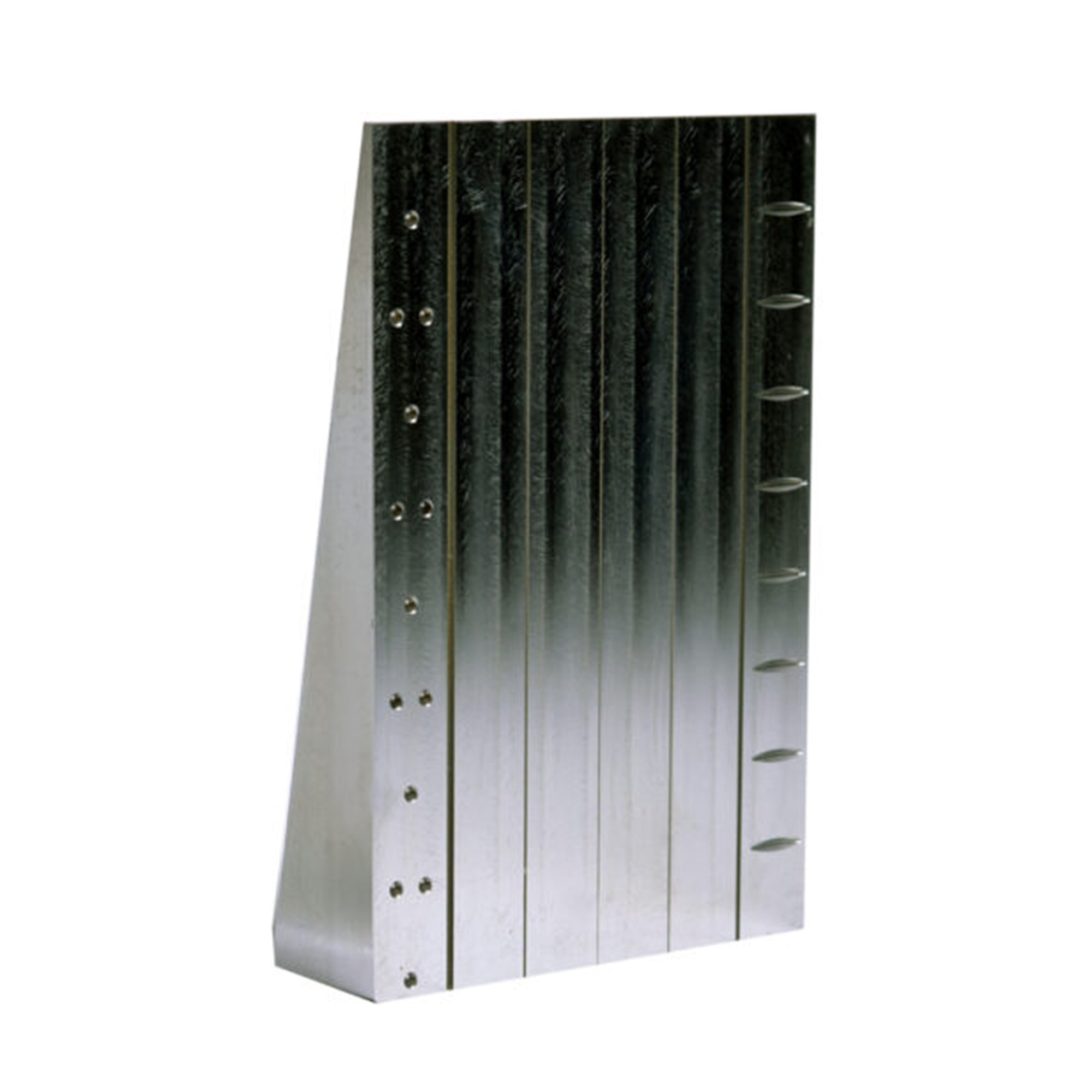

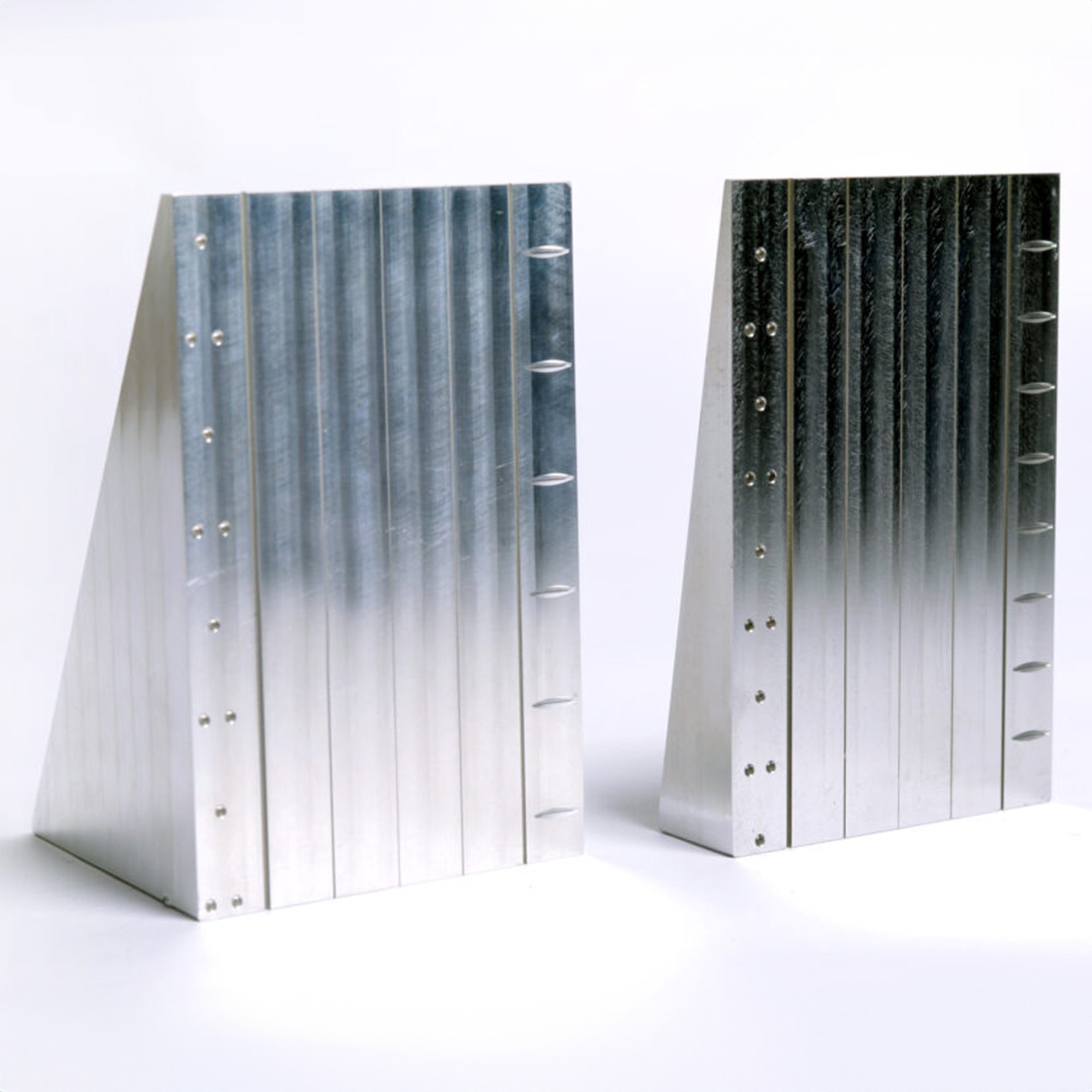

Heavy Metal, Stainless Steel (11 00170). Alloy: X2CrNiMo17-12-2 (V4A), 1.4404 (316L)
Light Metal, Aluminum (11 00171). Alloy: Al Zn Mg Cu0.5, EN AW-7022 T651, 3.4345
Heavy Metal, Inconel (11 00172). Alloy: Inconel 718, 2.4668
Light Metal, Titanium (11 00173). Alloy: Ti Al6 V4, 3.7164, Grade 5
All versions include a Manufacturer Declaration of Conformity and Dimensional Certification
