DynamIx HR2
High-Resolution Digital Inspection for NDT Applications

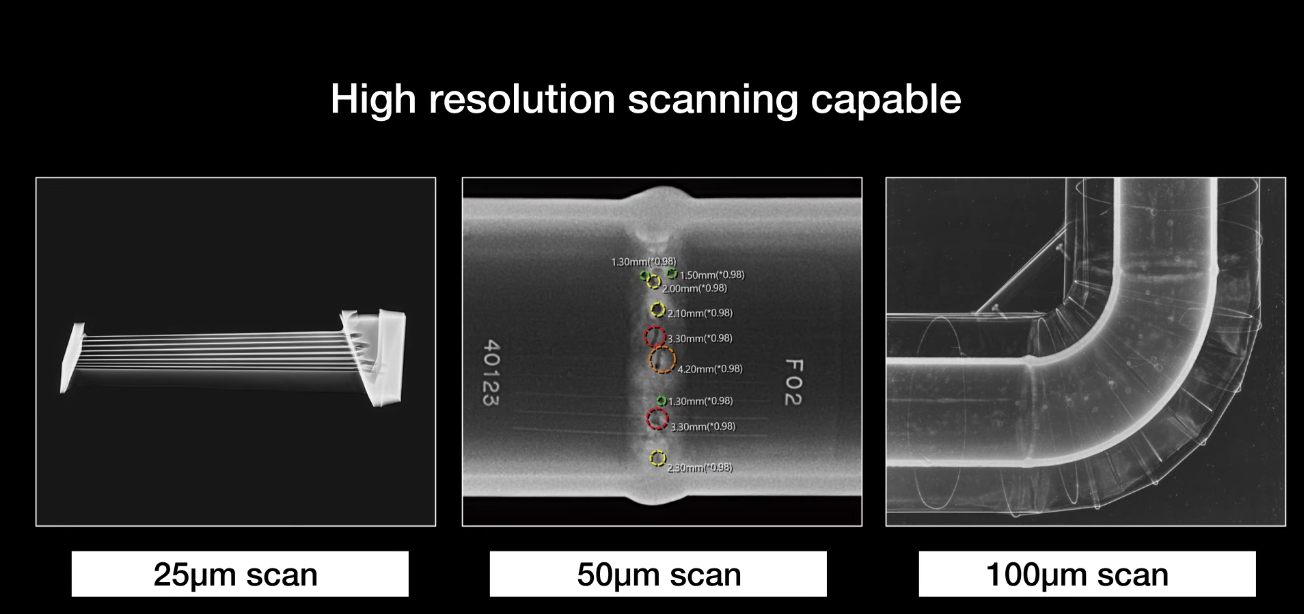

The DynamIx HR2 is a computed radiography (CR) system designed for precise, non-destructive testing (NDT) across industries such as aerospace, oil & gas, and manufacturing. It delivers high-resolution readings from 25 μm to 100 μm pitch, ensuring accurate inspection of parts without damaging the original pieces.
How It Works
The DynamIx HR2 uses advanced image processing and a wide dynamic range to provide highly accurate inspections. Users insert an imaging plate into the reader, which then digitizes the image for analysis on a connected computer. Presets can be configured for consistent, one-click data retrieval and optimized workflow.

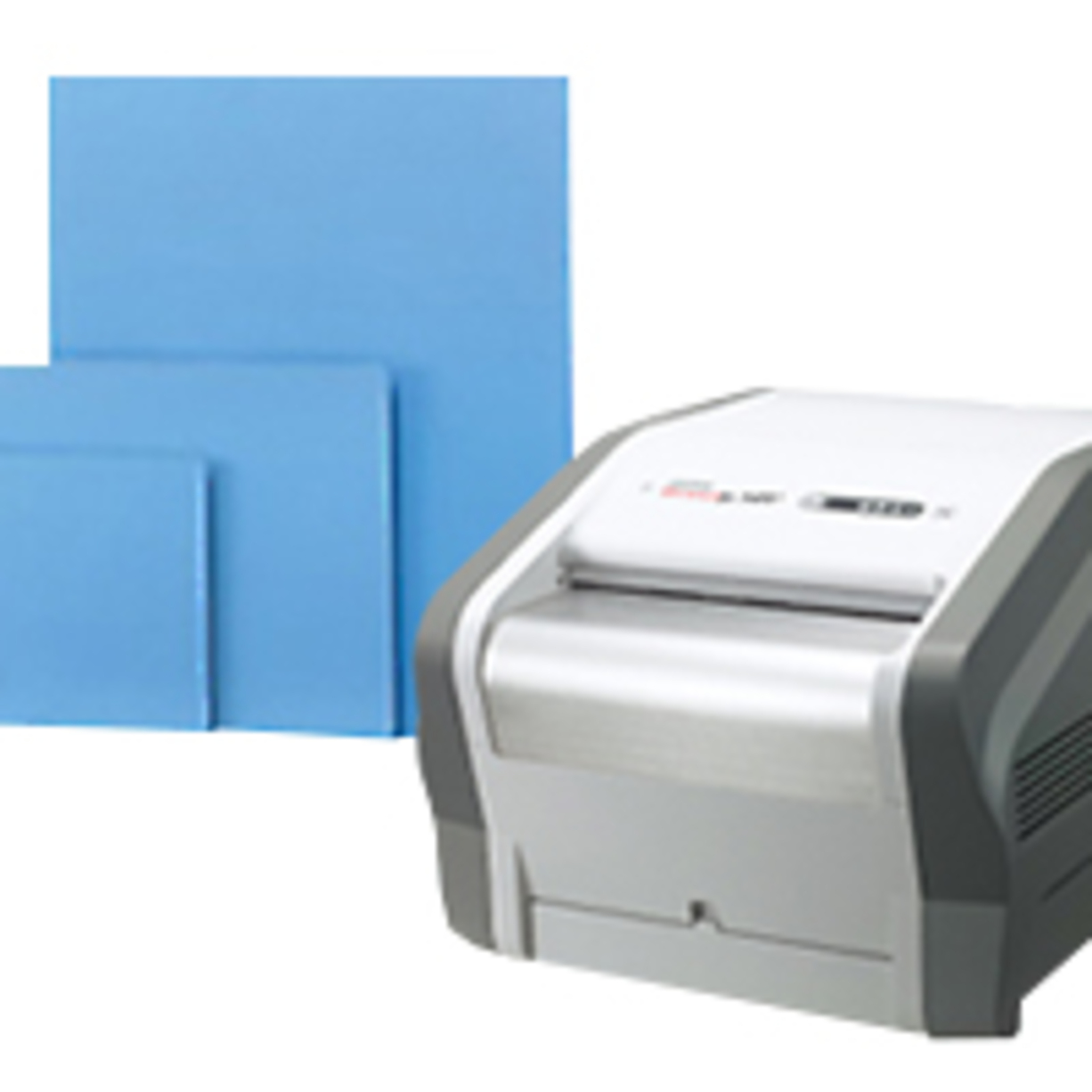

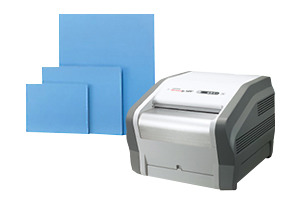

Imaging Plates
The DynamIx HR2 supports multiple types of computed radiography plates:
-
Strip-form type
-
Fixed-size type
-
Hand-held type
Custom plates can also be created for unique inspection needs, maximizing flexibility and efficiency.
|
The image reader receives an IP and ejects it from the front. This unique design makes it possible to read IPs of up to 152 cm long in a narrow space. A sequence of operations can be carried out in the same place with just a few actions.
|
|
DynamIx Special Cut IP System provides an IP optimally shaped for an inspection object. To utilize IPs of various shapes, special tools have been developed dramatically reducing limitations. Now a variety of objects can be inspected at high accuracy.
Why Choose a Fujifilm Computed Radiography System?

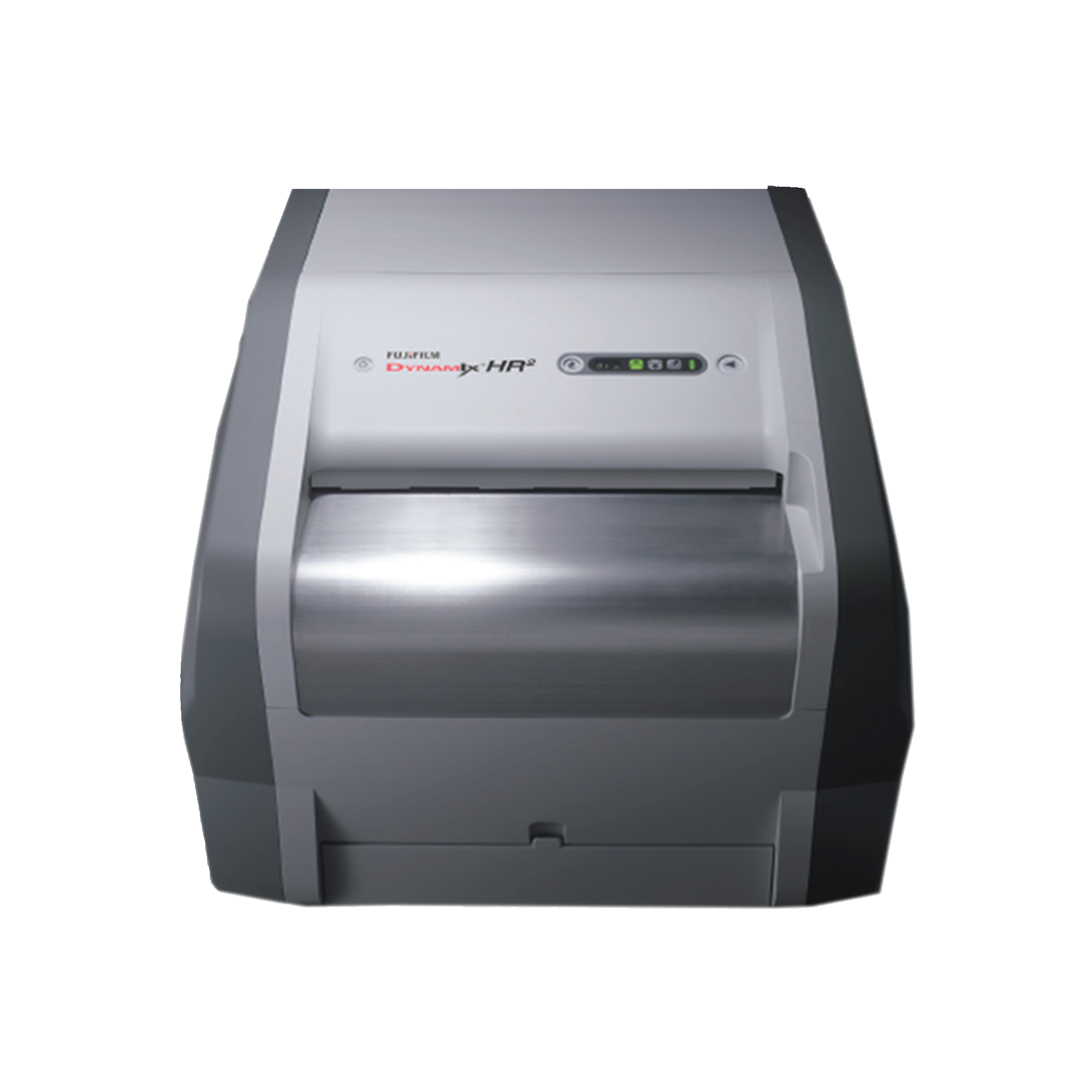

At Fujifilm, our computed radiography technology offers comprehensive readings to make inspection easier. The FUJIFILM Dynamlx HR2 is a high-resolution CR system that reads images using a small workspace. The Dynamlx HR2 is easy to use, allowing users to insert CR imaging plates with one hand.
When using the Dynamlx HR2, you insert the image plate through the top of the image reader, and the plate ejects from the front once complete. Though it is a narrow space, the unique design can read imaging plates up to 152 cm long. The CR system has a reading density from 25 μm to 200 μm.
The CR system can also carry out several operations with just a few actions, ensuring you receive an extensive analysis of the product you're testing.
Features
- High Image Quality: Captures clear, detailed images regardless of material thickness or complexity.
- Flexible Inspection Options: Imaging plates can bend to the object being inspected, making complex geometries easier to analyze.
- Easy Handling: Hand-held insertion tray allows quick, ergonomic placement of imaging plates.
- Real-Time Analysis: Fully compatible with DynamIx VU software, enabling instant review of inspection results.
Specifications
