XRS3-4-MD

 NEW Making the unseen seen! Versatile and Adaptable!

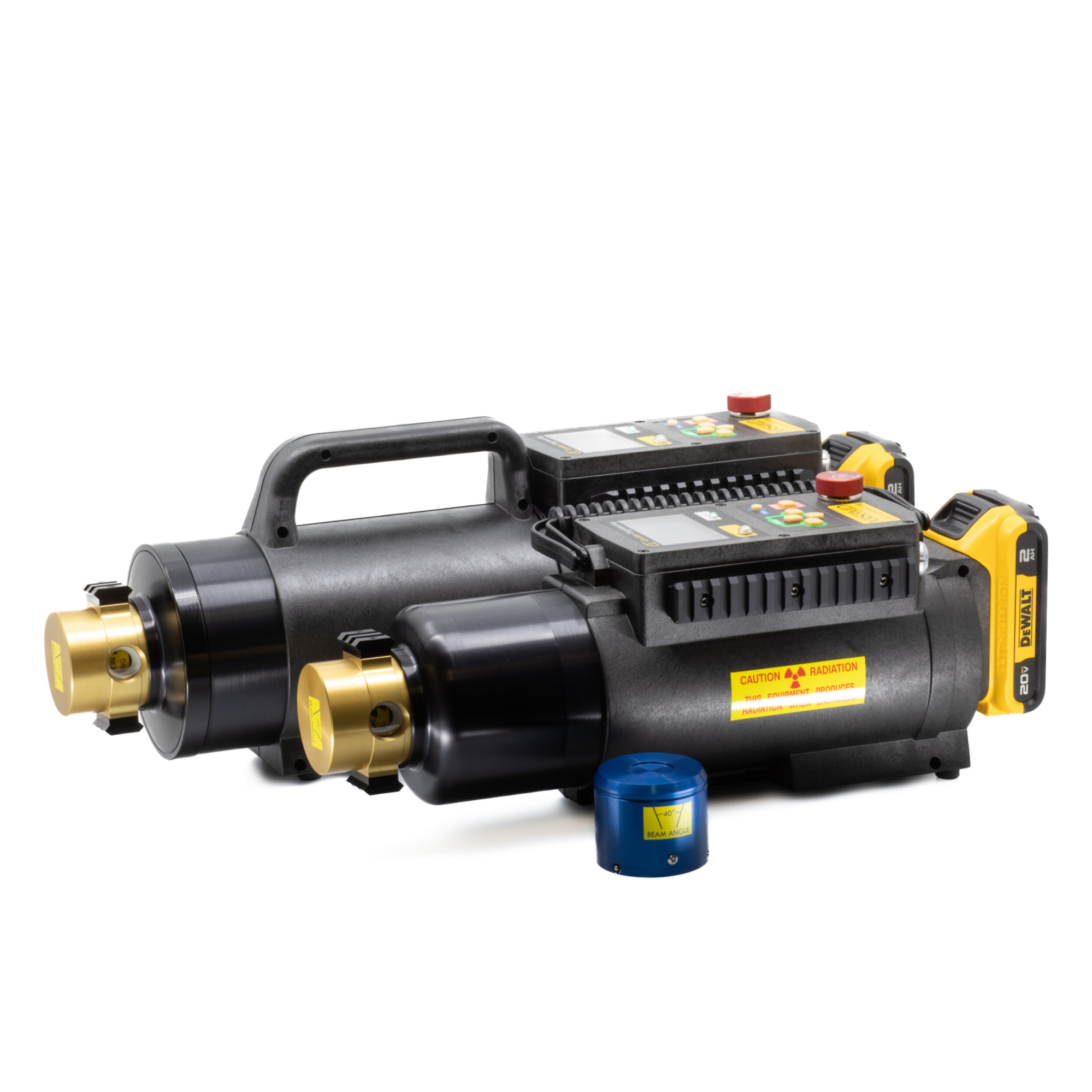

Introducing the NEW XRSMD (Multi-Directional) Series Portable X-ray Generator. The XRS3MD and XRS4MD are the first of their kind to combine front and rotational side beams into a single unit.

Blue Front beam cap                                       Gold Side beam cap
Compatible with existing accessories                       Rotates 360° Operate in tight space
Minimized image edge fade



Pulsed X-ray Advantages
Penetrating power in a small container
Utilitarian design - DeWalt battery, tripod mounts, picatinny rail, removable top plate
Lightweight - less than 20 lbs
Safety - no radioactive material, minimal leakage, short exposure time
Easy to use - One input variable

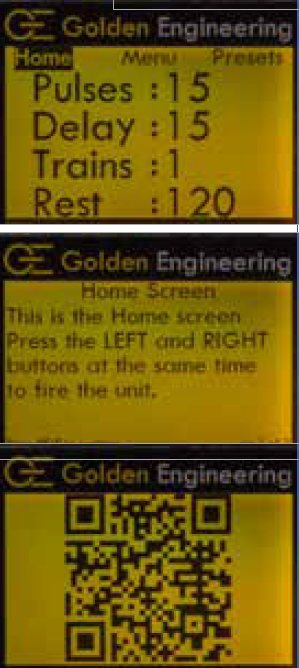

All-New Graphic Display

• Larger text and graphics
• Viewable in direct sunlight
• Colored text and backlight
• Extended temperature range
• Help button – access on-board context-sensitive help

QR Code - access additional information online



Field-Interchangeable Caps
Adapt to the situation
• Direct X-ray beam forward or any angle out the side








Lemo connector above battery for easier access

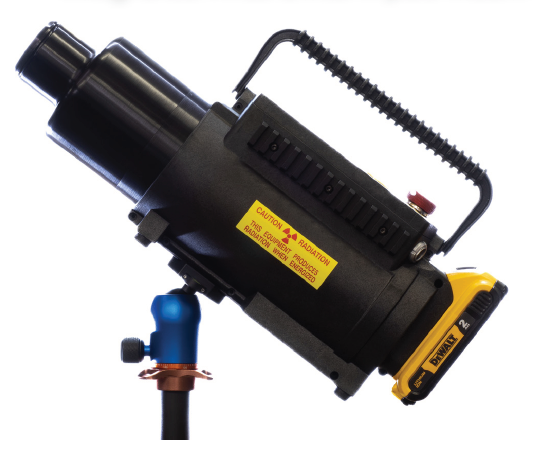

  Integrated Arca Swiss tripod mount

Specifications
