XR150 GFX 20V

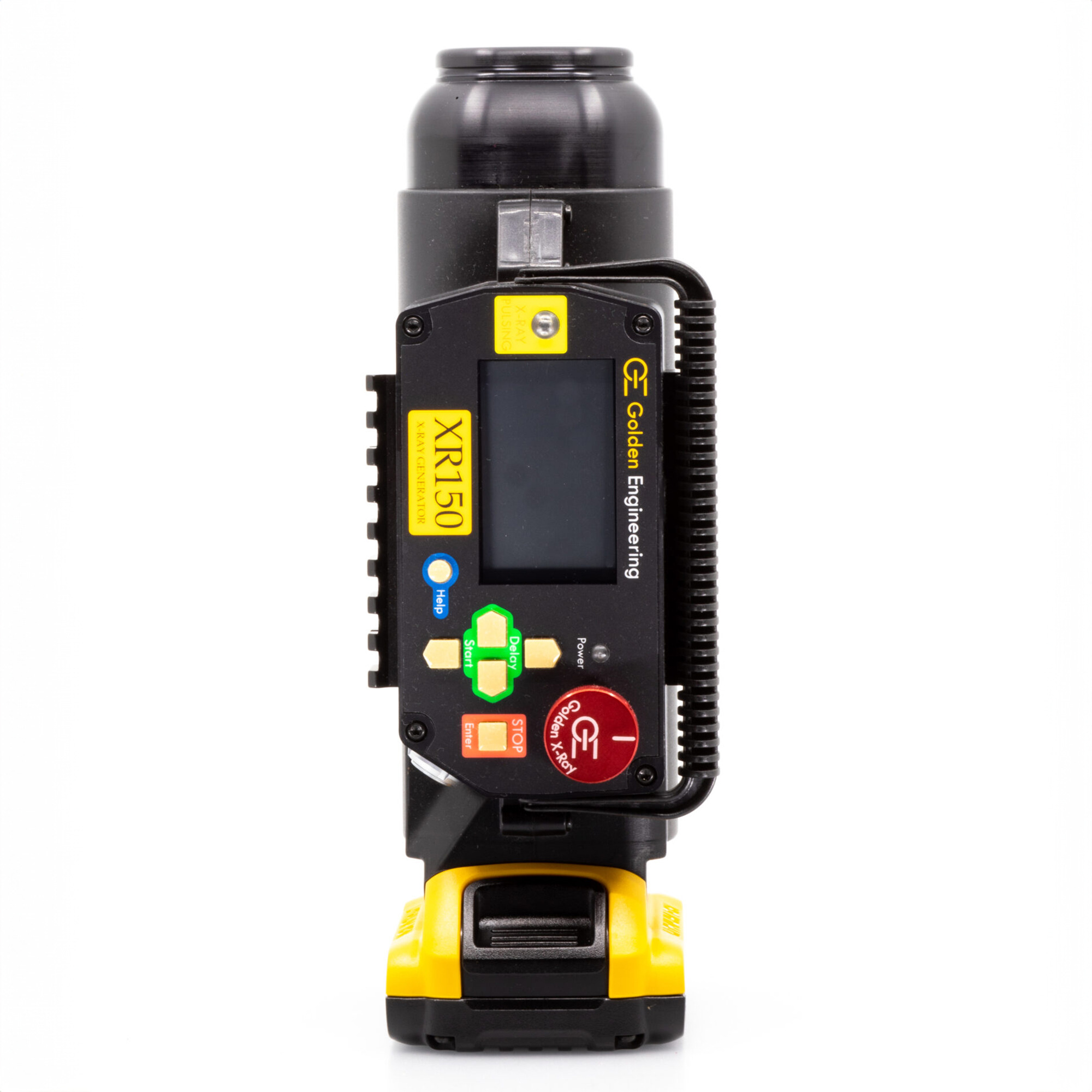

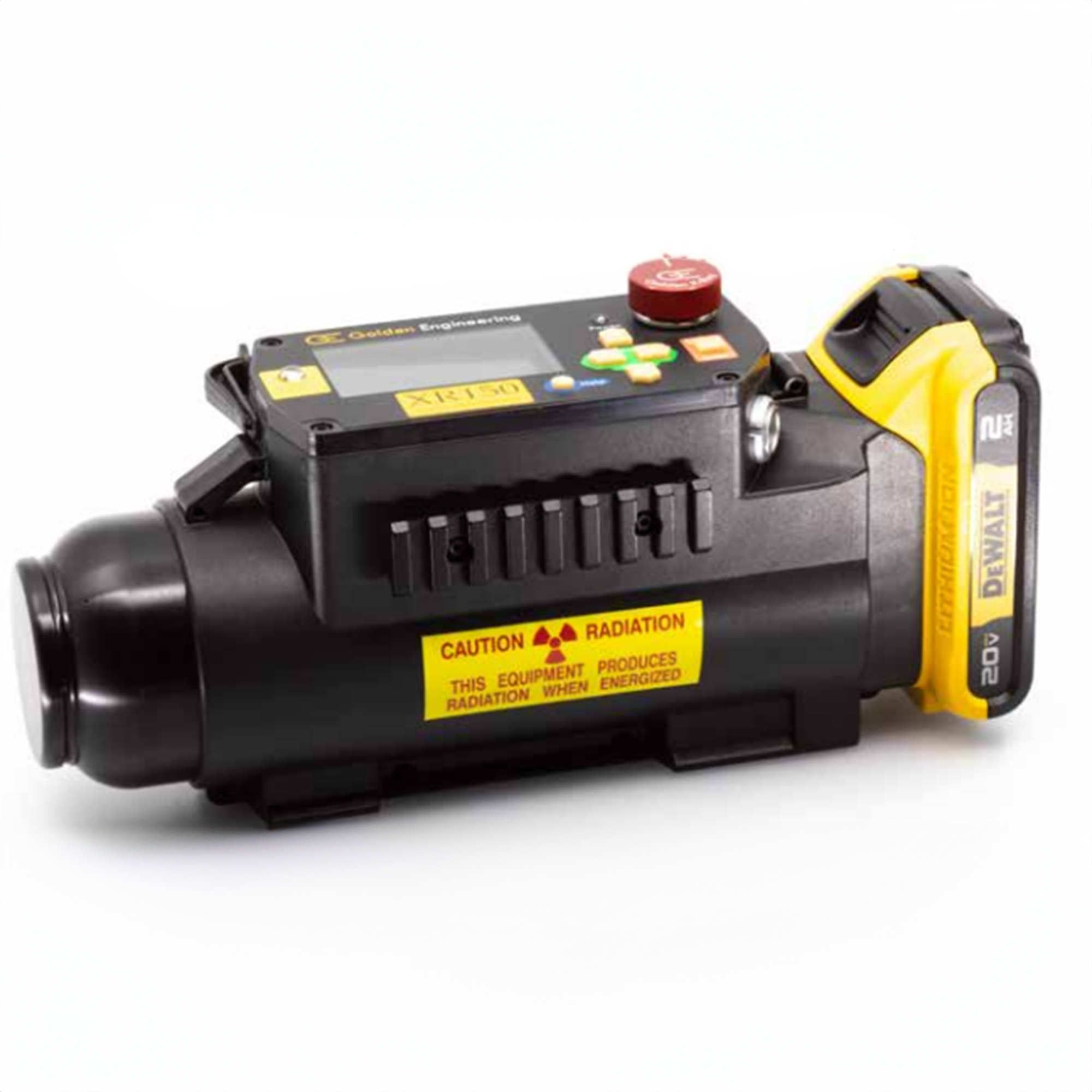

The XR150 X-ray generator is a 150kV, battery powered, pulsed X-ray generator used primarily for security applications. Golden Engineering introduced the XR150 in 1993 for applications requiring extreme portability. Powered by DeWalt® Li-Ion battery technology with a Graphics Display, the XR150 20V version has the best performance and size combination in the industry
Pulsed X-ray Advantages
Penetrating power in a small container
Utilitarian design - DeWalt battery, tripod mounts, picatinny rail, removable top plate
Lightweight - less than 20 lbs
Safety - no radioactive material, minimal leakage, short exposure time
Easy to use - One input variable
All-New Graphic Display
• Larger text and graphics
• Viewable in direct sunlight
• Colored text and backlight
• Extended temperature range
• Help button – access on-board context-sensitive help
• QR Code - access additional information online
Features
- Weighs 6 pounds
- 20V Battery
- Graphics Display
- Easily Accessible Lemo Connector
- External Tripod Mount
- Picatinny Rails
Specifications

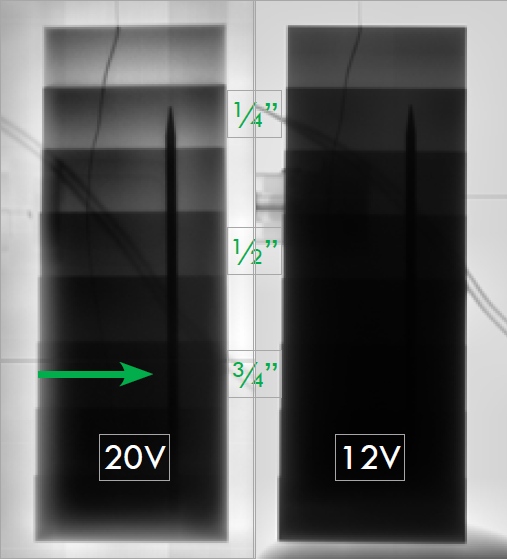

0.75″ :
steel penetration
9000 pulses:
per battery charge
Dimensions (with battery)(with Picatinny Rails) (without key:
L: 10.49” (26.65 cm) W: 3.54” (8.99 cm) H: 4.71” (11.96 cm)
Weight (with battery):
5.7 lbs. (2.58 kg)
Average Output Dose*:
2.4 mR per pulse
Pulse Rate:
10 pulses per second
Operating Temperature:
-4 to 158 °F (-20 to 70 °C)
IP Rating:
IP 54
