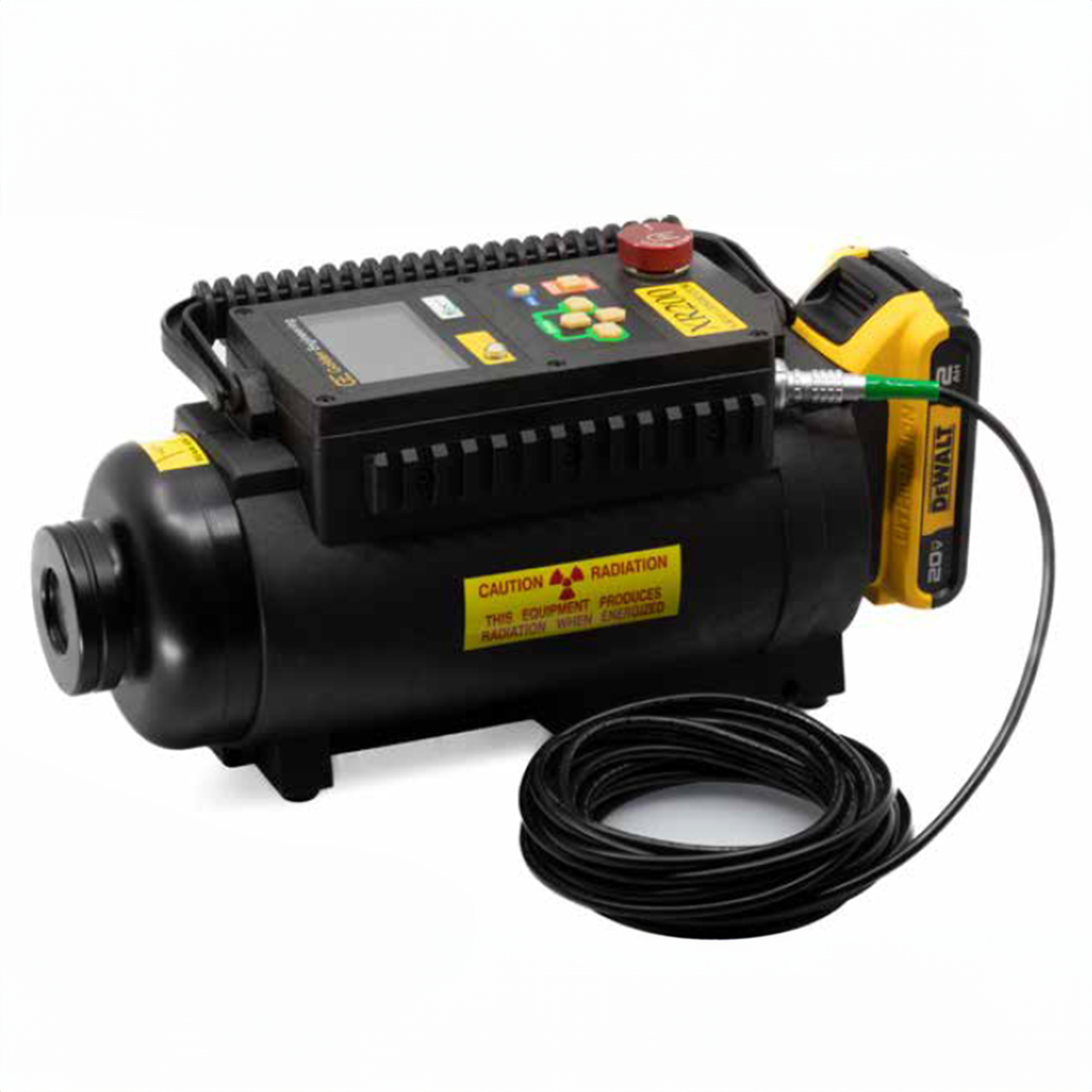

XR200 20V GFX

The XR200 is a 150 kV, battery powered, pulsed X-ray generator used in security and light industrial applications.  Golden Engineering introduced the XR200 in 1997 as the replacement of THE INSPECTOR X-ray Model 200.

Sharing the same electronics, housing design and battery pack as the XRS3 generator enhances the versatility of both models.  A field replaceable tube and modular concept make the XR200 easy to service and maintain.  The robust single package design withstands the extreme environments that field portable X-ray generators commonly encounter. The generator is powered by a DeWalt® battery pack available worldwide. A pulse rate of 25 pulses per second makes it the fastest of all Golden Engineering models.

A combination of longevity and serviceability has made the XR200 Golden Engineering’s top selling model.

Pulsed X-ray Advantages

Penetrating power in a small container

Utilitarian design - DeWalt battery, tripod mounts, picatinny rail, removable top plate

Lightweight - Weighs just 11 lbs

Safety - no radioactive material, minimal leakage, short exposure time

Easy to use - One input variable

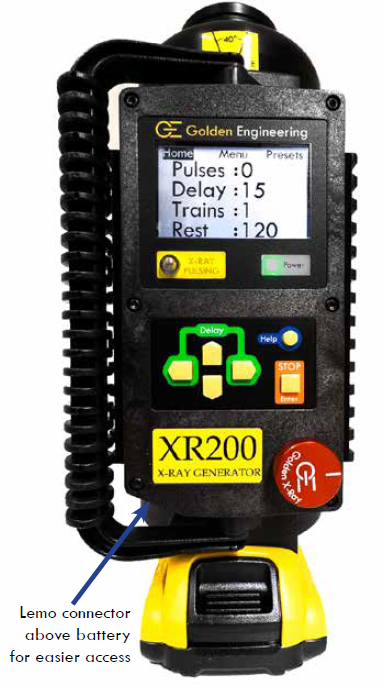

All-New Graphic Display

• Larger text and graphics
• Viewable in direct sunlight
• Colored text and backlight
• Extended temperature range
• Help button – access on-board context-sensitive help

QR Code - access additional information online

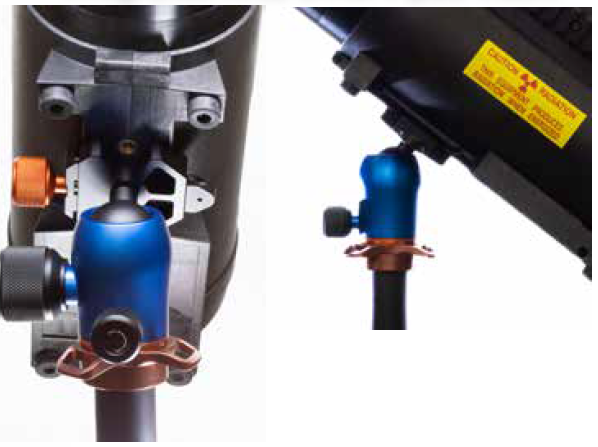

  Integrated Arca Swiss tripod mount

Specifications
