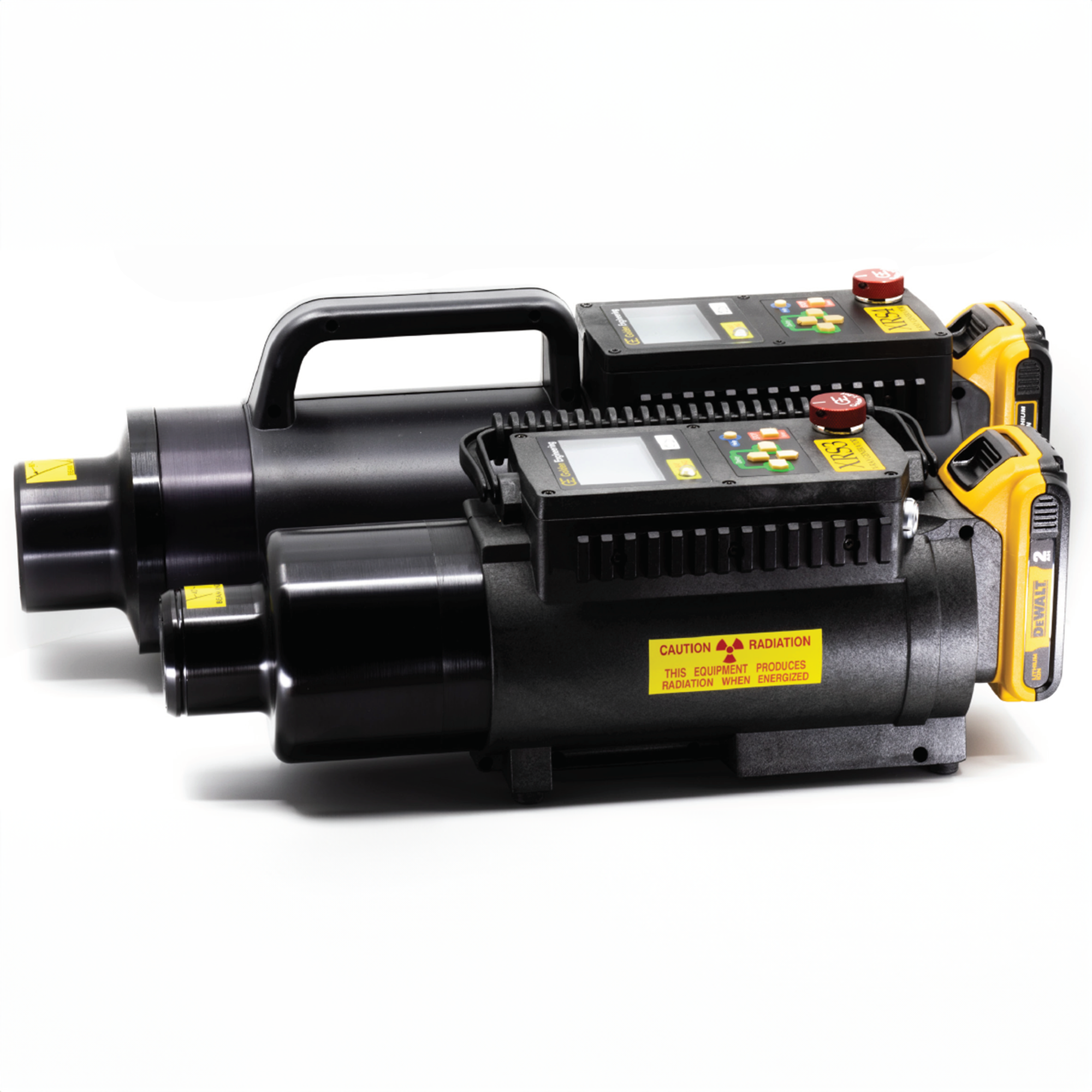

XRS3 20V GFX

The XRS3 is a 270 kV, battery powered, pulsed X-ray generator used in security and light industrial applications.  Golden Engineering introduced the XRS3 in 2001 for applications that require greater penetration than the XR150 or XR200.  The XRS3 penetrates up to one inch of steel when used with various digital imaging systems.

The XRS3 is our most versatile unit because it provides exceptional penetrating ability in a compact package.  The compact design features a battery pack, sturdy glass tube, high voltage head, and electronic controls a single package that weighs less than 13 pounds.  Operators can acquire spare battery packs at their convenience because the XRS3 is powered by the same  commercially available battery packs that power DeWalt cordless tools.  The XRS3 shares the same electronic controls and battery as the XR200 which enhances the versatility of both models.

The XRS3 has proven it can withstand extreme environments including artic and desert conditions.  The XRS3 is compatible with numerous digital imaging systems to make a powerful and highly portable X-ray system.


Pulsed X-ray Advantages
Penetrating power in a small container
Utilitarian design - DeWalt battery, tripod mounts, picatinny rail, removable top plate
Lightweight - less than 20 lbs
Safety - no radioactive material, minimal leakage, short exposure time
Easy to use - One input variable



All-New Graphic Display

• Larger text and graphics
• Viewable in direct sunlight
• Colored text and backlight
• Extended temperature range
• Help button – access on-board context-sensitive help
• QR Code - access additional information online






  Integrated Arca Swiss tripod mount
